CanLFP 4.5mm Proximal Medial Tibial T-Plate

Get In Touch With a Sales Consultant
Customized Products

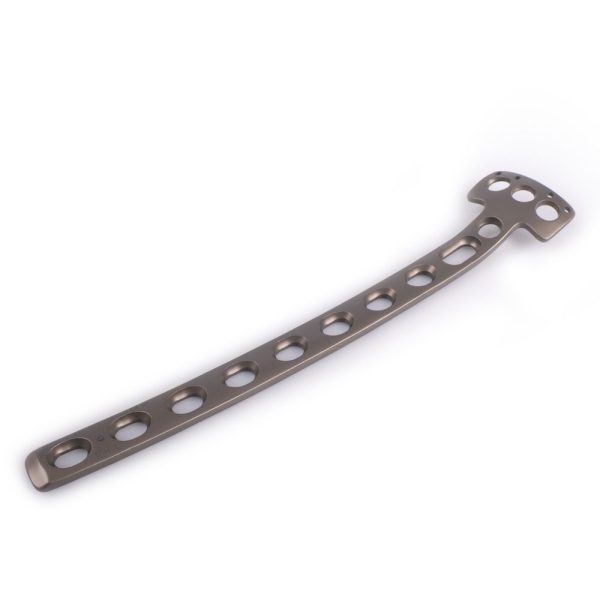

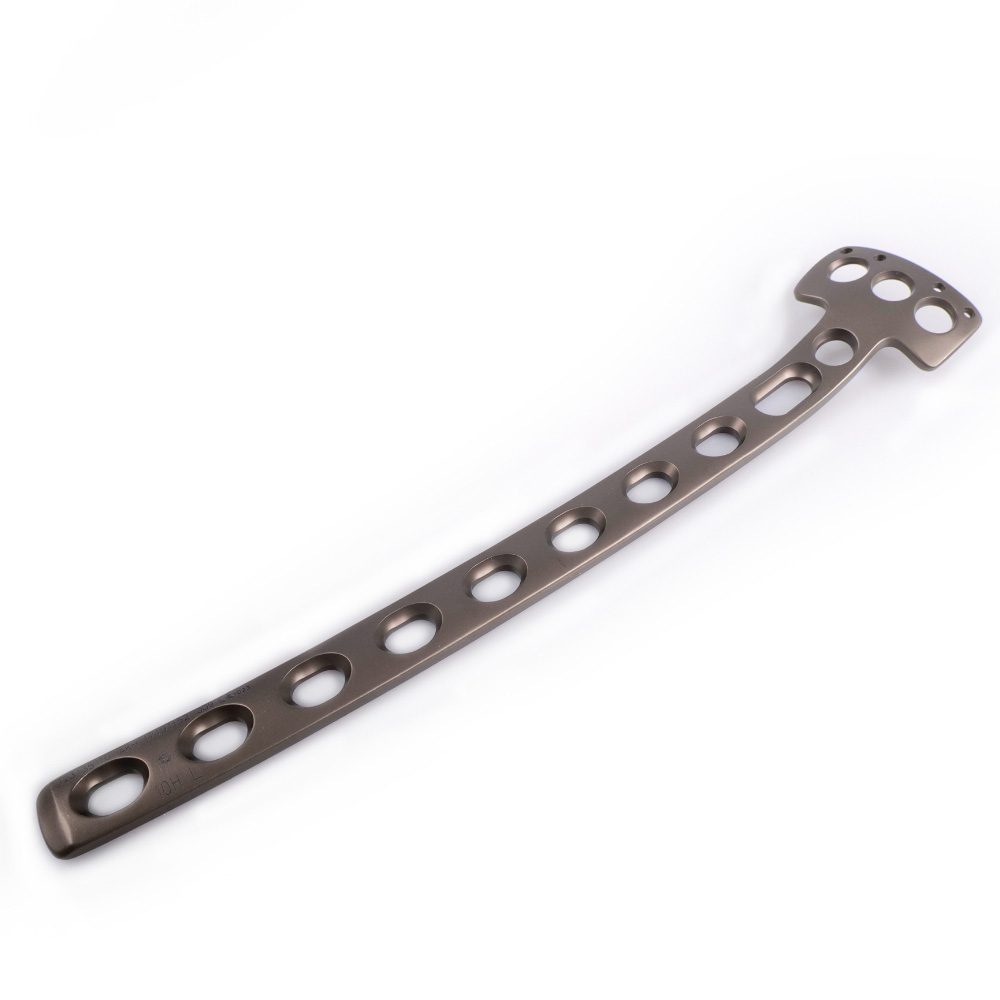

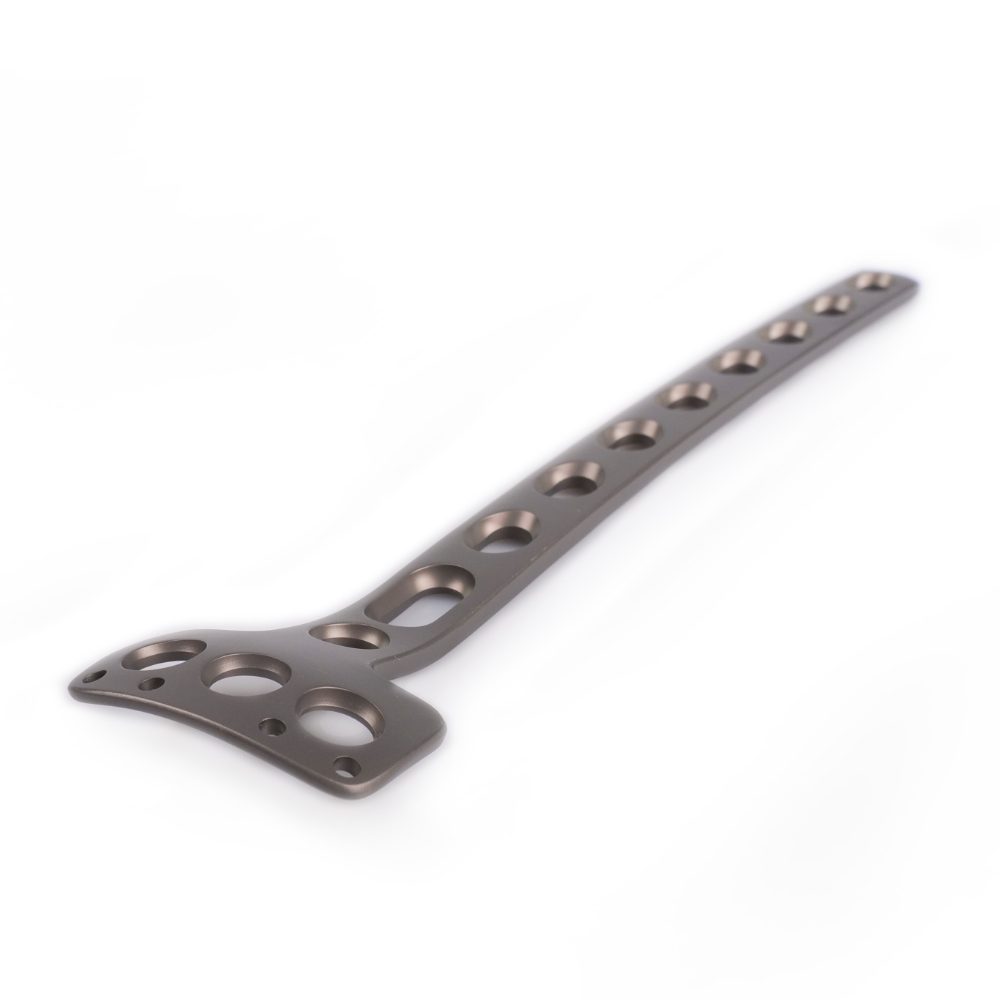

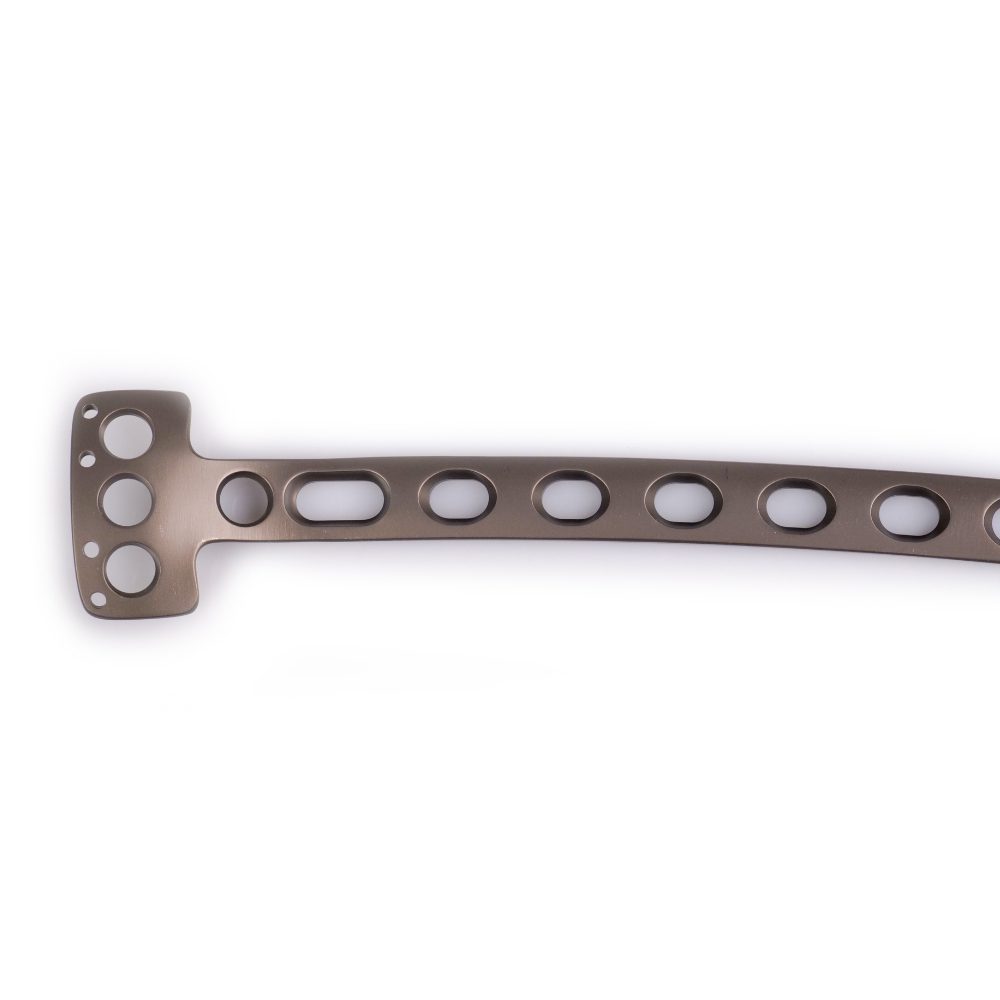

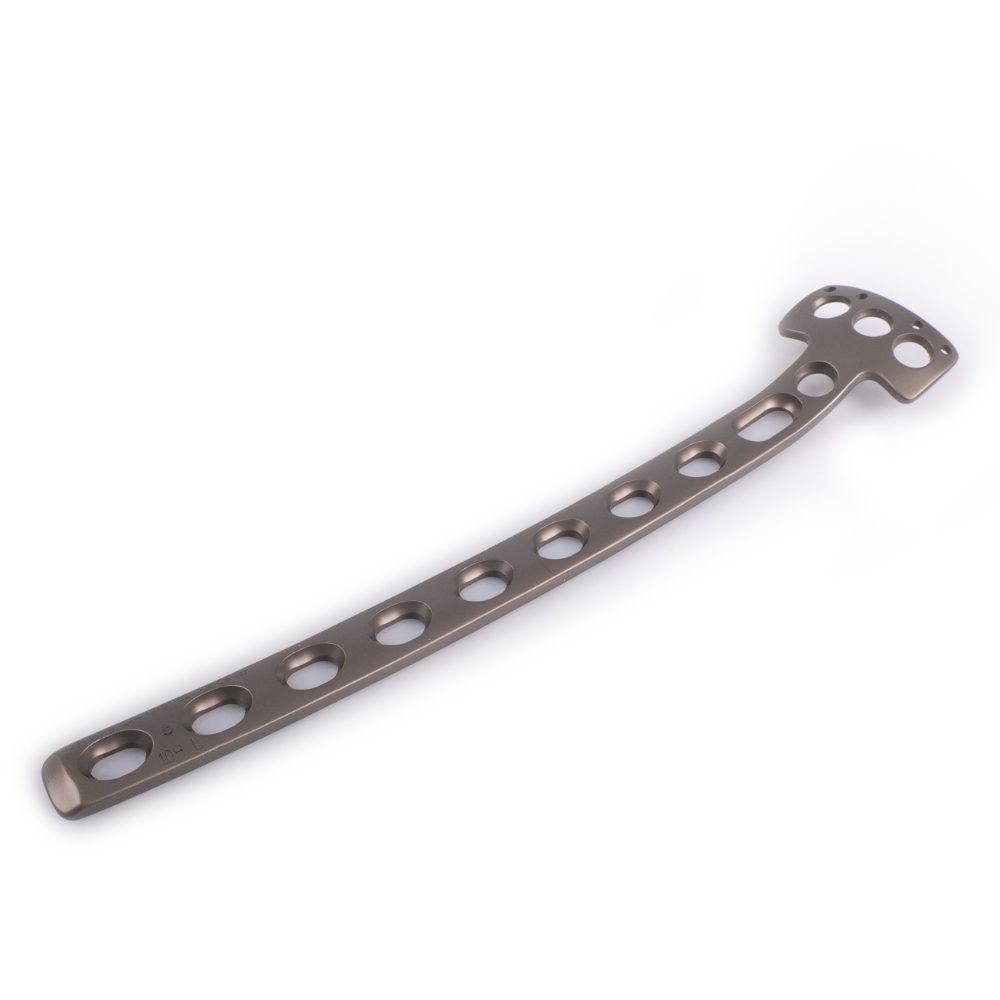

CanLFP 4.5mm Proximal Medial Tibial T-Plate is a type of orthopedic implant designed for the fixation of proximal medial tibial fractures. This locking plate is part of Canwell’s Fragment Plating System and is made of medical-grade titanium alloy, which provides excellent strength and durability.

One of the main features of this plate is its anatomical design, which is highly matched to the anatomy of the proximal medial tibia. The plate has a T-shape that fits the bone contour and provides optimal stability and support. Additionally, the plate has multiple screw holes, including locking holes, to allow for flexible screw placement and fixation.

CanLFP 4.5mm Proximal Medial Tibial T-Plate is suitable for the fixation of a wide range of proximal medial tibial fractures, including intra-articular and extra-articular fractures, as well as fractures of the tibial plateau. The plate can also be used for tibial osteotomies and for the treatment of nonunions and malunions.

The plate is designed for use with 4.5mm locking screws or 4.5mm cortical bone screws, which provides excellent compression and fixation. The locking screws are inserted through the locking holes on the plate and are designed to lock into place, providing a stable construct that can resist both axial and torsional loads.

One of the advantages of this plate is its low profile design, which helps to reduce the risk of soft tissue irritation and complications. The plate also has a smooth surface finish, which reduces the risk of stress risers and fatigue failures.

Overall, CanLFP 4.5mm Proximal Medial Tibial T-Plate is a reliable and effective orthopedic implant that provides optimal stability and support for the treatment of proximal medial tibial fractures. Its anatomical design, multiple screw holes, and locking screw technology make it a versatile and flexible option for surgeons.

CanLFP 4.5mm Proximal Medial Tibial T-Plate 4Holes 81mm Left Ti PC 123135104
CanLFP 4.5mm Proximal Medial Tibial T-Plate 6Holes 113mm Left Ti PC 123135106
CanLFP 4.5mm Proximal Medial Tibial T-Plate 8Holes 145mm Left Ti PC 123135108
CanLFP 4.5mm Proximal Medial Tibial T-Plate 10Holes 177mm Left Ti PC 123135110
CanLFP 4.5mm Proximal Medial Tibial T-Plate 4Holes 81mm Right Ti PC 123135204
CanLFP 4.5mm Proximal Medial Tibial T-Plate 6Holes 113mm Right Ti PC 123135206
CanLFP 4.5mm Proximal Medial Tibial T-Plate 8Holes 145mm Right Ti PC 123135208
CanLFP 4.5mm Proximal Medial Tibial T-Plate 10Holes 177mm Right Ti PC 123135210
Material

Titanium

Specification

4Holes 81mm Left
6Holes 113mm Left
8Holes 145mm Left
10Holes 177mm Left
4Holes 81mm Right
6Holes 113mm Right
8Holes 145mm Right
10Holes 177mm Right

FAQ

Q: Are you trading company or manufacturer?
A: We are manufacturer since 1994. Our location is in Jinhua, Zhejiang Province, East China. 2 hours by high-speed train from Shanghai.

Q: Do you have training course for your product?
A: Yes, we have monthly training workshop held by our product specialist for our distributor, also we welcome our distributor to held workshop locally.

Q: What is your product range?
A: We mainly produce orthopedic implants and instrument for trauma and spine, we also involve in sports medicine. Currently our R&D team is developing
implants for oral and maxillofacial surgery, will be available soon.

Q: How is the product quality? Do you have any Certificate? What is your regions of sales?
A: Our products are approved by CE/ISO13485/US FDA. At present our main overseas markets are in Asia, South America and Europe

Q: Are your seeking for regional distribution?
A: Yes we are looking for and welcome distribution. Please contact us for discussion if you are interested to become our distributor.

Q: How do you transport the goods? How long is delivery time?
A: We use DHL/FedEx for the delivery. Generally 7-15 days if stock available and 30-45 days if regular production needed.
Shipping time depending on order quantity, product type, and other order factors and requirements.

Q: It’s samples available? Free or extra?
A: We can accept sample order. With an extra price.

Q: Do you have any OEM service?
A: We can offer OEM service. Products can be made-to-order and with special requirements.

Q: Does your company has Quality Assurance System?
A:Canwell has established a complete Quality Assurance System to continuously fulfill the requirements according to ISO9001, 13485, QSR820, CE.
Ranging from material procurement to design development and automated production processes.
