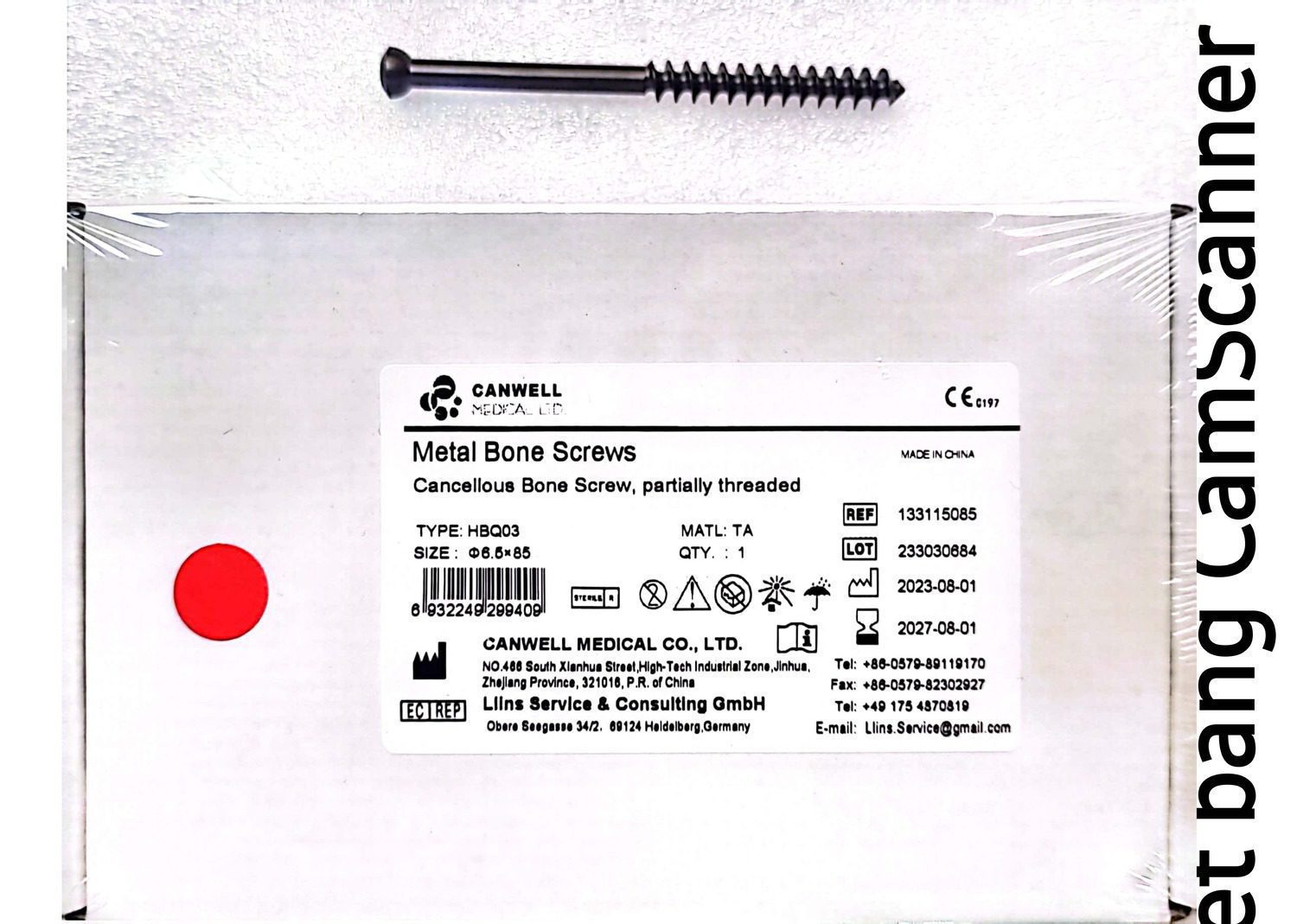

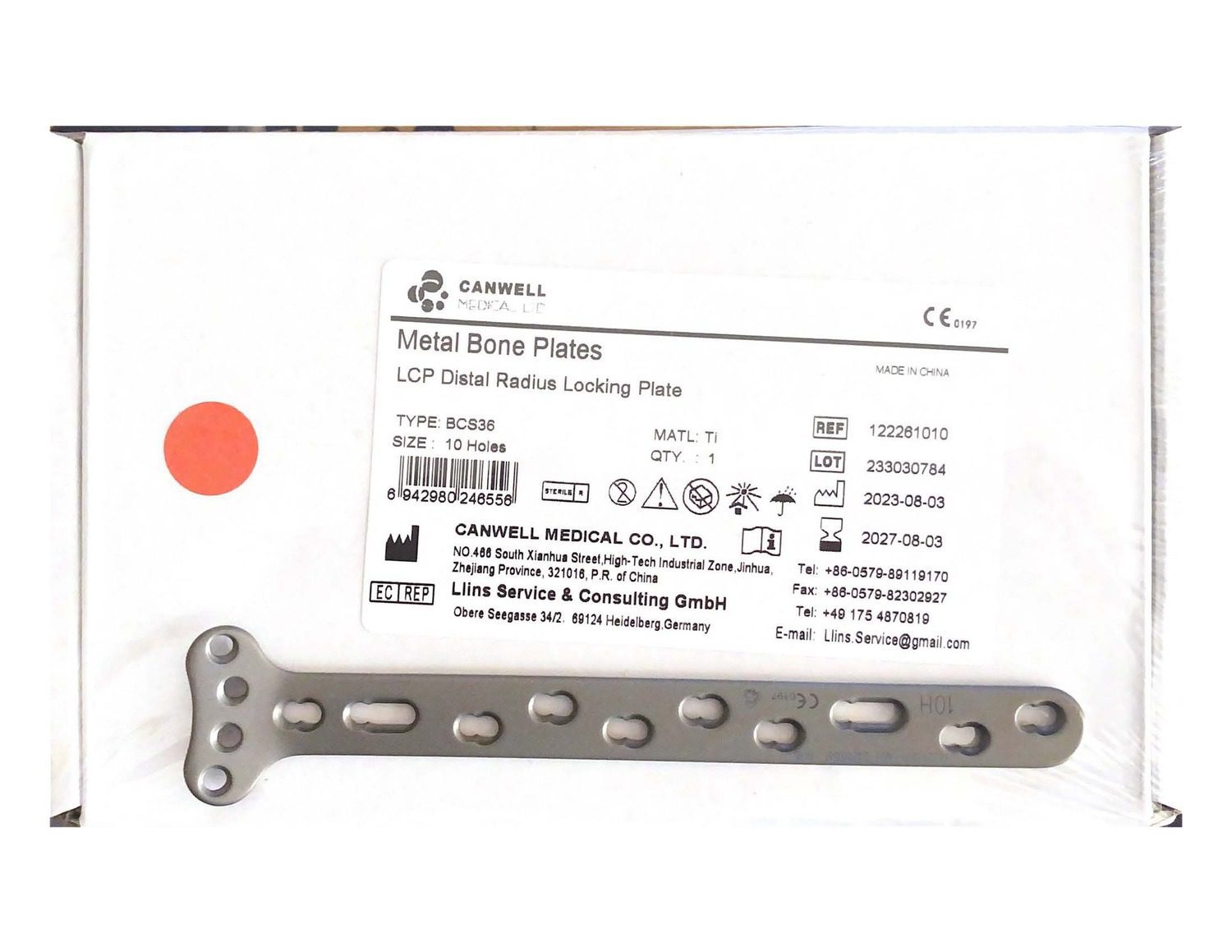

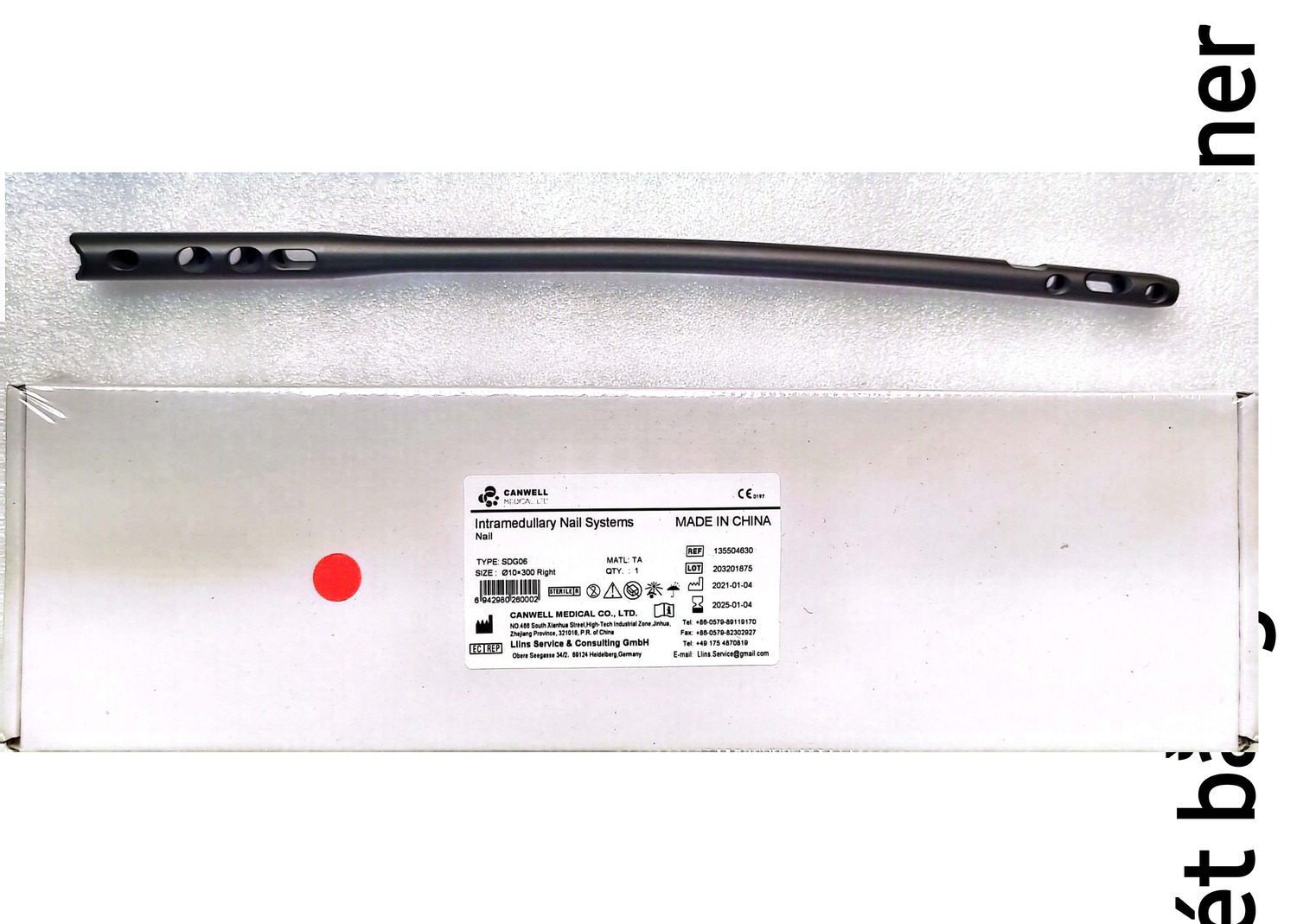

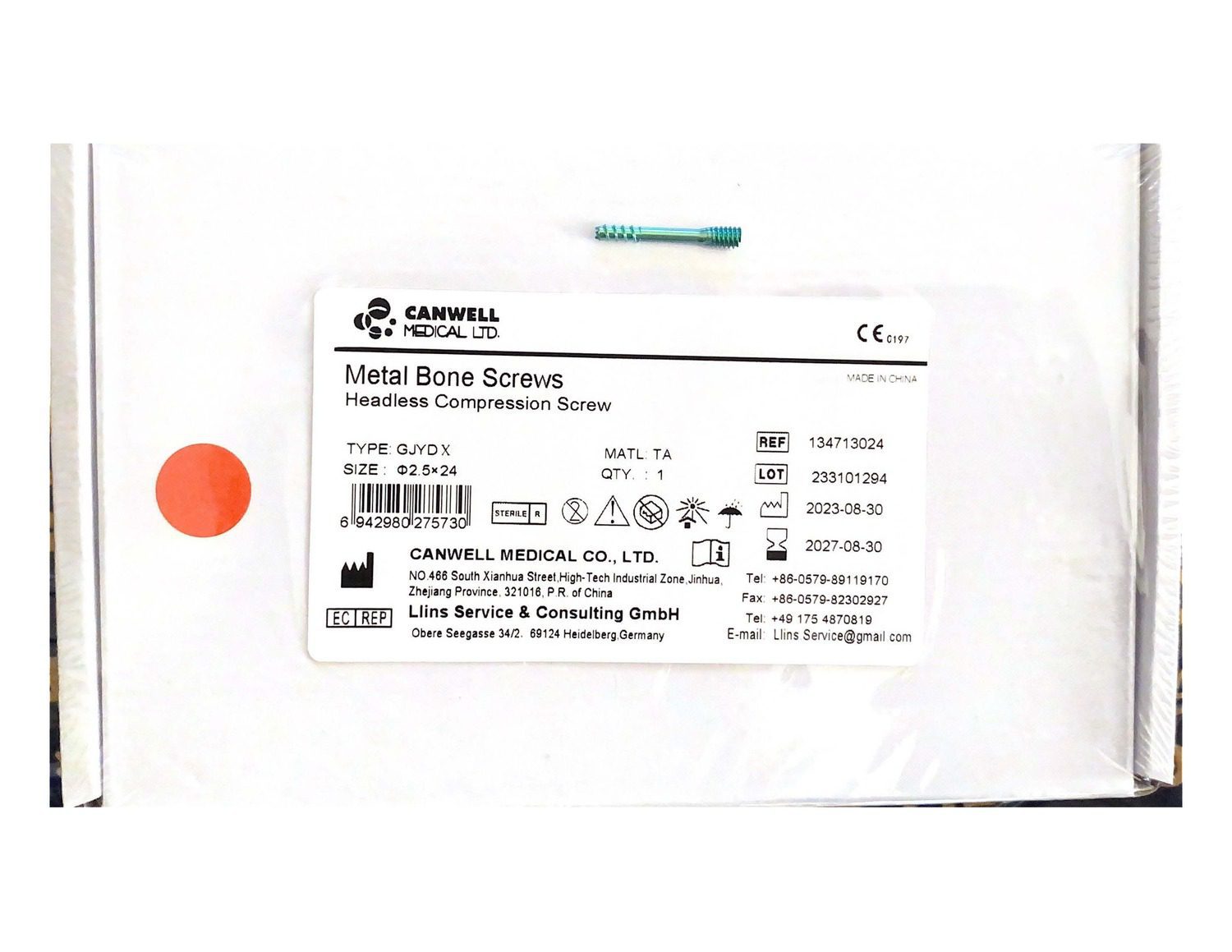

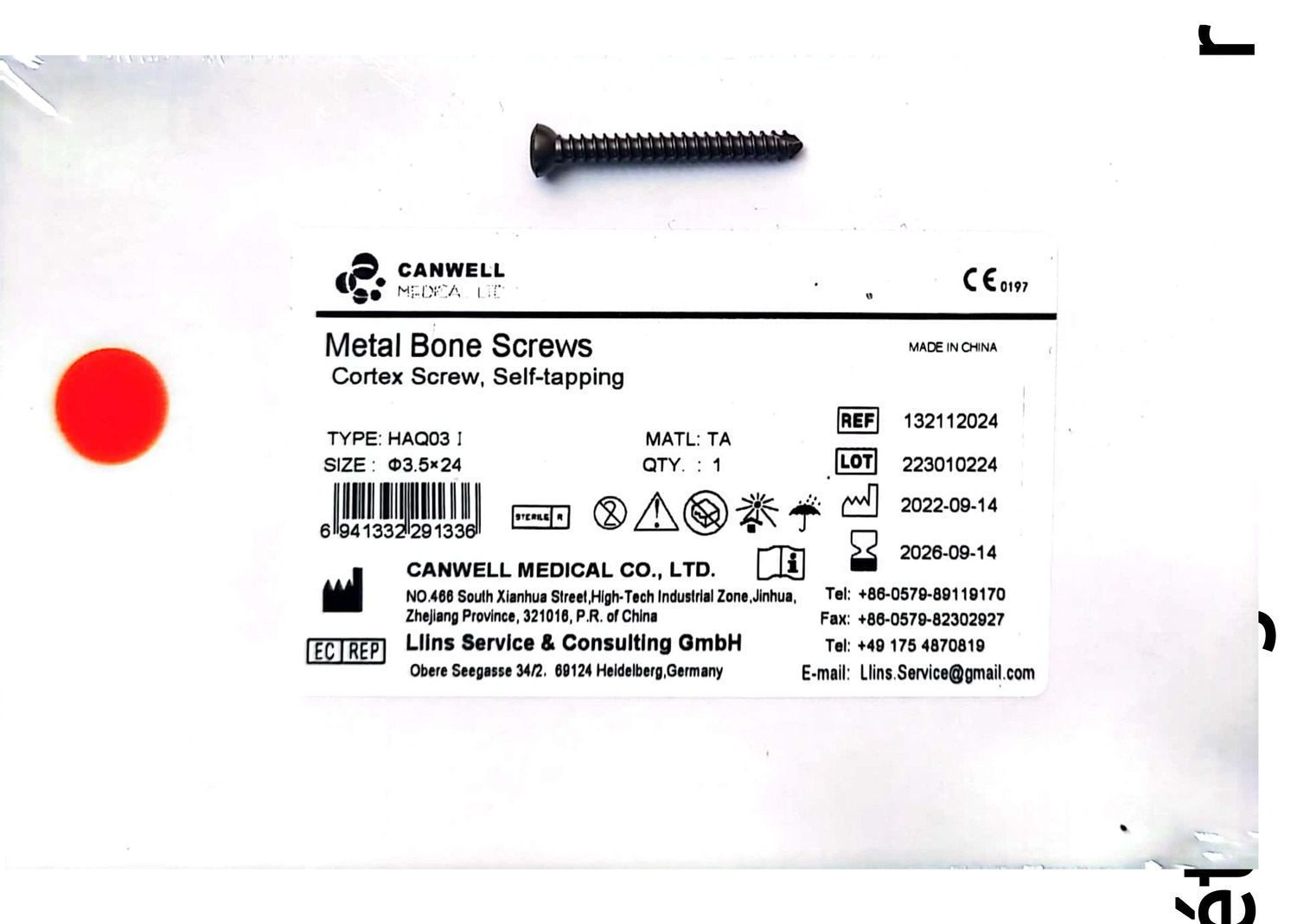

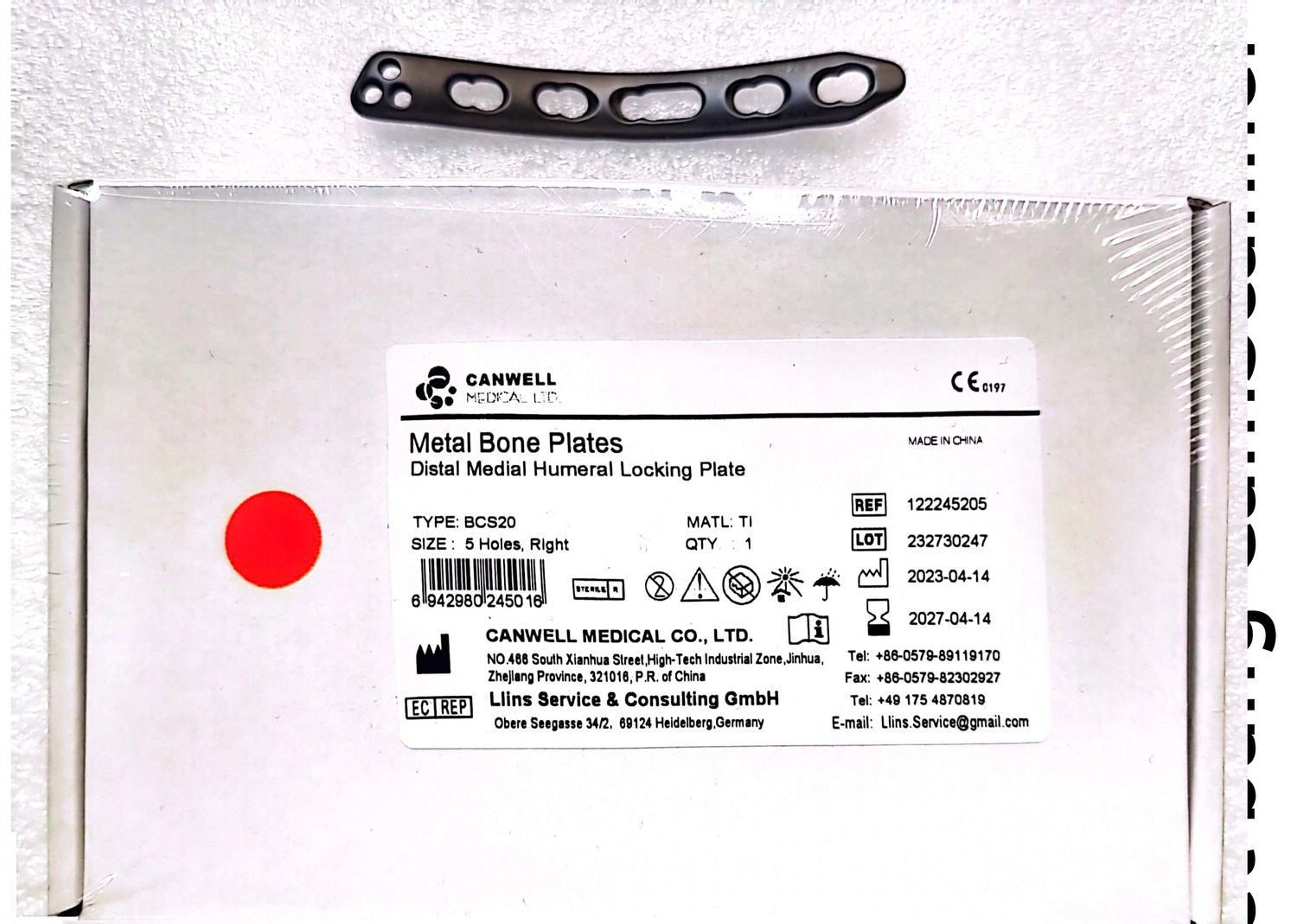

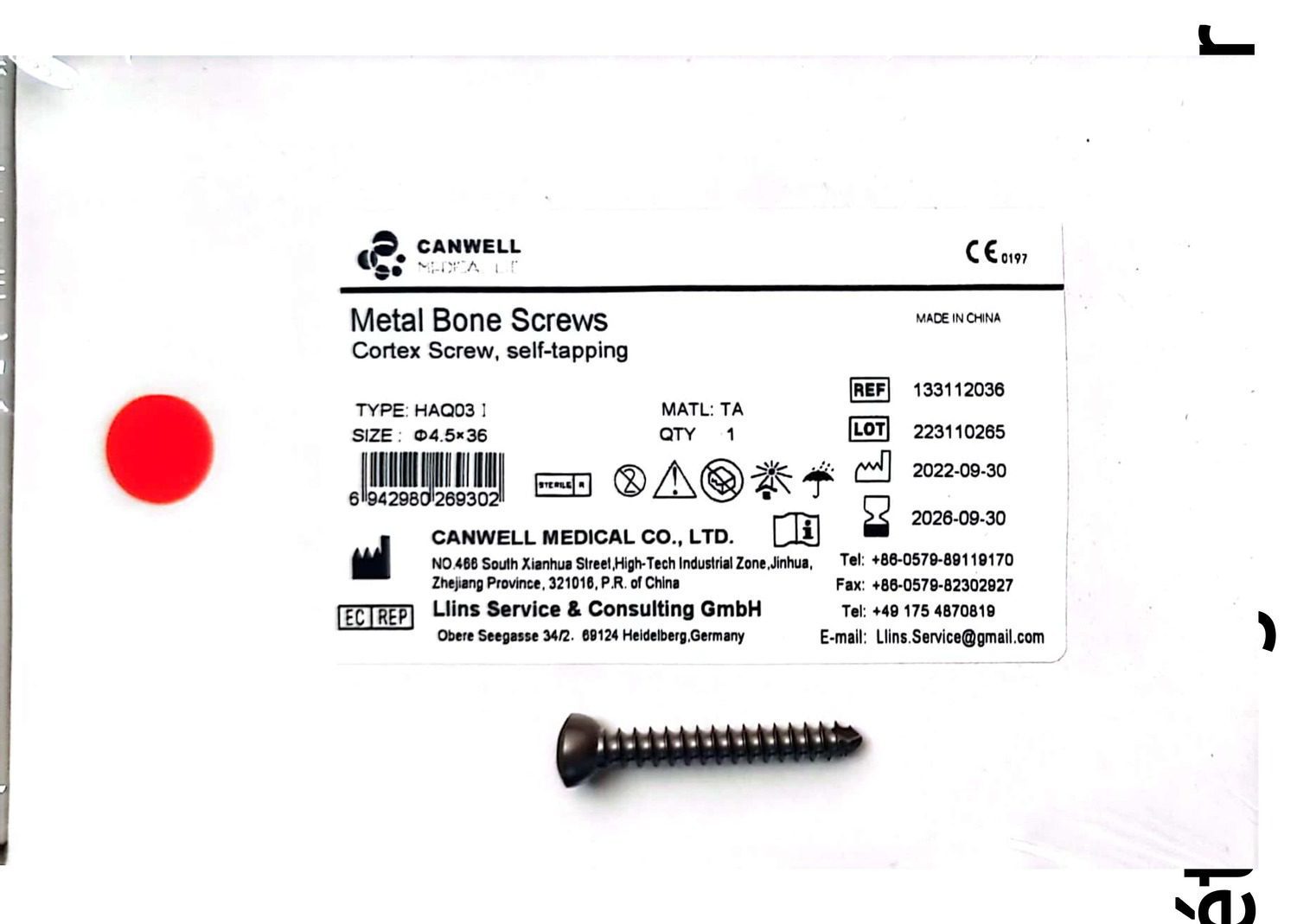

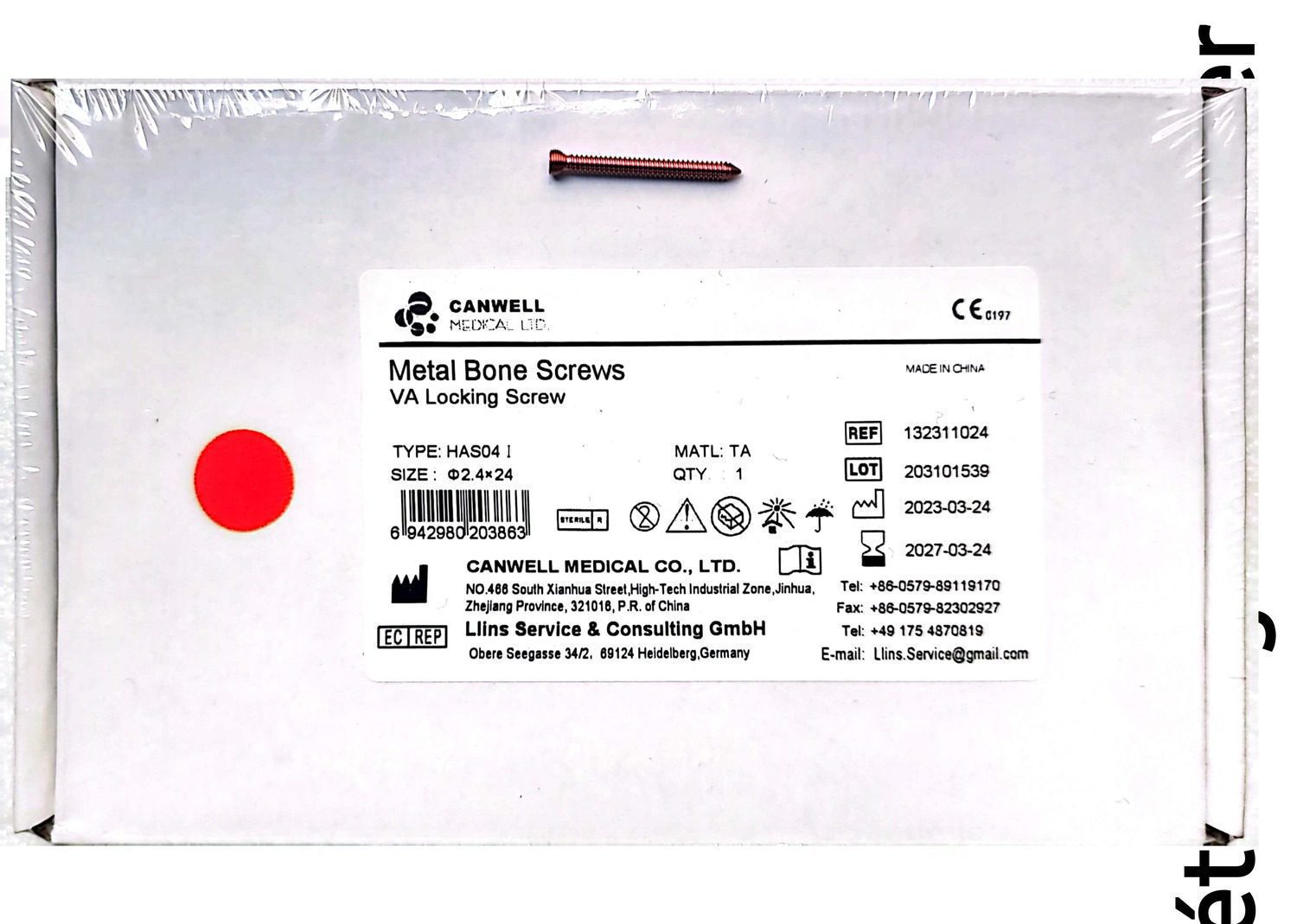

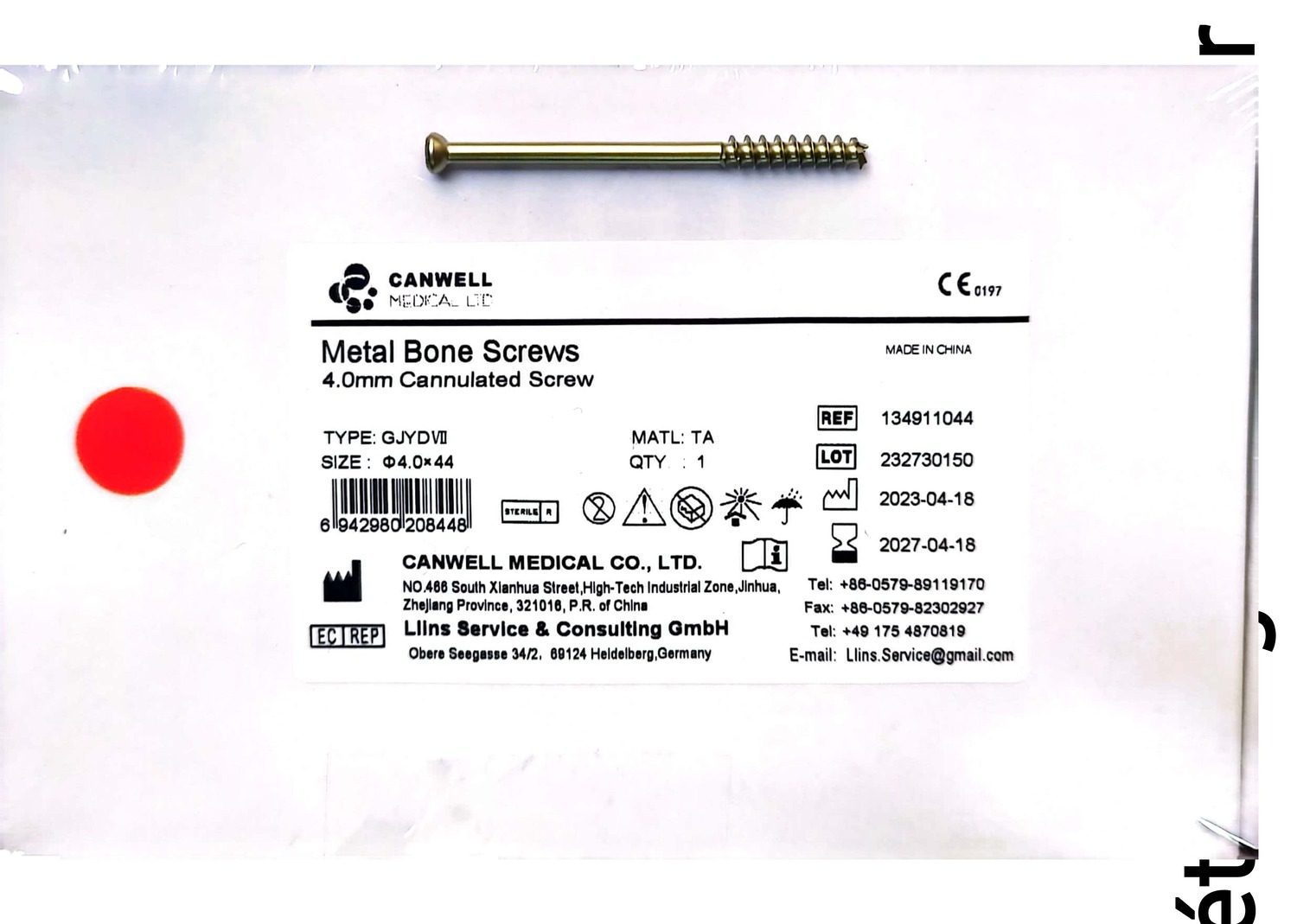

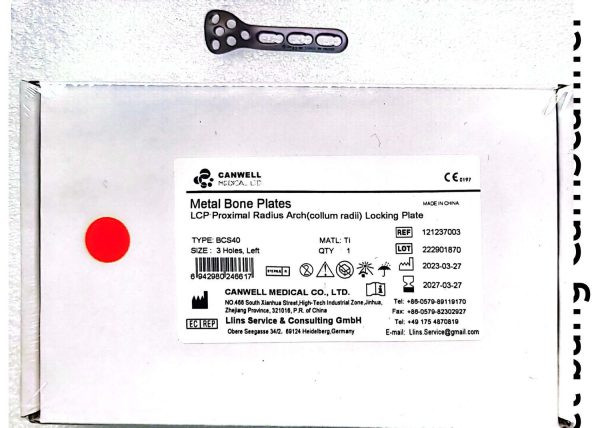

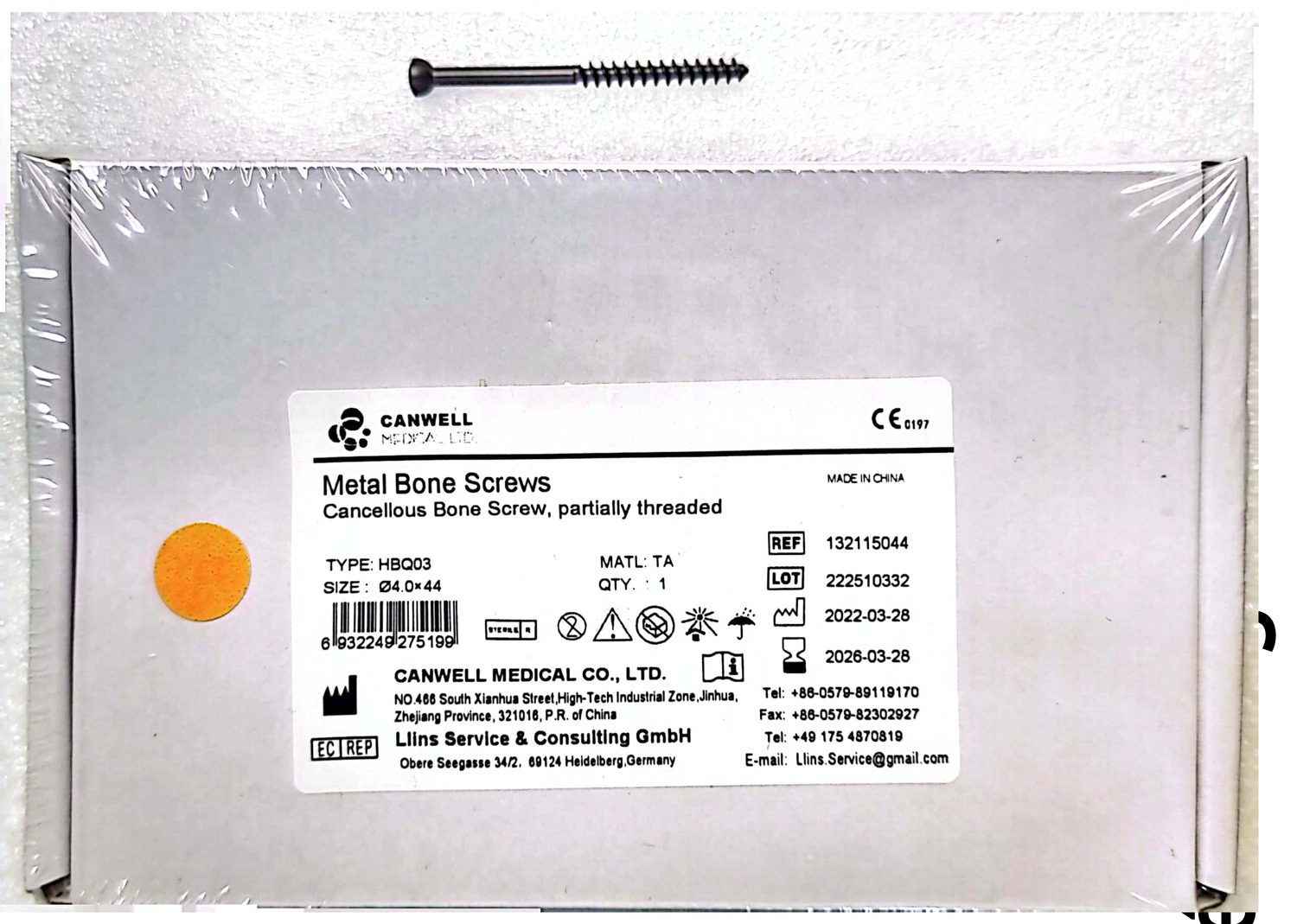

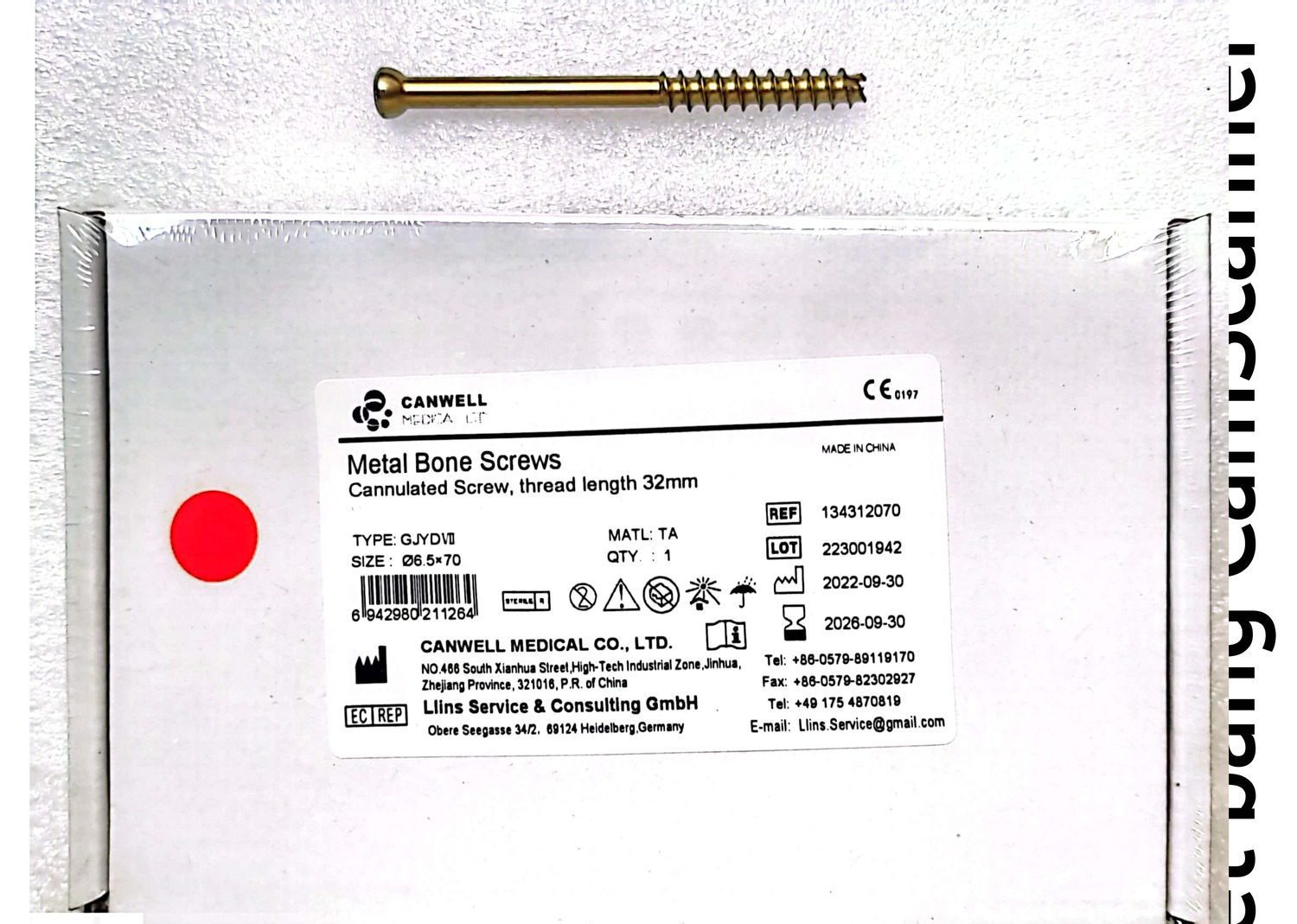

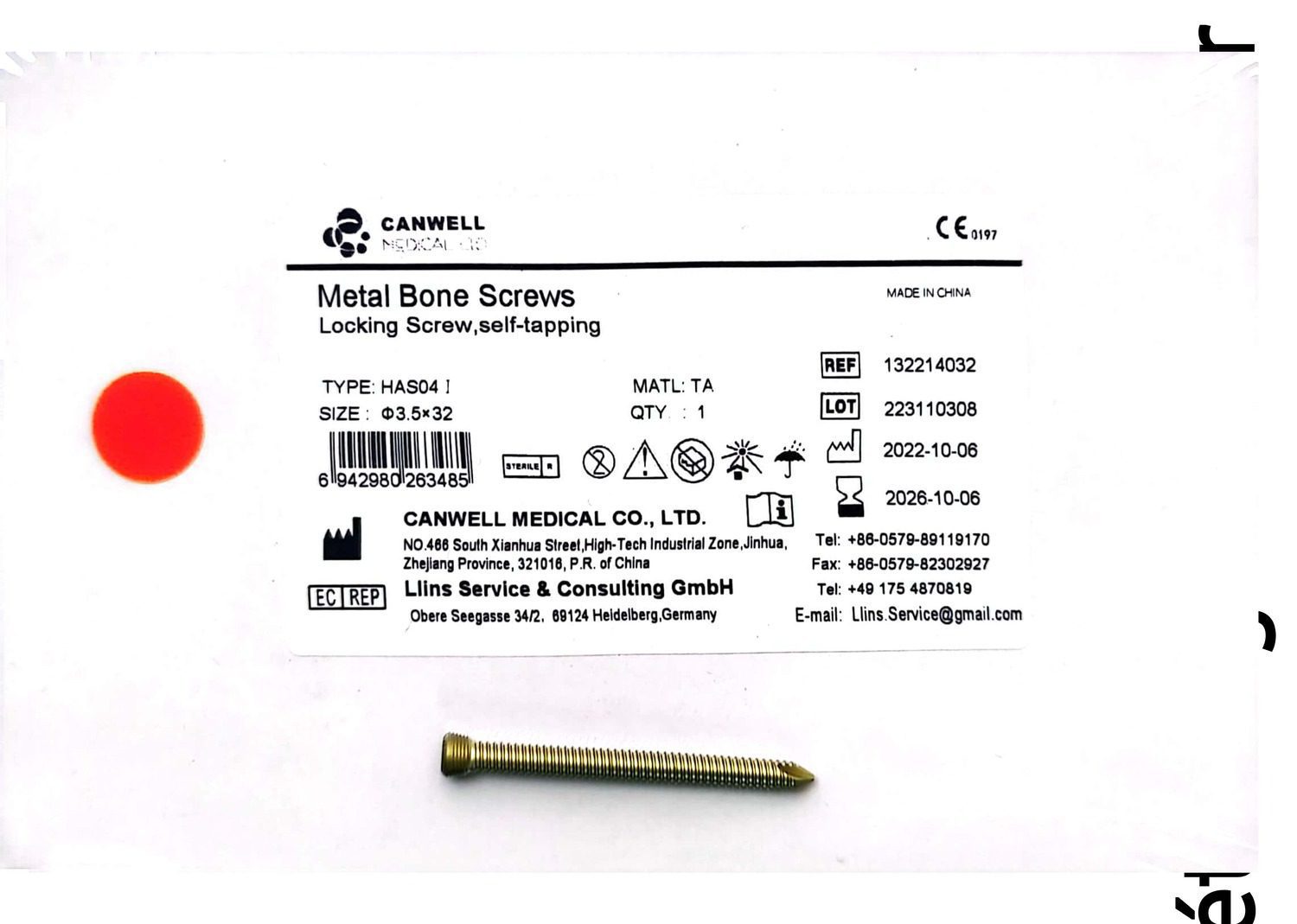

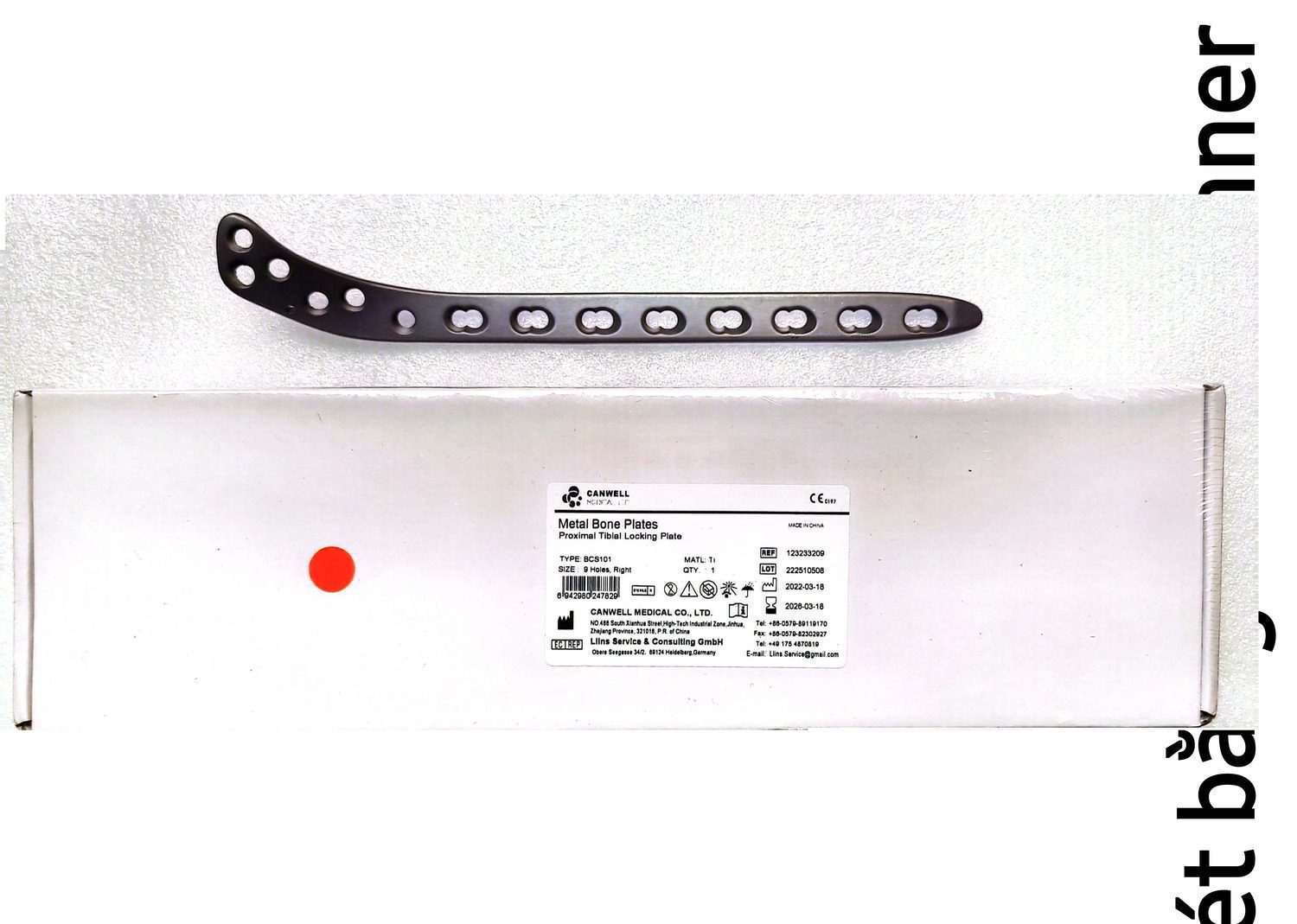

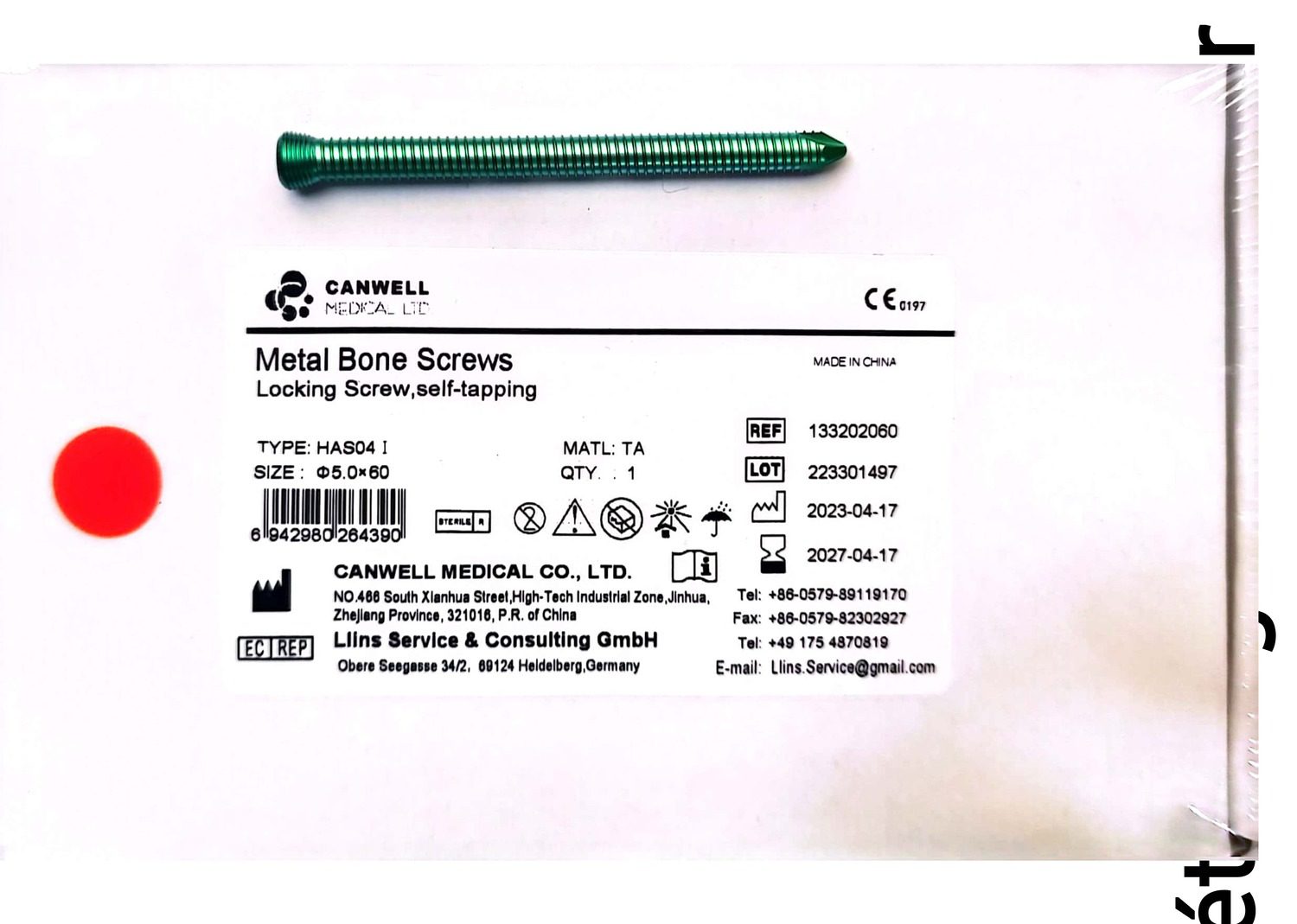

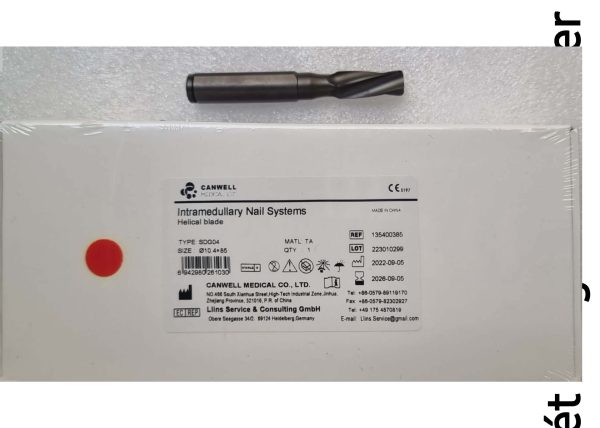

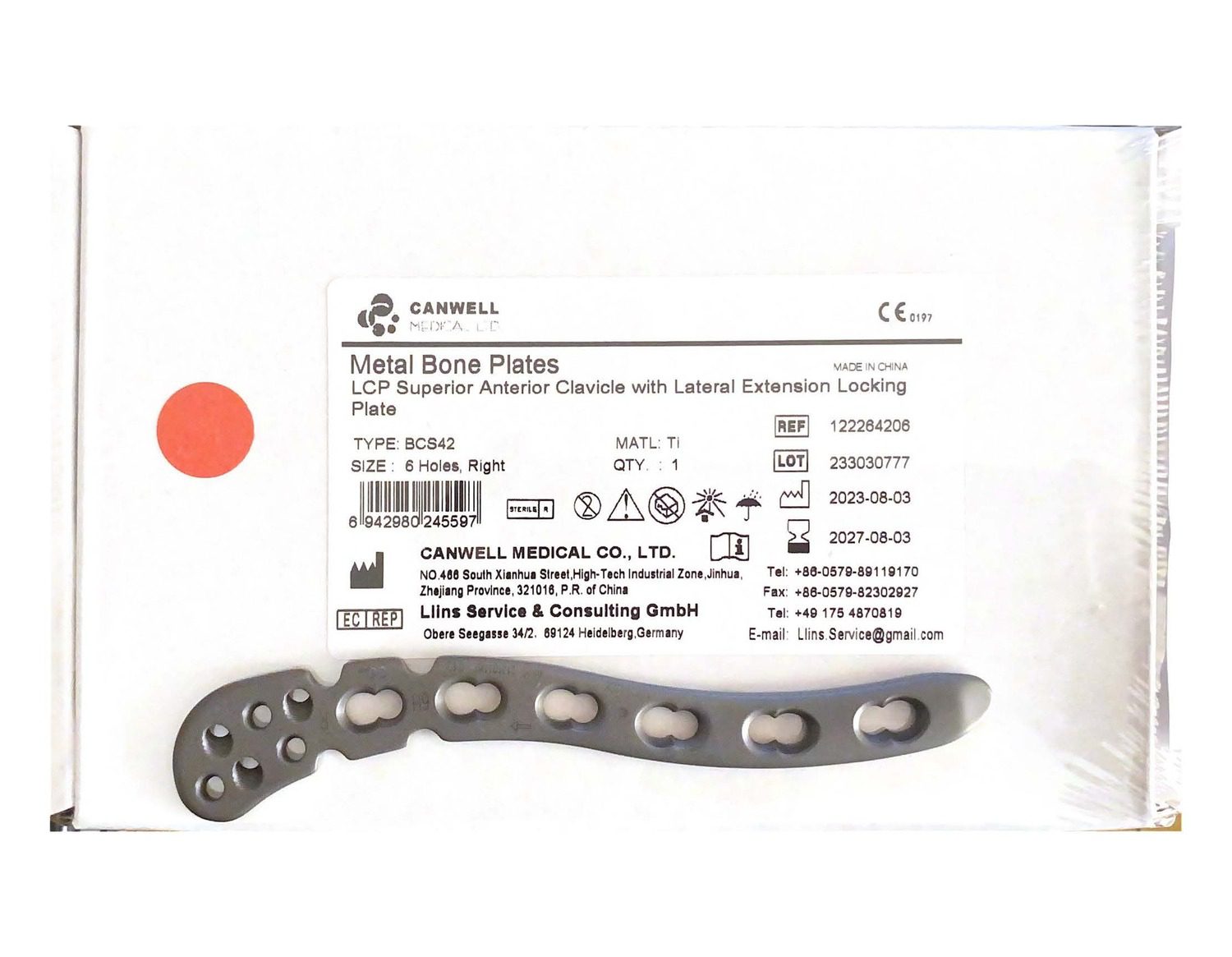

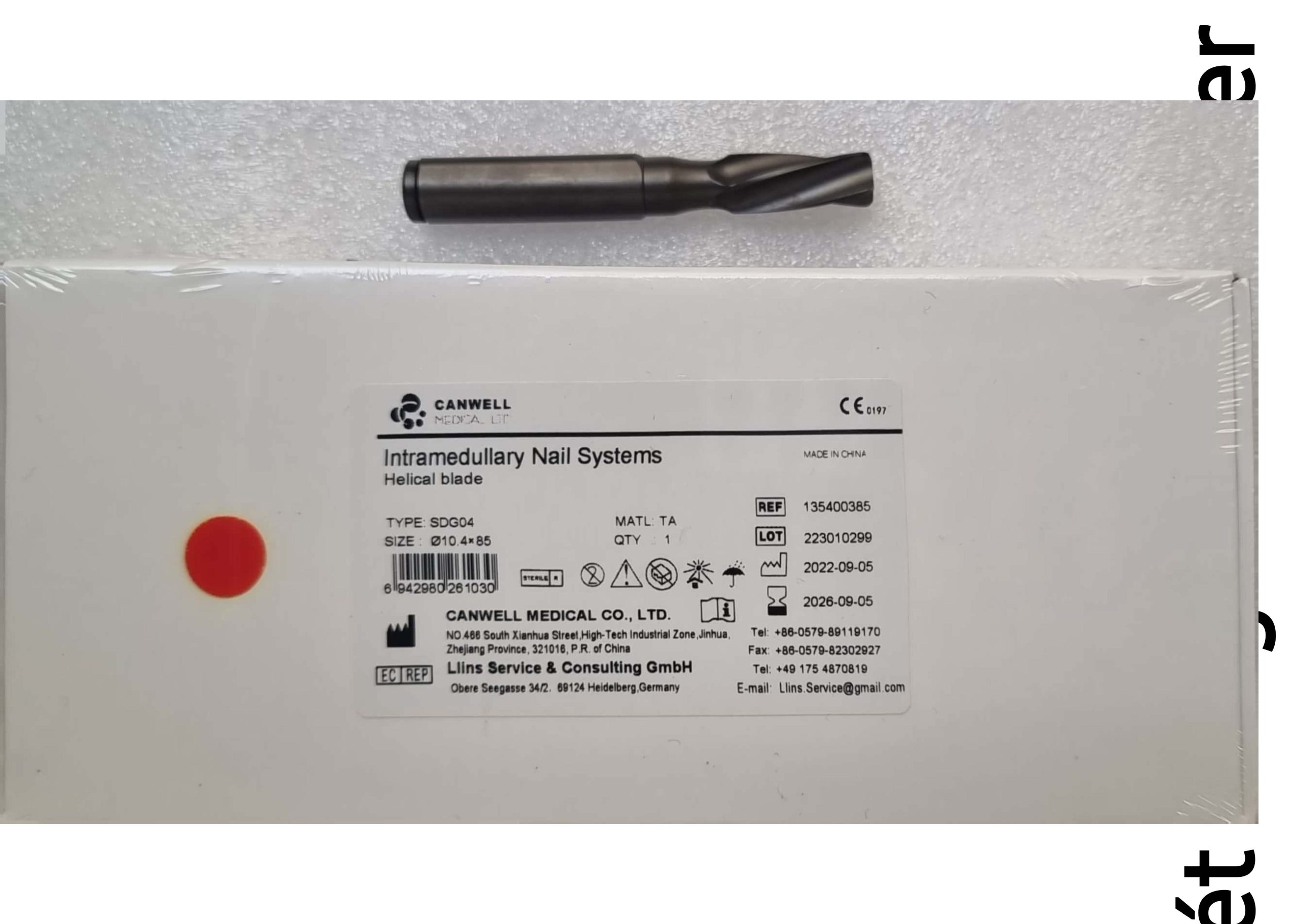

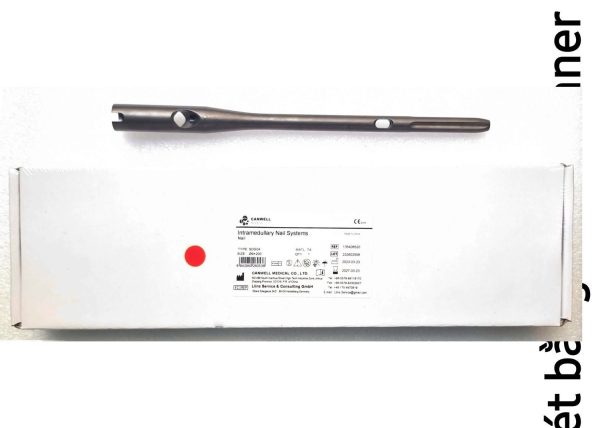

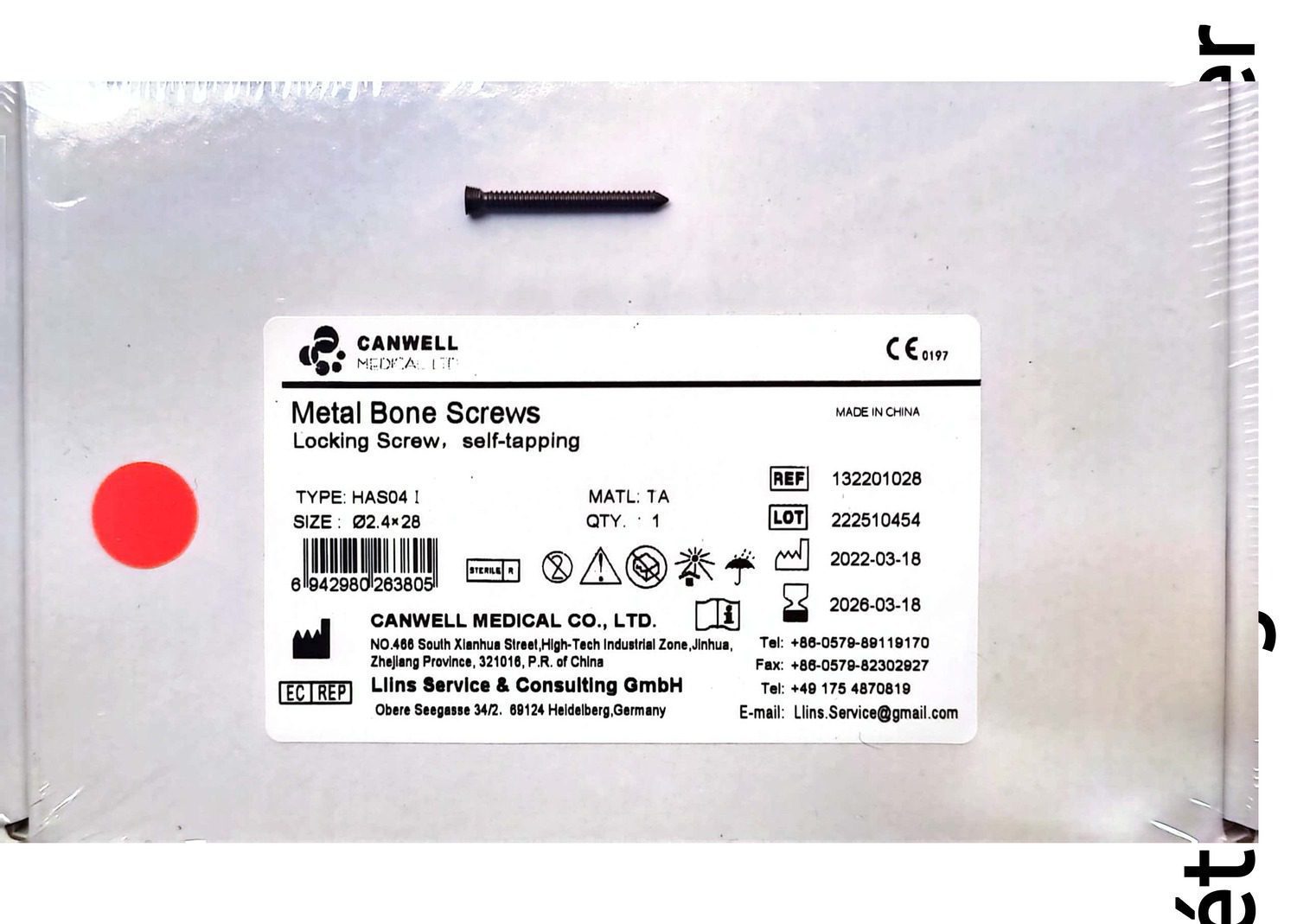

We provide sterile packages, with products of Metal Bone Screws, Metal Bone Plates, Intramedullary Nail System and Cannulated Screw System and etc. The products are sterilized by 60Coγ-ray irradiation, and meet the requirements of sterility (SAL10-6).
The charaterization standard and composition of the raw material of the implants are listed in the tables below:
| Periodic table of elements |
| N-Nitrogen C-Carbon H-Hydrogenium Fe-Iron O-Oxygen AI-Aluminium V-Vanadium |
| International Standard | |
| ASTM F67 | TA2/TA3 |
| ASTM F1472 | TC4 |
| TA3 Chemical Composition | |
| N, Max. （percentage %） |
0.05 |
| C, Max. （percentage %） |
0.08 |
| H, Max. （percentage %） |
0.008 |
| Fe, Max. （percentage %） |
0.3 |
| O, Max. （percentage %） |
0.35 |
| TC4 Chemical Composition | |
| N, Max. （percentage %） |
0.05 |
| C, Max. （percentage %） |
0.08 |
| H, Max. （percentage %） |
0.008 |
| Fe, Max. （percentage %） |
0.3 |
| O, Max. （percentage %） |
0.2 |
| Al （percentage %） |
5.5-6.75 |
| V （percentage %） |
3.5-4.5 |
| TA2 Chemical Composition | |
| N, Max. （percentage %） |
0.03 |
| C, Max. （percentage %） |
0.08 |
| H, Max. （percentage %） |
0.008 |
| Fe, Max. （percentage %） |
0.3 |
| O, Max. （percentage %） |
0.25 |
| TA3 | TA2 | TC4 | |
| tensile strength Rm/MPa | ≥500 | ≥400 | ≥930 |
| Specified non-proportional tensile strength Rp0.2/MPa | ≥380 | ≥275 | ≥860 |
| elongation after break A/% | ≥20 | ≥12 | ≥10 |
| rate of reduction in area Z% | / | / | / |
Product List
| Type | P.N. | Description | Specification | Material |
| CanMFP | 121133004 | 2.0mm T-Plate(head 3 holes) | 4 Holes | Ti |
| CanMFP | 121133005 | 2.0mm T-Plate(head 3 holes) | 5 Holes | Ti |
| CanMFP | 121133006 | 2.0mm T-Plate(head 3 holes) | 6 Holes | Ti |
| CanMFP | 121133007 | 2.0mm T-Plate(head 3 holes) | 7 Holes | Ti |
| CanMFP | 121133008 | 2.0mm T-Plate(head 3 holes) | 8 Holes | Ti |
| CanMFP | 121121002 | 2.0mm Tubular Plate | 2 Holes | Ti |
| CanMFP | 121121003 | 2.0mm Tubular Plate | 3 Holes | Ti |
| CanMFP | 121121004 | 2.0mm Tubular Plate | 4 Holes | Ti |
| CanMFP | 121121005 | 2.0mm Tubular Plate | 5 Holes | Ti |
| CanMFP | 121121006 | 2.0mm Tubular Plate | 6 Holes | Ti |
| CanMFP | 121121007 | 2.0mm Tubular Plate | 7 Holes | Ti |
| CanMFP | 121130102 | 2.0mm T-Plate | 2 Holes | Ti |
| CanMFP | 121130103 | 2.0mm T-Plate | 3 Holes | Ti |
| CanMFP | 121130104 | 2.0mm T-Plate | 4 Holes | Ti |
| CanMFP | 121130105 | 2.0mm T-Plate | 5 Holes | Ti |
| CanMFP | 121131004 | 2.0mm L-Plate | 4 Holes, Left | Ti |
| CanMFP | 121131005 | 2.0mm L-Plate | 5 Holes, Left | Ti |
| CanMFP | 121132004 | 2.0mm L-Plate, Oblique-angled | 4 Holes, Left | Ti |
| CanMFP | 121132005 | 2.0mm L-Plate, Oblique-angled | 5 Holes, Left | Ti |
| CanMLP | 121234104 | 2.0mm LCP T-Plate | 4 Holes | Ti |
| CanMLP | 121234105 | 2.0mm LCP T-Plate | 5 Holes | Ti |
| CanMLP | 121234106 | 2.0mm LCP T-Plate | 6 Holes | Ti |
| CanMLP | 121234107 | 2.0mm LCP T-Plate | 7 Holes | Ti |
| CanMLP | 121233104 | 2.0mm LCP Y-Plate | 4 Holes | Ti |
| CanMLP | 121233105 | 2.0mm LCP Y-Plate | 5 Holes | Ti |
| CanMLP | 121233106 | 2.0mm LCP Y-Plate | 6 Holes | Ti |
| CanMLP | 121233107 | 2.0mm LCP Y-Plate | 7 Holes | Ti |
| CanMLP | 121224103 | 2.0mm LCP Condylar Plate | 3 Holes | Ti |
| CanMLP | 121224104 | 2.0mm LCP Condylar Plate | 4 Holes | Ti |
| CanMLP | 121224105 | 2.0mm LCP Condylar Plate | 5 Holes | Ti |
| CanMLP | 121224106 | 2.0mm LCP Condylar Plate | 6 Holes | Ti |
| CanMLP | 121224107 | 2.0mm LCP Condylar Plate | 7 Holes | Ti |
| CanMLP | 121222104 | 2.0mm LCP Locking Plate | 4Holes | Ti |
| CanMLP | 121222105 | 2.0mm LCP Locking Plate | 5Holes | Ti |
| CanMLP | 121222106 | 2.0mm LCP Locking Plate | 6Holes | Ti |
| CanMLP | 121222107 | 2.0mm LCP Locking Plate | 7Holes | Ti |
| CanMLP | 121222108 | 2.0mm LCP Locking Plate | 8Holes | Ti |
| CanMLP | 121222110 | 2.0mm LCP Locking Plate | 10Holes | Ti |
| CanMLP | 121223112 | 2.0mm LCP Adaption Locking Plate | 12 Holes | Ti |
| CanSLP | 122220003 | 3.5mm LCP T-Plate, Right-angled( head 4holes) | 3 Holes | Ti |
| CanSLP | 122220004 | 3.5mm LCP T-Plate, Right-angled( head 4holes) | 4 Holes | Ti |
| CanSLP | 122220005 | 3.5mm LCP T-Plate, Right-angled( head 4holes) | 5 Holes | Ti |
| CanSLP | 122220006 | 3.5mm LCP T-Plate, Right-angled( head 4holes) | 6 Holes | Ti |
| CanSLP | 122221103 | 3.5mm LCP T-Plate, Oblique-angled( head 3holes) | 3 Holes, Left | Ti |
| CanSLP | 122221104 | 3.5mm LCP T-Plate, Oblique-angled( head 3holes) | 4 Holes, Left | Ti |
| CanSLP | 122221105 | 3.5mm LCP T-Plate, Oblique-angled( head 3holes) | 5 Holes, Left | Ti |

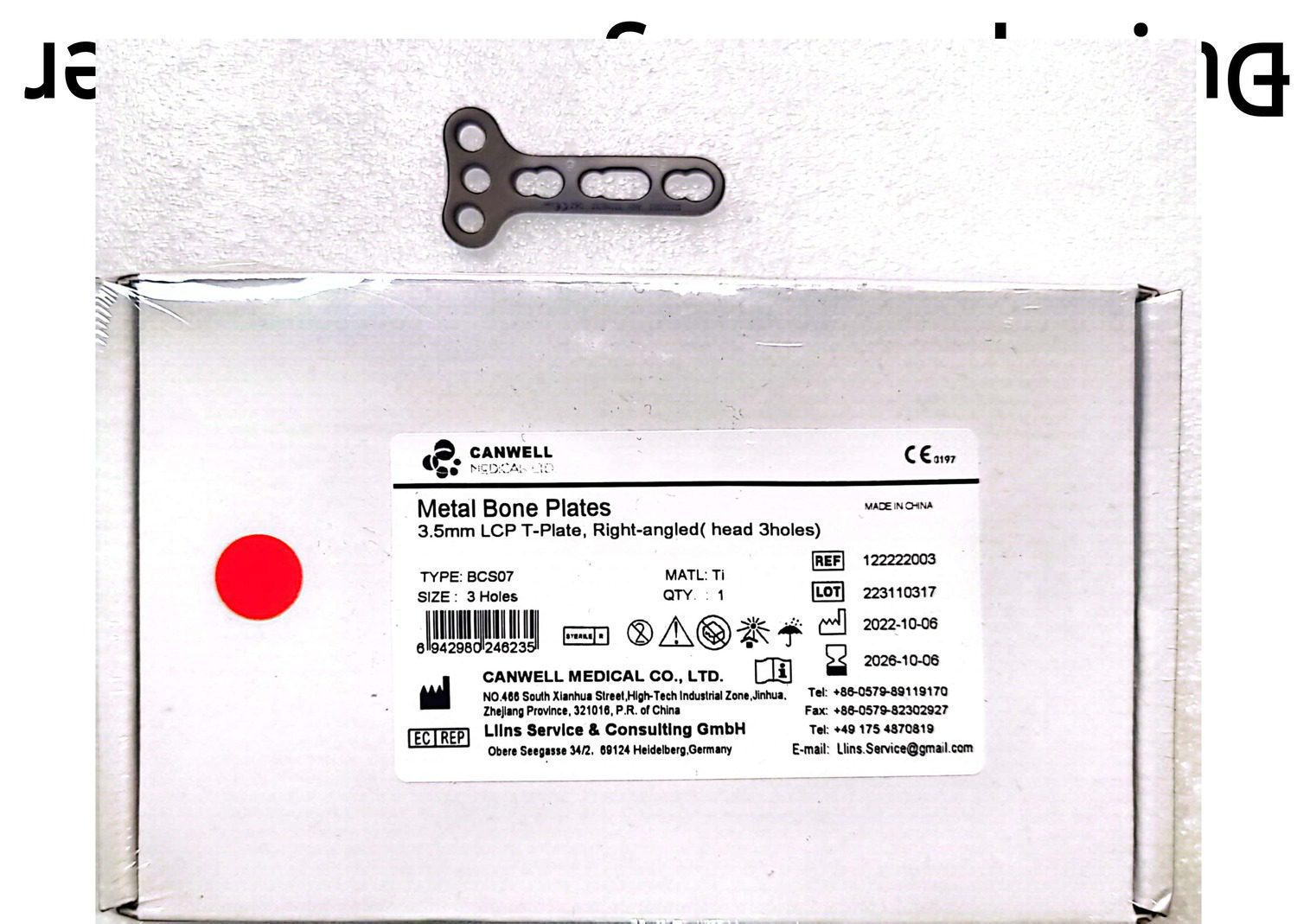

| CanSLP | 122222003 | 3.5mm LCP T-Plate, Right-angled( head 3holes) | 3 Holes | Ti |
| CanSLP | 122222004 | 3.5mm LCP T-Plate, Right-angled( head 3holes) | 4 Holes | Ti |
| CanSLP | 122222005 | 3.5mm LCP T-Plate, Right-angled( head 3holes) | 5 Holes | Ti |
| CanSLP | 122222006 | 3.5mm LCP T-Plate, Right-angled( head 3holes) | 6 Holes | Ti |

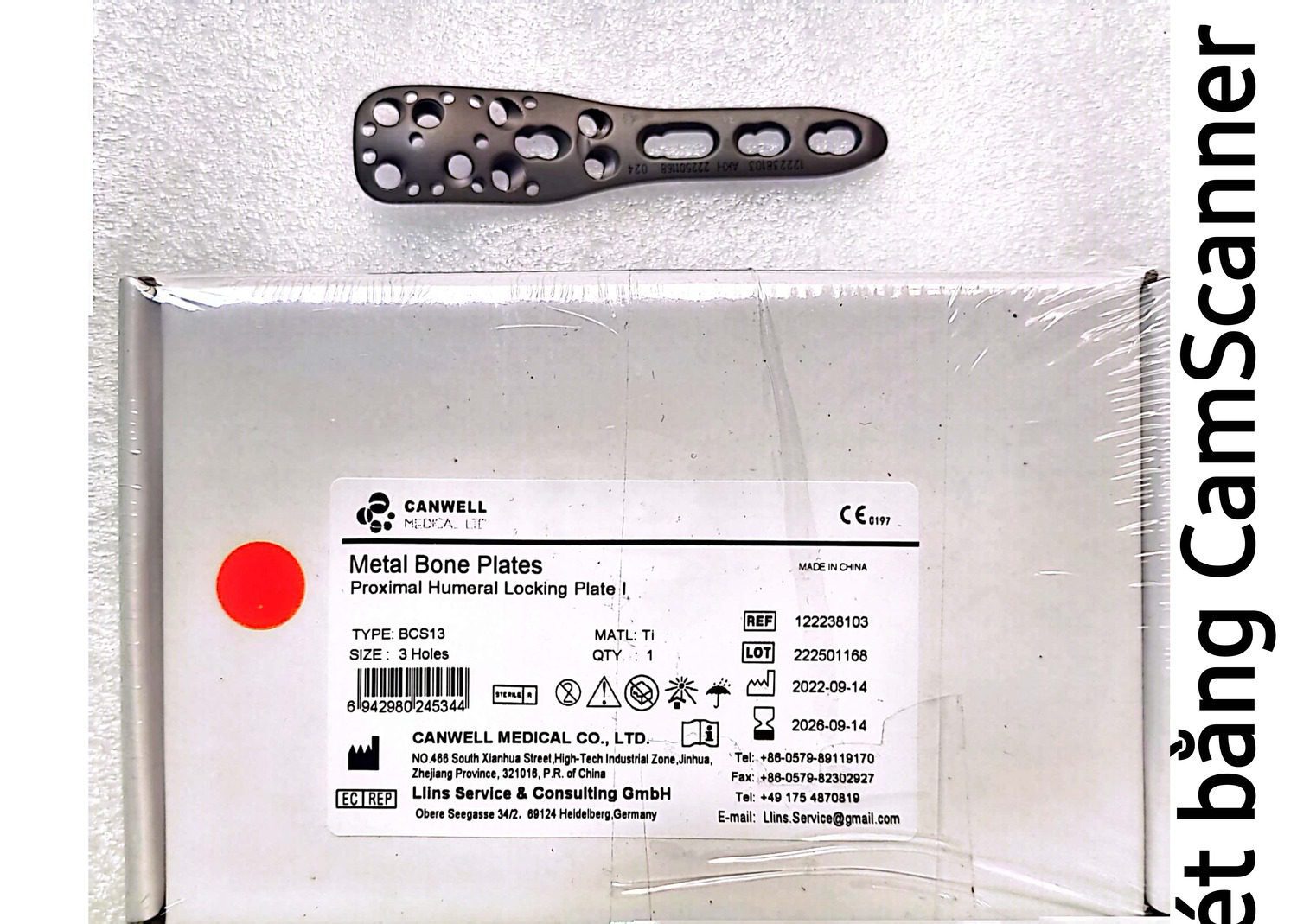

| CanSLP | 122238103 | Proximal Humeral Locking Plate I | 3 Holes | Ti |
| CanSLP | 122238104 | Proximal Humeral Locking Plate I | 4 Holes | Ti |
| CanSLP | 122238105 | Proximal Humeral Locking Plate I | 5 Holes | Ti |
| CanSLP | 122238106 | Proximal Humeral Locking Plate I | 6 Holes | Ti |
| CanSLP | 122238107 | Proximal Humeral Locking Plate I | 7 Holes | Ti |
| CanSLP | 122238108 | Proximal Humeral Locking Plate I | 8 Holes | Ti |
| CanSLP | 122238109 | Proximal Humeral Locking Plate I | 9 Holes | Ti |
| CanSLP | 122238110 | Proximal Humeral Locking Plate I | 10 Holes | Ti |
| CanSLP | 122238111 | Proximal Humeral Locking Plate I | 11 Holes | Ti |
| CanSLP | 122238112 | Proximal Humeral Locking Plate I | 12 Holes | Ti |
| CanSLP | 122238113 | Proximal Humeral Locking Plate I | 13 Holes | Ti |
| CanSLP | 122238114 | Proximal Humeral Locking Plate I | 14 Holes | Ti |
| CanSLP | 122238003 | Proximal Humeral Locking Plate II | 3 Holes | Ti |
| CanSLP | 122238004 | Proximal Humeral Locking Plate II | 4 Holes | Ti |
| CanSLP | 122238005 | Proximal Humeral Locking Plate II | 5 Holes | Ti |
| CanSLP | 122238006 | Proximal Humeral Locking Plate II | 6 Holes | Ti |
| CanSLP | 122238007 | Proximal Humeral Locking Plate II | 7 Holes | Ti |
| CanSLP | 122238008 | Proximal Humeral Locking Plate II | 8 Holes | Ti |
| CanSLP | 122238009 | Proximal Humeral Locking Plate II | 9 Holes | Ti |
| CanSLP | 122238010 | Proximal Humeral Locking Plate II | 10 Holes | Ti |
| CanSLP | 122238011 | Proximal Humeral Locking Plate II | 11 Holes | Ti |
| CanSLP | 122238012 | Proximal Humeral Locking Plate II | 12 Holes | Ti |
| CanSLP | 122238013 | Proximal Humeral Locking Plate II | 13 Holes | Ti |

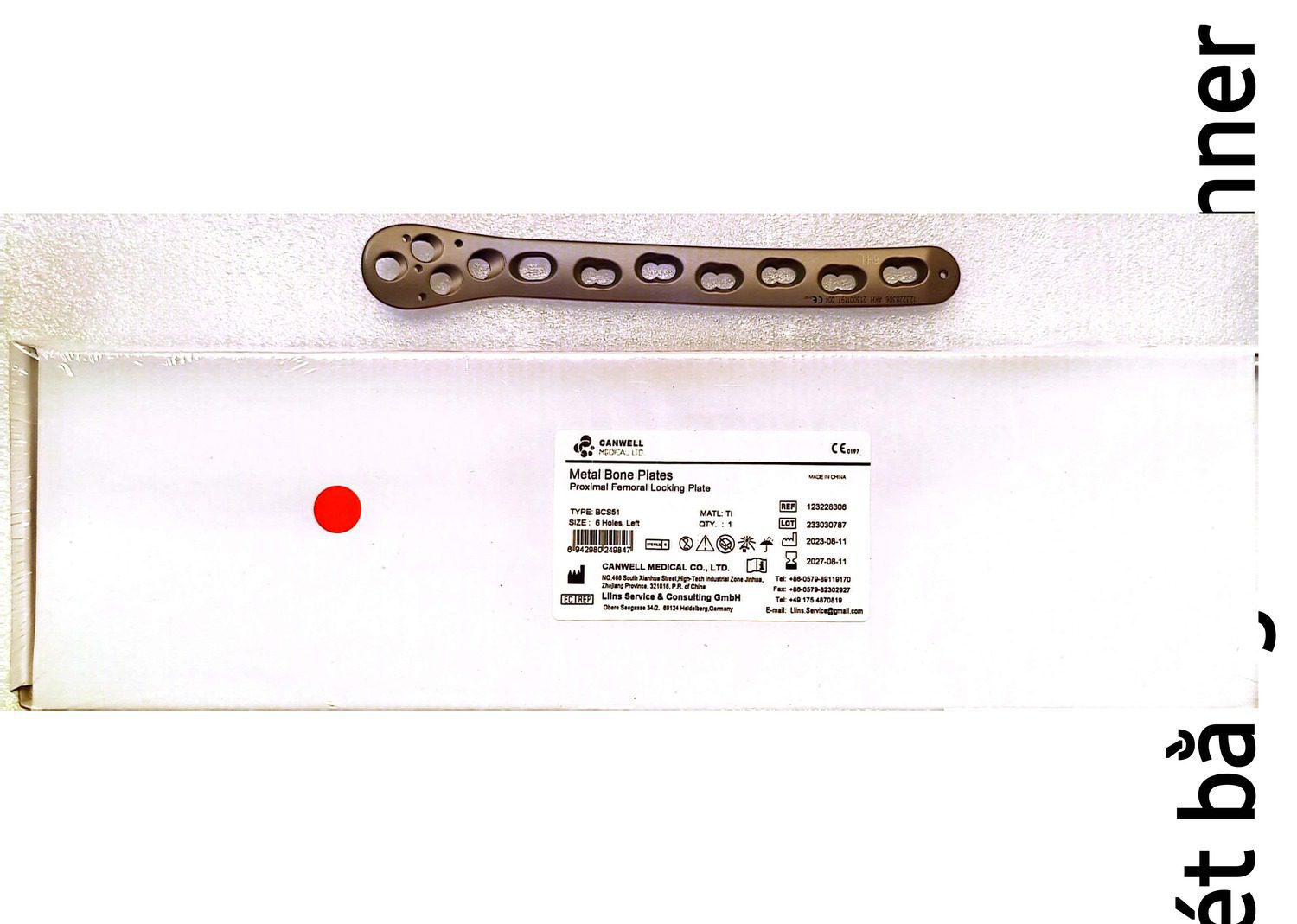

| CanLLP | 123228304 | Proximal Femoral Locking Plate | 4 Holes, Left | Ti |
| CanLLP | 123228306 | Proximal Femoral Locking Plate | 6 Holes, Left | Ti |
| CanLLP | 123228308 | Proximal Femoral Locking Plate | 8 Holes, Left | Ti |
| CanLLP | 123228310 | Proximal Femoral Locking Plate | 10 Holes, Left | Ti |
| CanLLP | 123228312 | Proximal Femoral Locking Plate | 12 Holes, Left | Ti |
| CanLLP | 123228502 | Proximal Femoral Locking Plate | 2 Holes, Left | Ti |
| CanLLP | 123228504 | Proximal Femoral Locking Plate | 4 Holes, Left | Ti |
| CanLLP | 123228506 | Proximal Femoral Locking Plate | 6 Holes, Left | Ti |
| CanLLP | 123228509 | Proximal Femoral Locking Plate | 9 Holes, Left | Ti |
| CanLLP | 123228512 | Proximal Femoral Locking Plate | 12 Holes, Left | Ti |

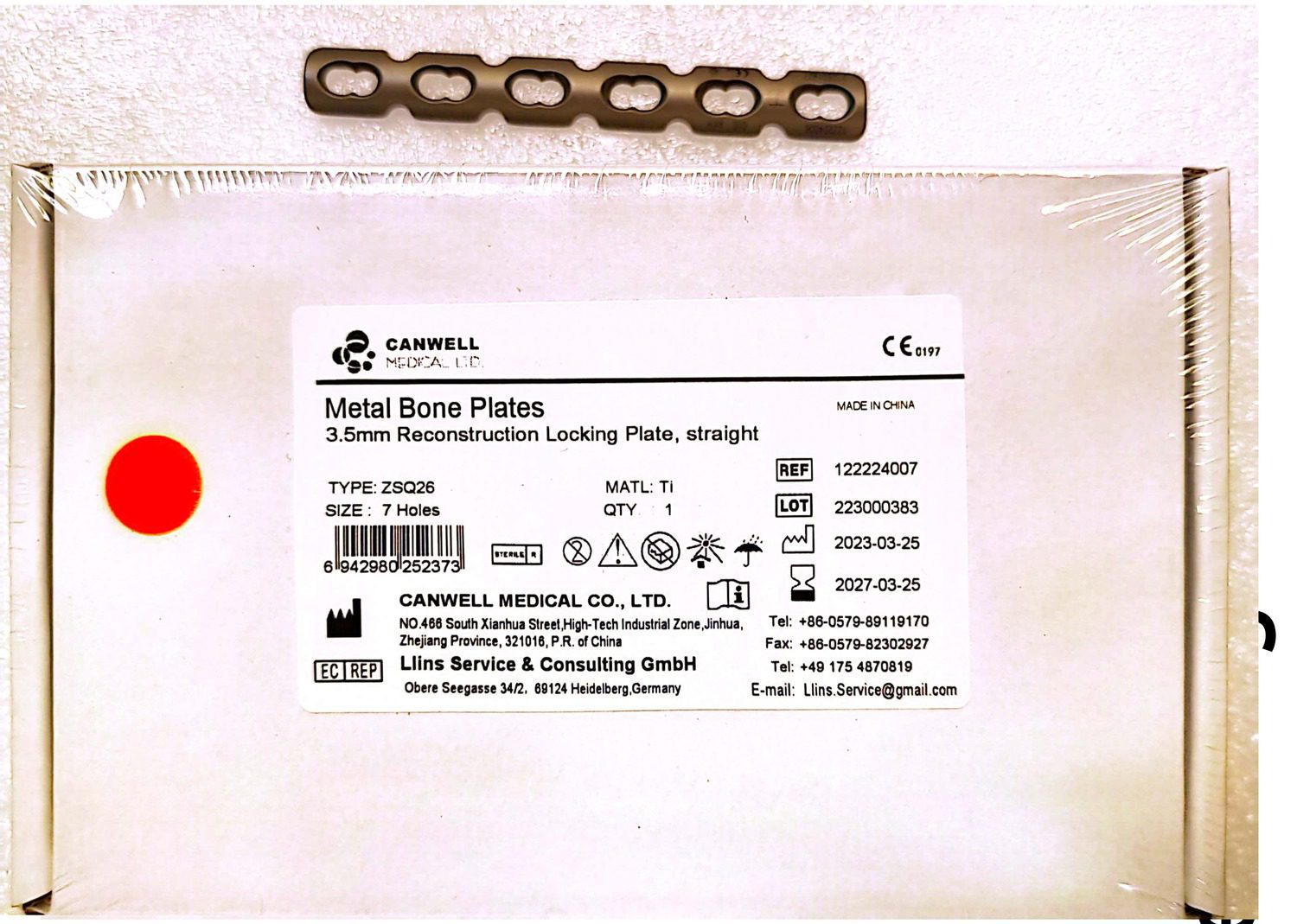

| CanSLP | 122224004 | 3.5mm Reconstruction Locking Plate, straight | 4 Holes | Ti |
| CanSLP | 122224005 | 3.5mm Reconstruction Locking Plate, straight | 5 Holes | Ti |
| CanSLP | 122224006 | 3.5mm Reconstruction Locking Plate, straight | 6 Holes | Ti |
| CanSLP | 122224007 | 3.5mm Reconstruction Locking Plate, straight | 7 Holes | Ti |
| CanSLP | 122224008 | 3.5mm Reconstruction Locking Plate, straight | 8 Holes | Ti |
| CanSLP | 122224009 | 3.5mm Reconstruction Locking Plate, straight | 9 Holes | Ti |
| CanSLP | 122224010 | 3.5mm Reconstruction Locking Plate, straight | 10 Holes | Ti |
| CanSLP | 122224011 | 3.5mm Reconstruction Locking Plate, straight | 11 Holes | Ti |
| CanSLP | 122224012 | 3.5mm Reconstruction Locking Plate, straight | 12 Holes | Ti |
| CanSLP | 122224013 | 3.5mm Reconstruction Locking Plate, straight | 13 Holes | Ti |
| CanSLP | 122224014 | 3.5mm Reconstruction Locking Plate, straight | 14 Holes | Ti |
| CanSLP | 122224016 | 3.5mm Reconstruction Locking Plate, straight | 16 Holes | Ti |
| CanSLP | 122224018 | 3.5mm Reconstruction Locking Plate, straight | 18 Holes | Ti |
| CanSLP | 122224020 | 3.5mm Reconstruction Locking Plate, straight | 20 Holes | Ti |
| CanSLP | 122224022 | 3.5mm Reconstruction Locking Plate, straight | 22 Holes | Ti |
| CanSLP | 122220003 | 3.5mm LCP T-Plate, Right-angled( head 4holes) | 3 Holes | Ti |
| CanSLP | 122220004 | 3.5mm LCP T-Plate, Right-angled( head 4holes) | 4 Holes | Ti |
| CanSLP | 122220005 | 3.5mm LCP T-Plate, Right-angled( head 4holes) | 5 Holes | Ti |
| CanSLP | 122220006 | 3.5mm LCP T-Plate, Right-angled( head 4holes) | 6 Holes | Ti |
| CanSLP | 122221103 | 3.5mm LCP T-Plate, Oblique-angled( head 3holes) | 3 Holes, Left | Ti |
| CanSLP | 122221104 | 3.5mm LCP T-Plate, Oblique-angled( head 3holes) | 4 Holes, Left | Ti |
| CanSLP | 122221105 | 3.5mm LCP T-Plate, Oblique-angled( head 3holes) | 5 Holes, Left | Ti |
| CanSLP | 122222003 | 3.5mm LCP T-Plate, Right-angled( head 3holes) | 3 Holes | Ti |
| CanSLP | 122222004 | 3.5mm LCP T-Plate, Right-angled( head 3holes) | 4 Holes | Ti |
| CanSLP | 122222005 | 3.5mm LCP T-Plate, Right-angled( head 3holes) | 5 Holes | Ti |
| CanSLP | 122222006 | 3.5mm LCP T-Plate, Right-angled( head 3holes) | 6 Holes | Ti |
| CanSLP | 122221103 | 3.5mm LCP T-Plate, Oblique-angled( head 3holes) | 3 Holes, Left | Ti |
| CanSLP | 122221104 | 3.5mm LCP T-Plate, Oblique-angled( head 3holes) | 4 Holes, Left | Ti |
| CanSLP | 122221105 | 3.5mm LCP T-Plate, Oblique-angled( head 3holes) | 5 Holes, Left | Ti |
| CanSLP | 122221203 | 3.5mm LCP T-Plate, Oblique-angled( head 3holes) | 3 Holes, Right | Ti |
| CanSLP | 122221204 | 3.5mm LCP T-Plate, Oblique-angled( head 3holes) | 4 Holes, Right | Ti |
| CanSLP | 122221205 | 3.5mm LCP T-Plate, Oblique-angled( head 3holes) | 5 Holes, Right | Ti |
| CanSLP | 122222003 | 3.5mm LCP T-Plate, Right-angled( head 3holes) | 3 Holes | Ti |
| CanSLP | 122222004 | 3.5mm LCP T-Plate, Right-angled( head 3holes) | 4 Holes | Ti |
| CanSLP | 122222005 | 3.5mm LCP T-Plate, Right-angled( head 3holes) | 5 Holes | Ti |
| CanSLP | 122222006 | 3.5mm LCP T-Plate, Right-angled( head 3holes) | 6 Holes | Ti |
| CanSLP | 122240102 | LCP Olecranon Locking Plate | 2 Holes, Left | Ti |
| CanSLP | 122240104 | LCP Olecranon Locking Plate | 4 Holes, Left | Ti |
| CanSLP | 122240106 | LCP Olecranon Locking Plate | 6 Holes, Left | Ti |
| CanSLP | 122240108 | LCP Olecranon Locking Plate | 8 Holes, Left | Ti |
| CanSLP | 122240110 | LCP Olecranon Locking Plate | 10 Holes, Left | Ti |
| CanSLP | 122240112 | LCP Olecranon Locking Plate | 12 Holes, Left | Ti |
| CanSLP | 122240202 | LCP Olecranon Locking Plate | 2 Holes, Right | Ti |
| CanSLP | 122240204 | LCP Olecranon Locking Plate | 4 Holes, Right | Ti |
| CanSLP | 122240206 | LCP Olecranon Locking Plate | 6 Holes, Right | Ti |
| CanSLP | 122240208 | LCP Olecranon Locking Plate | 8 Holes, Right | Ti |
| CanSLP | 122240210 | LCP Olecranon Locking Plate | 10 Holes, Right | Ti |
| CanSLP | 122240212 | LCP Olecranon Locking Plate | 12 Holes, Right | Ti |

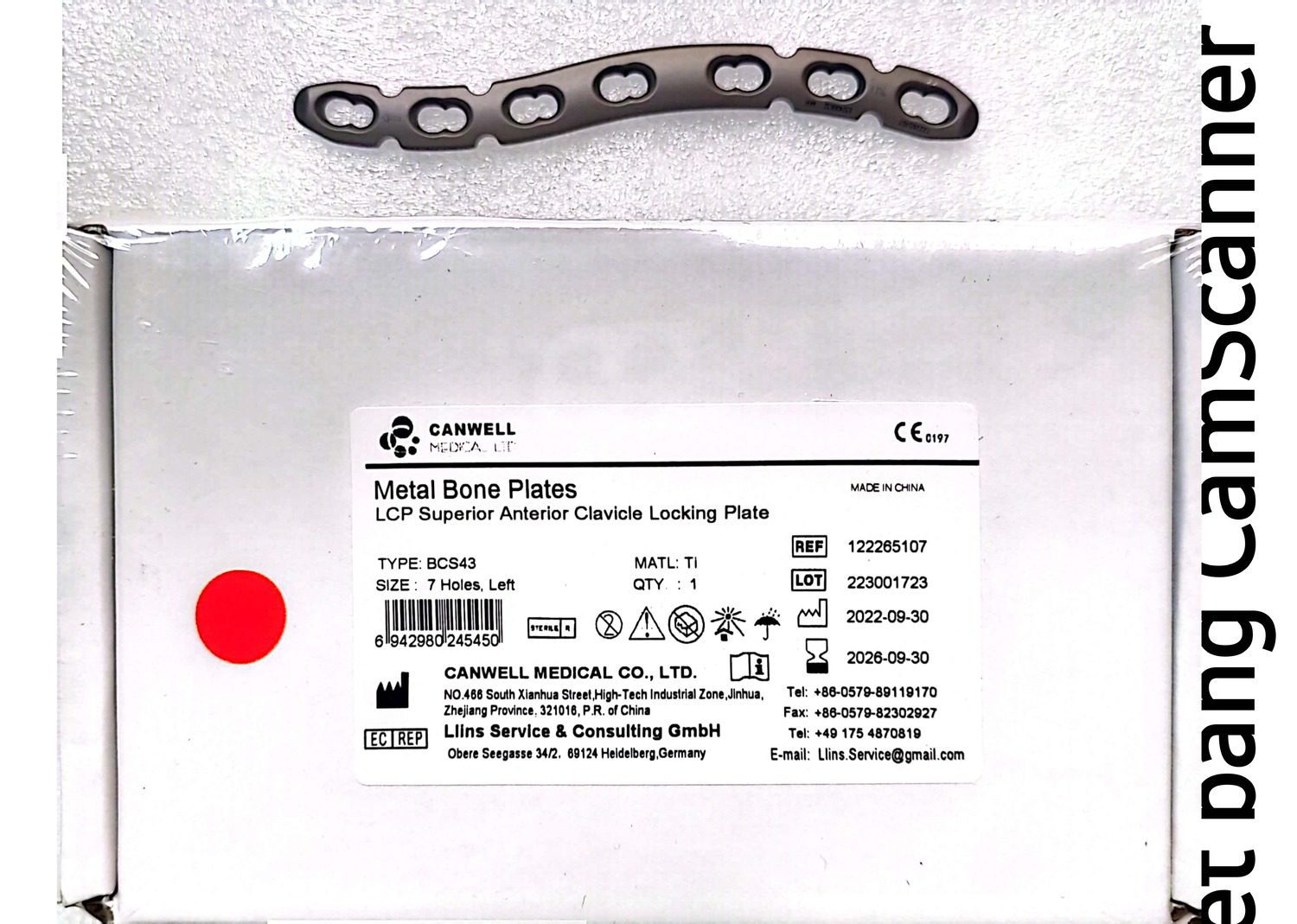

| CanSLP | 122265106 | LCP Superior Anterior Clavicle Locking Plate | 6 Holes, Left | Ti |
| CanSLP | 122265107 | LCP Superior Anterior Clavicle Locking Plate | 7 Holes, Left | Ti |
| CanSLP | 122265108 | LCP Superior Anterior Clavicle Locking Plate | 8 Holes, Left | Ti |
| CanSLP | 122265206 | LCP Superior Anterior Clavicle Locking Plate | 6 Holes, Right | Ti |
| CanSLP | 122265207 | LCP Superior Anterior Clavicle Locking Plate | 7 Holes, Right | Ti |
| CanSLP | 122265208 | LCP Superior Anterior Clavicle Locking Plate | 8 Holes, Right | Ti |

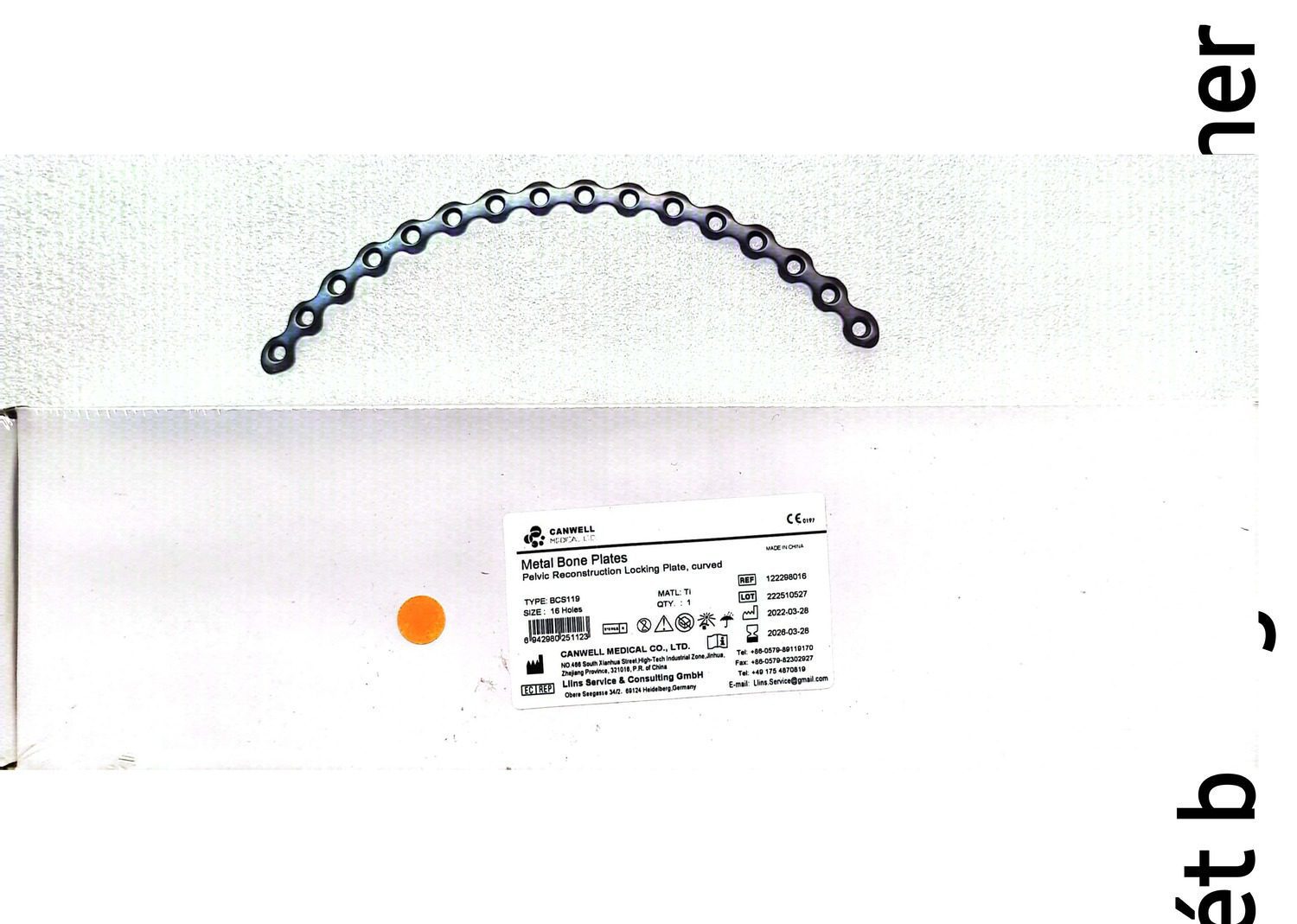

| CanSLP | 122298006 | Pelvic Reconstruction Locking Plate, curved | 6 Holes | Ti |
| CanSLP | 122298008 | Pelvic Reconstruction Locking Plate, curved | 8 Holes | Ti |
| CanSLP | 122298010 | Pelvic Reconstruction Locking Plate, curved | 10 Holes | Ti |
| CanSLP | 122298012 | Pelvic Reconstruction Locking Plate, curved | 12 Holes | Ti |
| CanSLP | 122298014 | Pelvic Reconstruction Locking Plate, curved | 14 Holes | Ti |
| CanSLP | 122298016 | Pelvic Reconstruction Locking Plate, curved | 16 Holes | Ti |
| CanSLP | 122297004 | Pubis Combination Locking Plate | 4 Holes | Ti |
| CanSLP | 122297006 | Pubis Combination Locking Plate | 6 Holes | Ti |
| CanSLP | 122236104 | LCP Clavicle Hook Plate | 4 Holes, Left(18mm) | Ti |
| CanSLP | 122236105 | LCP Clavicle Hook Plate | 5 Holes, Left(18mm) | Ti |
| CanSLP | 122236106 | LCP Clavicle Hook Plate | 6 Holes, Left(18mm) | Ti |
| CanSLP | 122236107 | LCP Clavicle Hook Plate | 7 Holes, Left(18mm) | Ti |
| CanSLP | 122236204 | LCP Clavicle Hook Plate | 4 Holes, Left(15mm) | Ti |
| CanSLP | 122236205 | LCP Clavicle Hook Plate | 5 Holes, Left(15mm) | Ti |
| CanSLP | 122236206 | LCP Clavicle Hook Plate | 6 Holes, Left(15mm) | Ti |
| CanSLP | 122236207 | LCP Clavicle Hook Plate | 7 Holes, Left(15mm) | Ti |
| CanSLP | 122236304 | LCP Clavicle Hook Plate | 4 Holes, Right(18mm) | Ti |
| CanSLP | 122236305 | LCP Clavicle Hook Plate | 5 Holes, Right(18mm) | Ti |
| CanSLP | 122236306 | LCP Clavicle Hook Plate | 6 Holes, Right(18mm) | Ti |
| CanSLP | 122236307 | LCP Clavicle Hook Plate | 7 Holes, Right(18mm) | Ti |
| CanSLP | 122236404 | LCP Clavicle Hook Plate | 4 Holes, Right(15mm) | Ti |
| CanSLP | 122236405 | LCP Clavicle Hook Plate | 5 Holes, Right(15mm) | Ti |
| CanSLP | 122236406 | LCP Clavicle Hook Plate | 6 Holes, Right(15mm) | Ti |
| CanSLP | 122236407 | LCP Clavicle Hook Plate | 7 Holes, Right(15mm) | Ti |
| CanSLP | 122234169 | Calcaneal Locking plate | 15 Holes, Left 69mm | Ti |
| CanSLP | 122234176 | Calcaneal Locking plate | 15 Holes, Left 76mm | Ti |
| CanSLP | 122234269 | Calcaneal Locking plate | 15 Holes, Right 69mm | Ti |
| CanSLP | 122234276 | Calcaneal Locking plate | 15 Holes, Right 76mm | Ti |

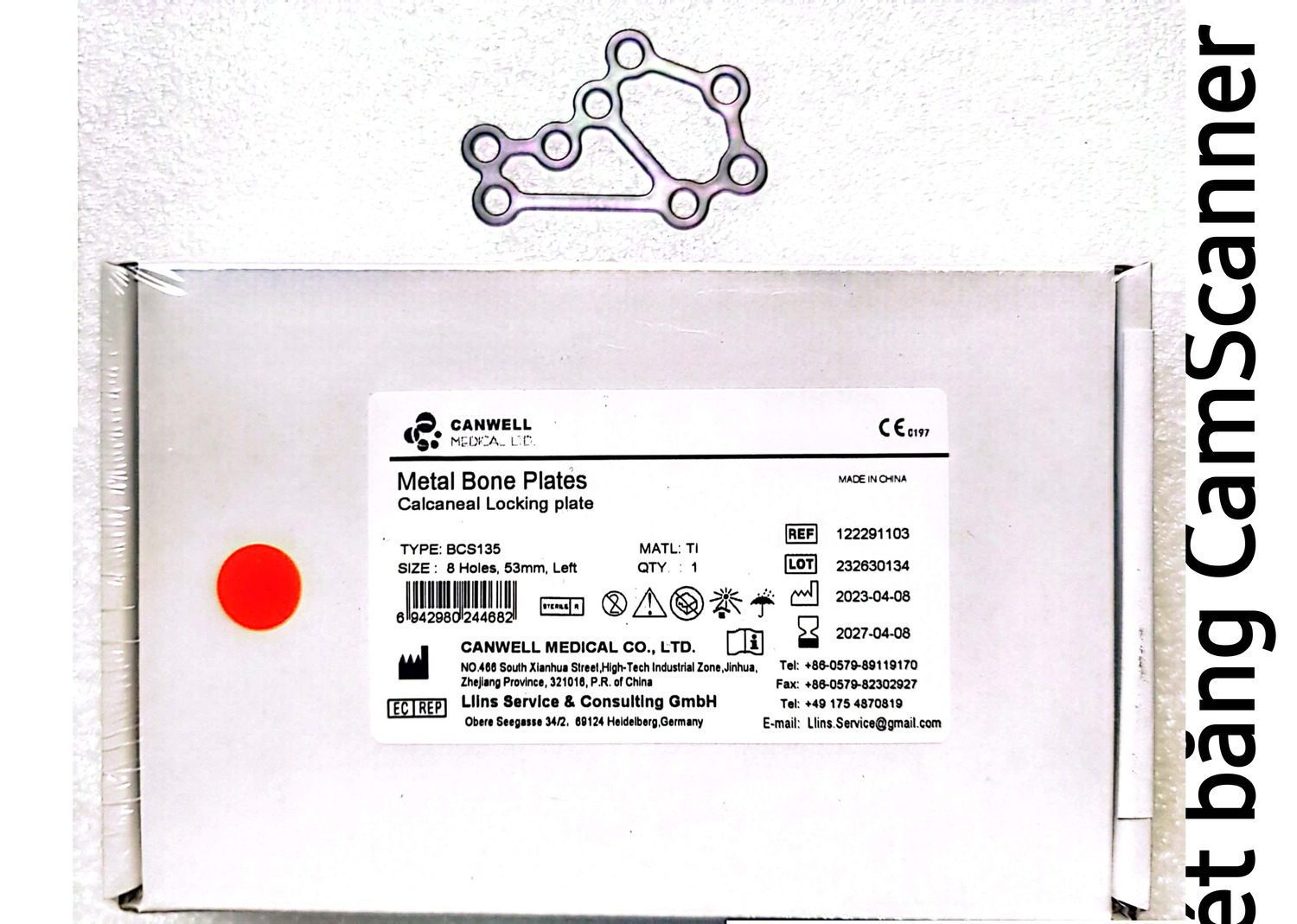

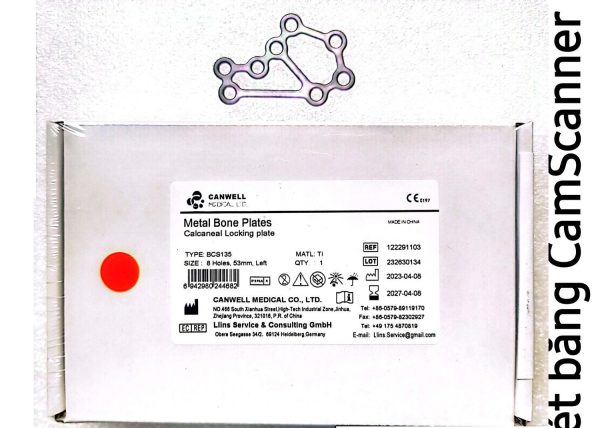

| CanSLP | 122291103 | Calcaneal Locking plate | 8 Holes, 53mm, Left | Ti |
| CanSLP | 122291203 | Calcaneal Locking plate | 8 Holes, 53mm, Right | Ti |
| CanSLP | 122291101 | Calcaneal Locking plate | 12 Holes, 60mm, Left | Ti |
| CanSLP | 122291201 | Calcaneal Locking plate | 12 Holes, 60mm, Right | Ti |
| CanSLP | 122291102 | Calcaneal Locking plate | 12 Holes, 68mm, Left | Ti |
| CanSLP | 122291202 | Calcaneal Locking plate | 12 Holes, 68mm, Right | Ti |
| CanSFP | 122156008 | Calcaneal Plate-IV | 48mm | Ti |
| CanSFP | 122156012 | Calcaneal Locking Plate-IV | 58mm | Ti |
| CanSFP | 122156112 | Calcaneal Locking Plate-IV | 65mm | Ti |
| CanMLP | 131216006 | Locking Screw,self-tapping | Φ1.5×6 | Ti |
| CanMLP | 131216007 | Locking Screw,self-tapping | Φ1.5×7 | Ti |
| CanMLP | 131216008 | Locking Screw,self-tapping | Φ1.5×8 | Ti |
| CanMLP | 131216009 | Locking Screw,self-tapping | Φ1.5×9 | Ti |
| CanMLP | 131216010 | Locking Screw,self-tapping | Φ1.5×10 | Ti |
| CanMLP | 131216011 | Locking Screw,self-tapping | Φ1.5×11 | Ti |
| CanMLP | 131216012 | Locking Screw,self-tapping | Φ1.5×12 | Ti |
| CanMLP | 131216013 | Locking Screw,self-tapping | Φ1.5×13 | Ti |
| CanMLP | 131216014 | Locking Screw,self-tapping | Φ1.5×14 | Ti |
| CanMLP | 131216015 | Locking Screw,self-tapping | Φ1.5×15 | Ti |
| CanMLP | 131216016 | Locking Screw,self-tapping | Φ1.5×16 | Ti |
| CanMLP | 131216017 | Locking Screw,self-tapping | Φ1.5×17 | Ti |
| CanMLP | 131216018 | Locking Screw,self-tapping | Φ1.5×18 | Ti |
| CanMLP | 131216019 | Locking Screw,self-tapping | Φ1.5×19 | Ti |
| CanMLP | 131216020 | Locking Screw,self-tapping | Φ1.5×20 | Ti |
| CanMLP | 131212006 | Locking screw, self-tapping | Ф2.0×6 | Ti |
| CanMLP | 131212007 | Locking screw, self-tapping | Ф2.0×7 | Ti |
| CanMLP | 131212008 | Locking screw, self-tapping | Ф2.0×8 | Ti |
| CanMLP | 131212009 | Locking screw, self-tapping | Ф2.0×9 | Ti |
| CanMLP | 131212010 | Locking screw, self-tapping | Ф2.0×10 | Ti |
| CanMLP | 131212011 | Locking screw, self-tapping | Ф2.0×11 | Ti |
| CanMLP | 131212012 | Locking screw, self-tapping | Ф2.0×12 | Ti |
| CanMLP | 131212013 | Locking screw, self-tapping | Ф2.0×13 | Ti |
| CanMLP | 131212014 | Locking screw, self-tapping | Ф2.0×14 | Ti |
| CanMLP | 131212016 | Locking screw, self-tapping | Ф2.0×16 | Ti |
| CanMLP | 131212018 | Locking screw, self-tapping | Ф2.0×18 | Ti |
| CanMLP | 131212020 | Locking screw, self-tapping | Ф2.0×20 | Ti |
| CanMLP | 131212022 | Locking screw, self-tapping | Ф2.0×22 | Ti |
| CanMLP | 131212024 | Locking screw, self-tapping | Ф2.0×24 | Ti |
| CanMLP | 131212026 | Locking screw, self-tapping | Ф2.0×26 | Ti |
| CanMLP | 131212028 | Locking screw, self-tapping | Ф2.0×28 | Ti |
| CanMLP | 131212030 | Locking screw, self-tapping | Ф2.0×30 | Ti |
| 2.4/2.7 | 132201008 | Locking Screw，self-tapping | Ø2.4×8 | Ti |
| 2.4/2.7 | 132201010 | Locking Screw，self-tapping | Ø2.4×10 | Ti |
| 2.4/2.7 | 132201012 | Locking Screw，self-tapping | Ø2.4×12 | Ti |
| 2.4/2.7 | 132201014 | Locking Screw，self-tapping | Ø2.4×14 | Ti |
| 2.4/2.7 | 132201016 | Locking Screw，self-tapping | Ø2.4×16 | Ti |
| 2.4/2.7 | 132201018 | Locking Screw，self-tapping | Ø2.4×18 | Ti |
| 2.4/2.7 | 132201020 | Locking Screw，self-tapping | Ø2.4×20 | Ti |
| 2.4/2.7 | 132201022 | Locking Screw，self-tapping | Ø2.4×22 | Ti |
| 2.4/2.7 | 132201024 | Locking Screw，self-tapping | Ø2.4×24 | Ti |
| 2.4/2.7 | 132201026 | Locking Screw，self-tapping | Ø2.4×26 | Ti |
| 2.4/2.7 | 132201028 | Locking Screw，self-tapping | Ø2.4×28 | Ti |
| 2.4/2.7 | 132201030 | Locking Screw，self-tapping | Ø2.4×30 | Ti |
| 2.4/2.7 | 132202008 | Locking Screw, self-tapping | Ø2.7×8 | Ti |
| 2.4/2.7 | 132202010 | Locking Screw, self-tapping | Ø2.7×10 | Ti |
| 2.4/2.7 | 132202012 | Locking Screw, self-tapping | Ø2.7×12 | Ti |
| 2.4/2.7 | 132202014 | Locking Screw, self-tapping | Ø2.7×14 | Ti |
| 2.4/2.7 | 132202016 | Locking Screw, self-tapping | Ø2.7×16 | Ti |
| 2.4/2.7 | 132202018 | Locking Screw, self-tapping | Ø2.7×18 | Ti |
| 2.4/2.7 | 132202020 | Locking Screw, self-tapping | Ø2.7×20 | Ti |
| 2.4/2.7 | 132202022 | Locking Screw, self-tapping | Ø2.7×22 | Ti |
| 2.4/2.7 | 132202024 | Locking Screw, self-tapping | Ø2.7×24 | Ti |
| 2.4/2.7 | 132202026 | Locking Screw, self-tapping | Ø2.7×26 | Ti |
| 2.4/2.7 | 132202028 | Locking Screw, self-tapping | Ø2.7×28 | Ti |
| 2.4/2.7 | 132202030 | Locking Screw, self-tapping | Ø2.7×30 | Ti |
| 2.4/2.7 | 132202035 | Locking Screw, self-tapping | Ø2.7×35 | Ti |
| 2.4/2.7 | 132202040 | Locking Screw, self-tapping | Ø2.7×40 | Ti |
| 2.4/2.7 | 132202045 | Locking Screw, self-tapping | Ø2.7×45 | Ti |
| 2.4/2.7 | 132202050 | Locking Screw, self-tapping | Ø2.7×50 | Ti |
| 2.4/2.7 | 132202055 | Locking Screw, self-tapping | Ø2.7×55 | Ti |
| 2.4/2.7 | 132202060 | Locking Screw, self-tapping | Ø2.7×60 | Ti |
| CanSLP | 132214010 | Locking Screw,self-tapping | Φ3.5×10 | Ti |
| CanSLP | 132214012 | Locking Screw,self-tapping | Φ3.5×12 | Ti |
| CanSLP | 132214014 | Locking Screw,self-tapping | Φ3.5×14 | Ti |
| CanSLP | 132214016 | Locking Screw,self-tapping | Φ3.5×16 | Ti |
| CanSLP | 132214018 | Locking Screw,self-tapping | Φ3.5×18 | Ti |
| CanSLP | 132214020 | Locking Screw,self-tapping | Φ3.5×20 | Ti |
| CanSLP | 132214022 | Locking Screw,self-tapping | Φ3.5×22 | Ti |
| CanSLP | 132214024 | Locking Screw,self-tapping | Φ3.5×24 | Ti |
| CanSLP | 132214026 | Locking Screw,self-tapping | Φ3.5×26 | Ti |
| CanSLP | 132214028 | Locking Screw,self-tapping | Φ3.5×28 | Ti |
| CanSLP | 132214030 | Locking Screw,self-tapping | Φ3.5×30 | Ti |
| CanSLP | 132214032 | Locking Screw,self-tapping | Φ3.5×32 | Ti |
| CanSLP | 132214034 | Locking Screw,self-tapping | Φ3.5×34 | Ti |
| CanSLP | 132214035 | Locking Screw,self-tapping | Φ3.5×35 | Ti |
| CanSLP | 132214036 | Locking Screw,self-tapping | Φ3.5×36 | Ti |
| CanSLP | 132214038 | Locking Screw,self-tapping | Φ3.5×38 | Ti |
| CanSLP | 132214040 | Locking Screw,self-tapping | Φ3.5×40 | Ti |
| CanSLP | 132214042 | Locking Screw,self-tapping | Φ3.5×42 | Ti |
| CanSLP | 132214044 | Locking Screw,self-tapping | Φ3.5×44 | Ti |
| CanSLP | 132214045 | Locking Screw,self-tapping | Φ3.5×45 | Ti |
| CanSLP | 132214046 | Locking Screw,self-tapping | Φ3.5×46 | Ti |
| CanSLP | 132214048 | Locking Screw,self-tapping | Φ3.5×48 | Ti |
| CanSLP | 132214050 | Locking Screw,self-tapping | Φ3.5×50 | Ti |
| CanSLP | 132214055 | Locking Screw,self-tapping | Φ3.5×55 | Ti |
| CanSLP | 132214060 | Locking Screw,self-tapping | Φ3.5×60 | Ti |
| CanSLP | 132214065 | Locking Screw,self-tapping | Φ3.5×65 | Ti |
| CanSLP | 132214070 | Locking Screw,self-tapping | Φ3.5×70 | Ti |
| CanSLP | 132214075 | Locking Screw,self-tapping | Φ3.5×75 | Ti |
| CanSLP | 132214080 | Locking Screw,self-tapping | Φ3.5×80 | Ti |
| CanSLP | 132214085 | Locking Screw,self-tapping | Φ3.5×85 | Ti |
| CanSLP | 132214090 | Locking Screw,self-tapping | Φ3.5×90 | Ti |
| CanLLP | 133202014 | Locking Screw,self-tapping | Ø5.0×14 | Ti |
| CanLLP | 133202016 | Locking Screw,self-tapping | Ø5.0×16 | Ti |
| CanLLP | 133202018 | Locking Screw,self-tapping | Ø5.0×18 | Ti |
| CanLLP | 133202020 | Locking Screw,self-tapping | Ø5.0×20 | Ti |
| CanLLP | 133202022 | Locking Screw,self-tapping | Ø5.0×22 | Ti |
| CanLLP | 133202024 | Locking Screw,self-tapping | Ø5.0×24 | Ti |
| CanLLP | 133202026 | Locking Screw,self-tapping | Ø5.0×26 | Ti |
| CanLLP | 133202028 | Locking Screw,self-tapping | Ø5.0×28 | Ti |
| CanLLP | 133202030 | Locking Screw,self-tapping | Ø5.0×30 | Ti |
| CanLLP | 133202032 | Locking Screw,self-tapping | Ø5.0×32 | Ti |
| CanLLP | 133202034 | Locking Screw,self-tapping | Ø5.0×34 | Ti |
| CanLLP | 133202036 | Locking Screw,self-tapping | Ø5.0×36 | Ti |
| CanLLP | 133202038 | Locking Screw,self-tapping | Ø5.0×38 | Ti |
| CanLLP | 133202040 | Locking Screw,self-tapping | Ø5.0×40 | Ti |
| CanLLP | 133202042 | Locking Screw,self-tapping | Ø5.0×42 | Ti |
| CanLLP | 133202044 | Locking Screw,self-tapping | Ø5.0×44 | Ti |
| CanLLP | 133202045 | Locking Screw,self-tapping | Ø5.0×45 | Ti |
| CanLLP | 133202046 | Locking Screw,self-tapping | Ø5.0×46 | Ti |
| CanLLP | 133202048 | Locking Screw,self-tapping | Ø5.0×48 | Ti |
| CanLLP | 133202050 | Locking Screw,self-tapping | Ø5.0×50 | Ti |
| CanLLP | 133202055 | Locking Screw,self-tapping | Ø5.0×55 | Ti |
| CanLLP | 133202060 | Locking Screw,self-tapping | Ø5.0×60 | Ti |
| CanLLP | 133202065 | Locking Screw,self-tapping | Ø5.0×65 | Ti |
| CanLLP | 133202070 | Locking Screw,self-tapping | Ø5.0×70 | Ti |
| CanLLP | 133202075 | Locking Screw,self-tapping | Ø5.0×75 | Ti |
| CanLLP | 133202080 | Locking Screw,self-tapping | Ø5.0×80 | Ti |
| CanLLP | 133202085 | Locking Screw,self-tapping | Ø5.0×85 | Ti |
| CanLLP | 133202090 | Locking Screw,self-tapping | Ø5.0×90 | Ti |
| CanLLP | 133202095 | Locking Screw,self-tapping | Ø5.0×95 | Ti |
| CanLLP | 133202100 | Locking Screw,self-tapping | Ø5.0×100 | Ti |
| CanLLP | 133218050 | Locking Screw,self-tapping | Ø6.5×50 | Ti |
| CanLLP | 133218055 | Locking Screw,self-tapping | Ø6.5×55 | Ti |
| CanLLP | 133218060 | Locking Screw,self-tapping | Ø6.5×60 | Ti |
| CanLLP | 133218065 | Locking Screw,self-tapping | Ø6.5×65 | Ti |
| CanLLP | 133218070 | Locking Screw,self-tapping | Ø6.5×70 | Ti |
| CanLLP | 133218075 | Locking Screw,self-tapping | Ø6.5×75 | Ti |
| CanLLP | 133218080 | Locking Screw,self-tapping | Ø6.5×80 | Ti |
| CanLLP | 133218085 | Locking Screw,self-tapping | Ø6.5×85 | Ti |
| CanLLP | 133218090 | Locking Screw,self-tapping | Ø6.5×90 | Ti |
| CanLLP | 133218095 | Locking Screw,self-tapping | Ø6.5×95 | Ti |
| CanLLP | 133218100 | Locking Screw,self-tapping | Ø6.5×100 | Ti |
| CanLLP | 133218105 | Locking Screw,self-tapping | Ø6.5×105 | Ti |
| CanLLP | 133218110 | Locking Screw,self-tapping | Ø6.5×110 | Ti |
| CanLLP | 133218115 | Locking Screw,self-tapping | Ø6.5×115 | Ti |
| CanLLP | 133218120 | Locking Screw,self-tapping | Ø6.5×120 | Ti |
| CanVLP | 132311008 | VA Locking Screw | Ø2.4×8 | Ti |
| CanVLP | 132311010 | VA Locking Screw | Ø2.4×10 | Ti |
| CanVLP | 132311012 | VA Locking Screw | Ø2.4×12 | Ti |
| CanVLP | 132311014 | VA Locking Screw | Ø2.4×14 | Ti |
| CanVLP | 132311016 | VA Locking Screw | Ø2.4×16 | Ti |
| CanVLP | 132311018 | VA Locking Screw | Ø2.4×18 | Ti |
| CanVLP | 132311020 | VA Locking Screw | Ø2.4×20 | Ti |
| CanVLP | 132311022 | VA Locking Screw | Ø2.4×22 | Ti |
| CanVLP | 132311024 | VA Locking Screw | Ø2.4×24 | Ti |
| CanVLP | 132311026 | VA Locking Screw | Ø2.4×26 | Ti |
| CanVLP | 132311028 | VA Locking Screw | Ø2.4×28 | Ti |
| CanVLP | 132311030 | VA Locking Screw | Ø2.4×30 | Ti |
| CanLLP | 133202026 | Locking Screw,self-tapping | Ø5.0×26 | Ti |
| CanLLP | 133202028 | Locking Screw,self-tapping | Ø5.0×28 | Ti |
| CanLLP | 133202030 | Locking Screw,self-tapping | Ø5.0×30 | Ti |
| CanLLP | 133202032 | Locking Screw,self-tapping | Ø5.0×32 | Ti |
| CanLLP | 133202034 | Locking Screw,self-tapping | Ø5.0×34 | Ti |
| CanLLP | 133202036 | Locking Screw,self-tapping | Ø5.0×36 | Ti |
| CanLLP | 133202038 | Locking Screw,self-tapping | Ø5.0×38 | Ti |
| CanLLP | 133202040 | Locking Screw,self-tapping | Ø5.0×40 | Ti |
| CanLLP | 133202042 | Locking Screw,self-tapping | Ø5.0×42 | Ti |
| CanLLP | 133202044 | Locking Screw,self-tapping | Ø5.0×44 | Ti |
| CanLLP | 133202045 | Locking Screw,self-tapping | Ø5.0×45 | Ti |
| CanLLP | 133202046 | Locking Screw,self-tapping | Ø5.0×46 | Ti |
| CanLLP | 133202048 | Locking Screw,self-tapping | Ø5.0×48 | Ti |
| CanLLP | 133202050 | Locking Screw,self-tapping | Ø5.0×50 | Ti |
| CanLLP | 133202055 | Locking Screw,self-tapping | Ø5.0×55 | Ti |
| CanLLP | 133202060 | Locking Screw,self-tapping | Ø5.0×60 | Ti |
| CanLLP | 133202065 | Locking Screw,self-tapping | Ø5.0×65 | Ti |
| CanLLP | 133202070 | Locking Screw,self-tapping | Ø5.0×70 | Ti |
| CanLLP | 133202075 | Locking Screw,self-tapping | Ø5.0×75 | Ti |
| CanLLP | 133202080 | Locking Screw,self-tapping | Ø5.0×80 | Ti |
| CanLLP | 133202085 | Locking Screw,self-tapping | Ø5.0×85 | Ti |
| CanLLP | 133202090 | Locking Screw,self-tapping | Ø5.0×90 | Ti |
| CanLLP | 133202095 | Locking Screw,self-tapping | Ø5.0×95 | Ti |
| CanLLP | 133202100 | Locking Screw,self-tapping | Ø5.0×100 | Ti |
| 2.4/2.7 | 132201008 | Locking Screw，self-tapping | Ø2.4×8 | Ti |
| 2.4/2.7 | 132201010 | Locking Screw，self-tapping | Ø2.4×10 | Ti |
| 2.4/2.7 | 132201012 | Locking Screw，self-tapping | Ø2.4×12 | Ti |
| 2.4/2.7 | 132201014 | Locking Screw，self-tapping | Ø2.4×14 | Ti |
| 2.4/2.7 | 132201016 | Locking Screw，self-tapping | Ø2.4×16 | Ti |
| 2.4/2.7 | 132201018 | Locking Screw，self-tapping | Ø2.4×18 | Ti |
| 2.4/2.7 | 132201020 | Locking Screw，self-tapping | Ø2.4×20 | Ti |
| 2.4/2.7 | 132201022 | Locking Screw，self-tapping | Ø2.4×22 | Ti |
| 2.4/2.7 | 132201024 | Locking Screw，self-tapping | Ø2.4×24 | Ti |
| 2.4/2.7 | 132201026 | Locking Screw，self-tapping | Ø2.4×26 | Ti |
| 2.4/2.7 | 132201028 | Locking Screw，self-tapping | Ø2.4×28 | Ti |
| 2.4/2.7 | 132201030 | Locking Screw，self-tapping | Ø2.4×30 | Ti |

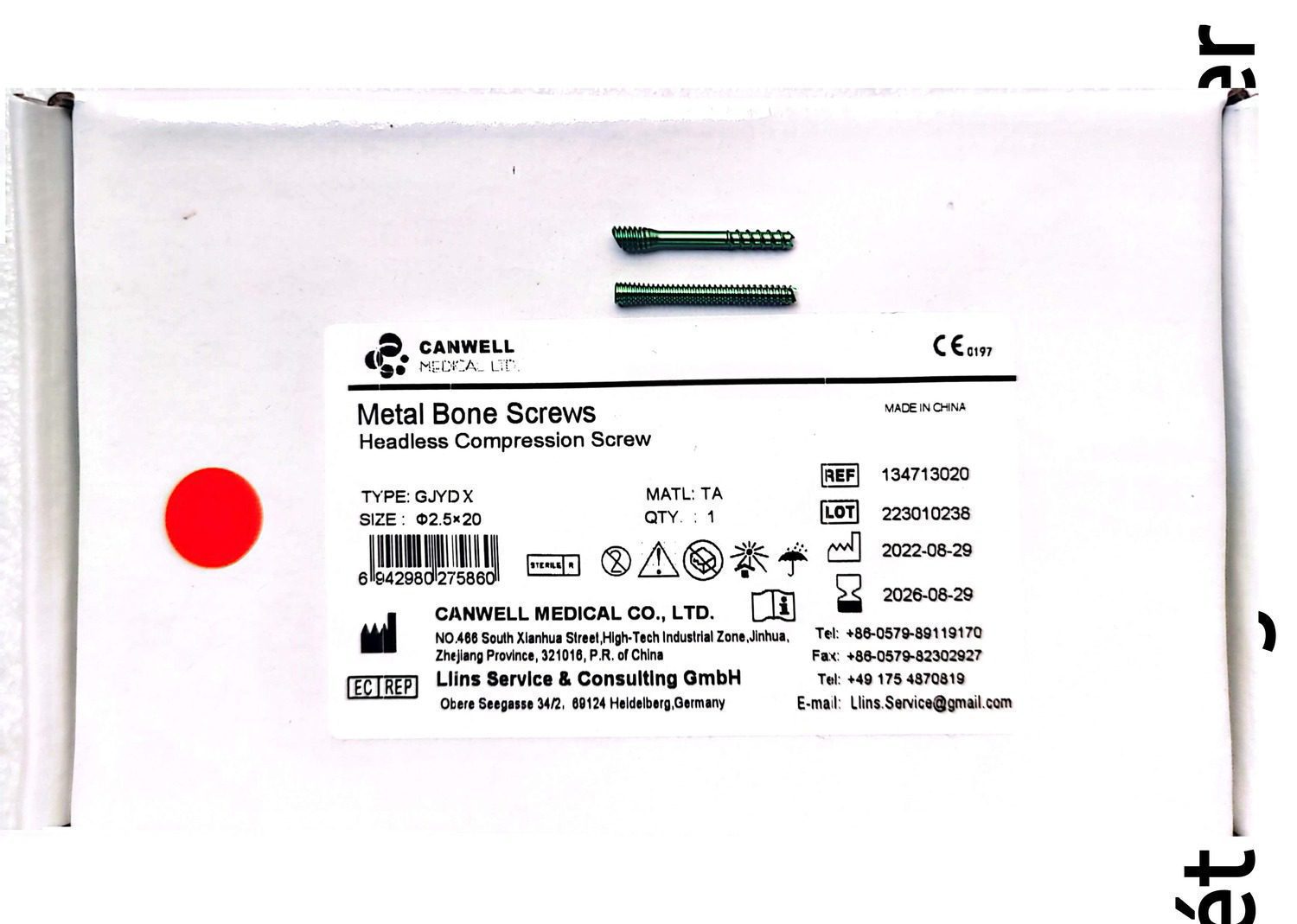

| CanCCS | 134713008 | Headless Compression Screw | Ф2.5×8 | Ti |
| CanCCS | 134713009 | Headless Compression Screw | Ф2.5×9 | Ti |
| CanCCS | 134713010 | Headless Compression Screw | Ф2.5×10 | Ti |
| CanCCS | 134713011 | Headless Compression Screw | Ф2.5×11 | Ti |
| CanCCS | 134713012 | Headless Compression Screw | Ф2.5×12 | Ti |
| CanCCS | 134713013 | Headless Compression Screw | Ф2.5×13 | Ti |
| CanCCS | 134713014 | Headless Compression Screw | Ф2.5×14 | Ti |
| CanCCS | 134713016 | Headless Compression Screw | Ф2.5×16 | Ti |
| CanCCS | 134713018 | Headless Compression Screw | Ф2.5×18 | Ti |
| CanCCS | 134713020 | Headless Compression Screw | Ф2.5×20 | Ti |
| CanCCS | 134713022 | Headless Compression Screw | Ф2.5×22 | Ti |

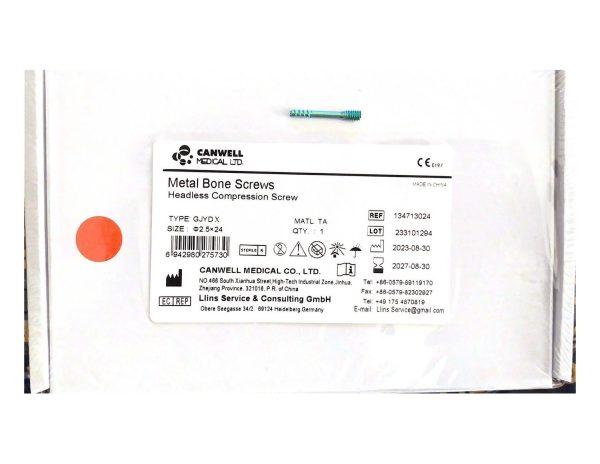

| CanCCS | 134713024 | Headless Compression Screw | Ф2.5×24 | Ti |
| CanCCS | 134713026 | Headless Compression Screw | Ф2.5×26 | Ti |
| CanCCS | 134713028 | Headless Compression Screw | Ф2.5×28 | Ti |
| CanCCS | 134713030 | Headless Compression Screw | Ф2.5×30 | Ti |
| CanCCS | 134623010 | Headless Compression Screw | Φ3.0×10 | Ti |
| CanCCS | 134623011 | Headless Compression Screw | Φ3.0×11 | Ti |
| CanCCS | 134623012 | Headless Compression Screw | Φ3.0×12 | Ti |
| CanCCS | 134623013 | Headless Compression Screw | Φ3.0×13 | Ti |
| CanCCS | 134623014 | Headless Compression Screw | Φ3.0×14 | Ti |
| CanCCS | 134623016 | Headless Compression Screw | Φ3.0×16 | Ti |
| CanCCS | 134623018 | Headless Compression Screw | Φ3.0×18 | Ti |
| CanCCS | 134623020 | Headless Compression Screw | Φ3.0×20 | Ti |
| CanCCS | 134623022 | Headless Compression Screw | Φ3.0×22 | Ti |
| CanCCS | 134623024 | Headless Compression Screw | Φ3.0×24 | Ti |
| CanCCS | 134623026 | Headless Compression Screw | Φ3.0×26 | Ti |
| CanCCS | 134623028 | Headless Compression Screw | Φ3.0×28 | Ti |
| CanCCS | 134623030 | Headless Compression Screw | Φ3.0×30 | Ti |
| CanCCS | 134623032 | Headless Compression Screw | Φ3.0×32 | Ti |
| CanCCS | 134623034 | Headless Compression Screw | Φ3.0×34 | Ti |
| CanCCS | 134623036 | Headless Compression Screw | Φ3.0×36 | Ti |
| CanCCS | 134623038 | Headless Compression Screw | Φ3.0×38 | Ti |
| CanCCS | 134623040 | Headless Compression Screw | Φ3.0×40 | Ti |
| CanCCS | 134923016 | Headless Compression Screw | Ф4.0×16 | Ti |
| CanCCS | 134923018 | Headless Compression Screw | Ф4.0×18 | Ti |
| CanCCS | 134923020 | Headless Compression Screw | Ф4.0×20 | Ti |
| CanCCS | 134923022 | Headless Compression Screw | Ф4.0×22 | Ti |
| CanCCS | 134923024 | Headless Compression Screw | Ф4.0×24 | Ti |
| CanCCS | 134923026 | Headless Compression Screw | Ф4.0×26 | Ti |
| CanCCS | 134923028 | Headless Compression Screw | Ф4.0×28 | Ti |
| CanCCS | 134923030 | Headless Compression Screw | Ф4.0×30 | Ti |
| CanCCS | 134923032 | Headless Compression Screw | Ф4.0×32 | Ti |
| CanCCS | 134923034 | Headless Compression Screw | Ф4.0×34 | Ti |
| CanCCS | 134923036 | Headless Compression Screw | Φ4.0×36 | Ti |
| CanCCS | 134923038 | Headless Compression Screw | Φ4.0×38 | Ti |
| CanCCS | 134923040 | Headless Compression Screw | Φ4.0×40 | Ti |
| CanCCS | 134923042 | Headless Compression Screw | Φ4.0×42 | Ti |
| CanCCS | 134923044 | Headless Compression Screw | Φ4.0×44 | Ti |
| CanCCS | 134923046 | Headless Compression Screw | Φ4.0×46 | Ti |
| CanCCS | 134923048 | Headless Compression Screw | Φ4.0×48 | Ti |
| CanCCS | 134923050 | Headless Compression Screw | Φ4.0×50 | Ti |
| CanCCS | 134923055 | Headless Compression Screw | Φ4.0×55 | Ti |
| CanCCS | 134923060 | Headless Compression Screw | Φ4.0×60 | Ti |
| CanCCS | 134223020 | Headless Compression Screw | Φ4.5×20 | Ti |
| CanCCS | 134223022 | Headless Compression Screw | Φ4.5×22 | Ti |
| CanCCS | 134223024 | Headless Compression Screw | Φ4.5×24 | Ti |
| CanCCS | 134223026 | Headless Compression Screw | Φ4.5×26 | Ti |
| CanCCS | 134223028 | Headless Compression Screw | Φ4.5×28 | Ti |
| CanCCS | 134223030 | Headless Compression Screw | Φ4.5×30 | Ti |
| CanCCS | 134223032 | Headless Compression Screw | Φ4.5×32 | Ti |
| CanCCS | 134223034 | Headless Compression Screw | Φ4.5×34 | Ti |
| CanCCS | 134223035 | Headless Compression Screw | Φ4.5×35 | Ti |
| CanCCS | 134223036 | Headless Compression Screw | Φ4.5×36 | Ti |
| CanCCS | 134223038 | Headless Compression Screw | Φ4.5×38 | Ti |
| CanCCS | 134223040 | Headless Compression Screw | Φ4.5×40 | Ti |
| CanCCS | 134223042 | Headless Compression Screw | Φ4.5×42 | Ti |
| CanCCS | 134223044 | Headless Compression Screw | Φ4.5×44 | Ti |
| CanCCS | 134223045 | Headless Compression Screw | Φ4.5×45 | Ti |
| CanCCS | 134223046 | Headless Compression Screw | Φ4.5×46 | Ti |
| CanCCS | 134223048 | Headless Compression Screw | Φ4.5×48 | Ti |
| CanCCS | 134223050 | Headless Compression Screw | Φ4.5×50 | Ti |
| CanCCS | 134223055 | Headless Compression Screw | Φ4.5×55 | Ti |
| CanCCS | 134223060 | Headless Compression Screw | Φ4.5×60 | Ti |
| CanCCS | 134023025 | Headless Compression Screw | Ф5.0×25 | Ti |
| CanCCS | 134023030 | Headless Compression Screw | Ф5.0×30 | Ti |
| CanCCS | 134023035 | Headless Compression Screw | Ф5.0×35 | Ti |
| CanCCS | 134023040 | Headless Compression Screw | Ф5.0×40 | Ti |
| CanCCS | 134023045 | Headless Compression Screw | Ф5.0×45 | Ti |
| CanCCS | 134023050 | Headless Compression Screw | Ф5.0×50 | Ti |
| CanCCS | 134023055 | Headless Compression Screw | Ф5.0×55 | Ti |
| CanCCS | 134023060 | Headless Compression Screw | Ф5.0×60 | Ti |
| CanCCS | 134023065 | Headless Compression Screw | Ф5.0×65 | Ti |
| CanCCS | 134023070 | Headless Compression Screw | Ф5.0×70 | Ti |
| CanCCS | 134023075 | Headless Compression Screw | Ф5.0×75 | Ti |
| CanCCS | 134023080 | Headless Compression Screw | Ф5.0×80 | Ti |
| CanCCS | 134923016 | Headless Compression Screw | Ф4.0×16 | Ti |
| CanCCS | 134923018 | Headless Compression Screw | Ф4.0×18 | Ti |
| CanCCS | 134923020 | Headless Compression Screw | Ф4.0×20 | Ti |
| CanCCS | 134923022 | Headless Compression Screw | Ф4.0×22 | Ti |
| CanCCS | 134923024 | Headless Compression Screw | Ф4.0×24 | Ti |
| CanCCS | 134923026 | Headless Compression Screw | Ф4.0×26 | Ti |
| CanCCS | 134923028 | Headless Compression Screw | Ф4.0×28 | Ti |
| CanCCS | 134923030 | Headless Compression Screw | Ф4.0×30 | Ti |
| CanCCS | 134923032 | Headless Compression Screw | Ф4.0×32 | Ti |
| CanCCS | 134923034 | Headless Compression Screw | Ф4.0×34 | Ti |
| CanCCS | 134223020 | Headless Compression Screw | Φ4.5×20 | Ti |
| CanCCS | 134223022 | Headless Compression Screw | Φ4.5×22 | Ti |
| CanCCS | 134223024 | Headless Compression Screw | Φ4.5×24 | Ti |
| CanCCS | 134223026 | Headless Compression Screw | Φ4.5×26 | Ti |
| CanCCS | 134223028 | Headless Compression Screw | Φ4.5×28 | Ti |
| CanCCS | 134223030 | Headless Compression Screw | Φ4.5×30 | Ti |
| CanCCS | 134223032 | Headless Compression Screw | Φ4.5×32 | Ti |
| CanCCS | 134223034 | Headless Compression Screw | Φ4.5×34 | Ti |
| CanCCS | 134223035 | Headless Compression Screw | Φ4.5×35 | Ti |
| CanCCS | 134223036 | Headless Compression Screw | Φ4.5×36 | Ti |
| CanCCS | 134223038 | Headless Compression Screw | Φ4.5×38 | Ti |
| CanCCS | 134223040 | Headless Compression Screw | Φ4.5×40 | Ti |
| CanCCS | 134223042 | Headless Compression Screw | Φ4.5×42 | Ti |
| CanCCS | 134223044 | Headless Compression Screw | Φ4.5×44 | Ti |
| CanCCS | 134223045 | Headless Compression Screw | Φ4.5×45 | Ti |
| CanCCS | 134223046 | Headless Compression Screw | Φ4.5×46 | Ti |
| CanCCS | 134223048 | Headless Compression Screw | Φ4.5×48 | Ti |
| CanCCS | 134223050 | Headless Compression Screw | Φ4.5×50 | Ti |
| CanCCS | 134023025 | Headless Compression Screw | Ф5.0×25 | Ti |
| CanCCS | 134023030 | Headless Compression Screw | Ф5.0×30 | Ti |
| CanCCS | 134023035 | Headless Compression Screw | Ф5.0×35 | Ti |
| CanCCS | 134023040 | Headless Compression Screw | Ф5.0×40 | Ti |
| CanCCS | 134023045 | Headless Compression Screw | Ф5.0×45 | Ti |
| CanCCS | 134023050 | Headless Compression Screw | Ф5.0×50 | Ti |
| CanCCS | 134023055 | Headless Compression Screw | Ф5.0×55 | Ti |
| CanCCS | 134023060 | Headless Compression Screw | Ф5.0×60 | Ti |
| CanCCS | 134323340 | Headless Compression Screw | Φ6.5×40 | Ti |
| CanCCS | 134323345 | Headless Compression Screw | Φ6.5×45 | Ti |
| CanCCS | 134323350 | Headless Compression Screw | Φ6.5×50 | Ti |
| CanCCS | 134323355 | Headless Compression Screw | Φ6.5×55 | Ti |
| CanCCS | 134323360 | Headless Compression Screw | Φ6.5×60 | Ti |
| CanCCS | 134323365 | Headless Compression Screw | Φ6.5×65 | Ti |
| CanCCS | 134323370 | Headless Compression Screw | Φ6.5×70 | Ti |
| CanCCS | 134323375 | Headless Compression Screw | Φ6.5×75 | Ti |
| CanCCS | 134323380 | Headless Compression Screw | Φ6.5×80 | Ti |
| CanCCS | 134323385 | Headless Compression Screw | Φ6.5×85 | Ti |
| CanCCS | 134323390 | Headless Compression Screw | Φ6.5×90 | Ti |
| CanCCS | 134323395 | Headless Compression Screw | Φ6.5×95 | Ti |
| CanCCS | 134323400 | Headless Compression Screw | Φ6.5×100 | Ti |
| CanCCS | 134323405 | Headless Compression Screw | Φ6.5×105 | Ti |
| CanCCS | 134323410 | Headless Compression Screw | Φ6.5×110 | Ti |
| CanCCS | 134323415 | Headless Compression Screw | Φ6.5×115 | Ti |
| CanCCS | 134323420 | Headless Compression Screw | Φ6.5×120 | Ti |
| CanMFP | 132103008 | Cortex Screw | Ф2.4×8 | Ti |
| CanMFP | 132103010 | Cortex Screw | Ф2.4×10 | Ti |
| CanMFP | 132103011 | Cortex Screw | Ф2.4×11 | Ti |
| CanMFP | 132103012 | Cortex Screw | Ф2.4×12 | Ti |
| CanMFP | 132103013 | Cortex Screw | Ф2.4×13 | Ti |
| CanMFP | 132103014 | Cortex Screw | Ф2.4×14 | Ti |
| CanMFP | 132103016 | Cortex Screw | Ф2.4×16 | Ti |
| CanMFP | 132103018 | Cortex Screw | Ф2.4×18 | Ti |
| CanMFP | 132103020 | Cortex Screw | Ф2.4×20 | Ti |
| CanMFP | 132103022 | Cortex Screw | Ф2.4×22 | Ti |
| CanMFP | 132103024 | Cortex Screw | Ф2.4×24 | Ti |
| CanMFP | 132103026 | Cortex Screw | Ф2.4×26 | Ti |
| CanMFP | 132103028 | Cortex Screw | Ф2.4×28 | Ti |
| CanMFP | 132103030 | Cortex Screw | Ф2.4×30 | Ti |
| CanMFP | 132103032 | Cortex Screw | Ф2.4×32 | Ti |
| CanMFP | 132103034 | Cortex Screw | Ф2.4×34 | Ti |
| CanMFP | 132103036 | Cortex Screw | Ф2.4×36 | Ti |
| CanMFP | 132103038 | Cortex Screw | Ф2.4×38 | Ti |
| CanMFP | 132103040 | Cortex Screw | Ф2.4×40 | Ti |
| CanMFP | 132105008 | Cortex Screw | Ф2.4×8 | Ti |
| CanMFP | 132105010 | Cortex Screw | Ф2.4×10 | Ti |
| CanMFP | 132105011 | Cortex Screw | Ф2.4×11 | Ti |
| CanMFP | 132105012 | Cortex Screw | Ф2.4×12 | Ti |
| CanMFP | 132105013 | Cortex Screw | Ф2.4×13 | Ti |
| CanMFP | 132105014 | Cortex Screw | Ф2.4×14 | Ti |
| CanMFP | 132105016 | Cortex Screw | Ф2.4×16 | Ti |
| CanMFP | 132105018 | Cortex Screw | Ф2.4×18 | Ti |
| CanMFP | 132105020 | Cortex Screw | Ф2.4×20 | Ti |
| CanMFP | 132105022 | Cortex Screw | Ф2.4×22 | Ti |
| CanMFP | 132105024 | Cortex Screw | Ф2.4×24 | Ti |
| CanMFP | 132105026 | Cortex Screw | Ф2.4×26 | Ti |
| CanMFP | 132105028 | Cortex Screw | Ф2.4×28 | Ti |
| CanMFP | 132105030 | Cortex Screw | Ф2.4×30 | Ti |
| CanMFP | 132105032 | Cortex Screw | Ф2.4×32 | Ti |
| CanMFP | 132105034 | Cortex Screw | Ф2.4×34 | Ti |
| CanMFP | 132105036 | Cortex Screw | Ф2.4×36 | Ti |
| CanMFP | 132105038 | Cortex Screw | Ф2.4×38 | Ti |
| CanMFP | 132105040 | Cortex Screw | Ф2.4×40 | Ti |
| CanSFP | 132112012 | Cortex Screw, Self-tapping | Ф3.5×12 | Ti |
| CanSFP | 132112014 | Cortex Screw, Self-tapping | Ф3.5×14 | Ti |
| CanSFP | 132112016 | Cortex Screw, Self-tapping | Ф3.5×16 | Ti |
| CanSFP | 132112018 | Cortex Screw, Self-tapping | Ф3.5×18 | Ti |
| CanSFP | 132112020 | Cortex Screw, Self-tapping | Ф3.5×20 | Ti |
| CanSFP | 132112022 | Cortex Screw, Self-tapping | Ф3.5×22 | Ti |
| CanSFP | 132112024 | Cortex Screw, Self-tapping | Ф3.5×24 | Ti |
| CanSFP | 132112026 | Cortex Screw, Self-tapping | Ф3.5×26 | Ti |
| CanSFP | 132112028 | Cortex Screw, Self-tapping | Ф3.5×28 | Ti |
| CanSFP | 132112030 | Cortex Screw, Self-tapping | Ф3.5×30 | Ti |
| CanSFP | 132112032 | Cortex Screw, Self-tapping | Ф3.5×32 | Ti |
| CanSFP | 132112034 | Cortex Screw, Self-tapping | Ф3.5×34 | Ti |
| CanSFP | 132112036 | Cortex Screw, Self-tapping | Ф3.5×36 | Ti |
| CanSFP | 132112038 | Cortex Screw, Self-tapping | Ф3.5×38 | Ti |
| CanSFP | 132112040 | Cortex Screw, Self-tapping | Ф3.5×40 | Ti |
| CanSFP | 132112042 | Cortex Screw, Self-tapping | Ф3.5×42 | Ti |
| CanSFP | 132112044 | Cortex Screw, Self-tapping | Ф3.5×44 | Ti |
| CanSFP | 132112046 | Cortex Screw, Self-tapping | Ф3.5×46 | Ti |
| CanSFP | 132112048 | Cortex Screw, Self-tapping | Ф3.5×48 | Ti |
| CanSFP | 132112050 | Cortex Screw, Self-tapping | Ф3.5×50 | Ti |
| CanLFP | 133112016 | Cortex Screw, self-tapping | Ø4.5×16 | Ti |
| CanLFP | 133112018 | Cortex Screw, self-tapping | Ø4.5×18 | Ti |
| CanLFP | 133112020 | Cortex Screw, self-tapping | Ø4.5×20 | Ti |
| CanLFP | 133112022 | Cortex Screw, self-tapping | Ø4.5×22 | Ti |
| CanLFP | 133112024 | Cortex Screw, self-tapping | Ø4.5×24 | Ti |
| CanLFP | 133112026 | Cortex Screw, self-tapping | Ø4.5×26 | Ti |
| CanLFP | 133112028 | Cortex Screw, self-tapping | Ø4.5×28 | Ti |
| CanLFP | 133112030 | Cortex Screw, self-tapping | Ø4.5×30 | Ti |
| CanLFP | 133112032 | Cortex Screw, self-tapping | Ø4.5×32 | Ti |
| CanLFP | 133112034 | Cortex Screw, self-tapping | Ø4.5×34 | Ti |
| CanLFP | 133112036 | Cortex Screw, self-tapping | Ø4.5×36 | Ti |
| CanLFP | 133112038 | Cortex Screw, self-tapping | Ø4.5×38 | Ti |
| CanLFP | 133112040 | Cortex Screw, self-tapping | Ø4.5×40 | Ti |
| CanLFP | 133112042 | Cortex Screw, self-tapping | Ø4.5×42 | Ti |
| CanLFP | 133112044 | Cortex Screw, self-tapping | Ø4.5×44 | Ti |
| CanLFP | 133112046 | Cortex Screw, self-tapping | Ø4.5×46 | Ti |
| CanLFP | 133112048 | Cortex Screw, self-tapping | Ø4.5×48 | Ti |
| CanLFP | 133112050 | Cortex Screw, self-tapping | Ø4.5×50 | Ti |
| CanLFP | 133112052 | Cortex Screw, self-tapping | Ø4.5×52 | Ti |
| CanLFP | 133112054 | Cortex Screw, self-tapping | Ø4.5×54 | Ti |
| CanLFP | 133112056 | Cortex Screw, self-tapping | Ø4.5×56 | Ti |
| CanLFP | 133112058 | Cortex Screw, self-tapping | Ø4.5×58 | Ti |
| CanLFP | 133112060 | Cortex Screw, self-tapping | Ø4.5×60 | Ti |
| CanSFP | 132117212 | Cancellous Bone Screw, fully threaded | Ø4.0×12 | Ti |
| CanSFP | 132117214 | Cancellous Bone Screw, fully threaded | Ø4.0×14 | Ti |
| CanSFP | 132117216 | Cancellous Bone Screw, fully threaded | Ø4.0×16 | Ti |
| CanSFP | 132117218 | Cancellous Bone Screw, fully threaded | Ø4.0×18 | Ti |
| CanSFP | 132117220 | Cancellous Bone Screw, fully threaded | Ø4.0×20 | Ti |
| CanSFP | 132117222 | Cancellous Bone Screw, fully threaded | Ø4.0×22 | Ti |
| CanSFP | 132117224 | Cancellous Bone Screw, fully threaded | Ø4.0×24 | Ti |
| CanSFP | 132117226 | Cancellous Bone Screw, fully threaded | Ø4.0×26 | Ti |
| CanSFP | 132117228 | Cancellous Bone Screw, fully threaded | Ø4.0×28 | Ti |
| CanSFP | 132117230 | Cancellous Bone Screw, fully threaded | Ø4.0×30 | Ti |
| CanSFP | 132117232 | Cancellous Bone Screw, fully threaded | Ø4.0×32 | Ti |
| CanSFP | 132117234 | Cancellous Bone Screw, fully threaded | Ø4.0×34 | Ti |
| CanSFP | 132117236 | Cancellous Bone Screw, fully threaded | Ø4.0×36 | Ti |
| CanSFP | 132117238 | Cancellous Bone Screw, fully threaded | Ø4.0×38 | Ti |
| CanSFP | 132117240 | Cancellous Bone Screw, fully threaded | Ø4.0×40 | Ti |
| CanSFP | 132117242 | Cancellous Bone Screw, fully threaded | Ø4.0×42 | Ti |
| CanSFP | 132117244 | Cancellous Bone Screw, fully threaded | Ø4.0×44 | Ti |
| CanSFP | 132117246 | Cancellous Bone Screw, fully threaded | Ø4.0×46 | Ti |
| CanSFP | 132117248 | Cancellous Bone Screw, fully threaded | Ø4.0×48 | Ti |
| CanSFP | 132117250 | Cancellous Bone Screw, fully threaded | Ø4.0×50 | Ti |
| CanSFP | 132117252 | Cancellous Bone Screw, fully threaded | Ø4.0×52 | Ti |
| CanSFP | 132115020 | Cancellous Bone Screw, partially threaded | Ø4.0×20 | Ti |
| CanSFP | 132115022 | Cancellous Bone Screw, partially threaded | Ø4.0×22 | Ti |
| CanSFP | 132115024 | Cancellous Bone Screw, partially threaded | Ø4.0×24 | Ti |
| CanSFP | 132115026 | Cancellous Bone Screw, partially threaded | Ø4.0×26 | Ti |
| CanSFP | 132115028 | Cancellous Bone Screw, partially threaded | Ø4.0×28 | Ti |
| CanSFP | 132115030 | Cancellous Bone Screw, partially threaded | Ø4.0×30 | Ti |
| CanSFP | 132115032 | Cancellous Bone Screw, partially threaded | Ø4.0×32 | Ti |
| CanSFP | 132115034 | Cancellous Bone Screw, partially threaded | Ø4.0×34 | Ti |
| CanSFP | 132115036 | Cancellous Bone Screw, partially threaded | Ø4.0×36 | Ti |
| CanSFP | 132115038 | Cancellous Bone Screw, partially threaded | Ø4.0×38 | Ti |
| CanSFP | 132115040 | Cancellous Bone Screw, partially threaded | Ø4.0×40 | Ti |
| CanSFP | 132115042 | Cancellous Bone Screw, partially threaded | Ø4.0×42 | Ti |
| CanSFP | 132115044 | Cancellous Bone Screw, partially threaded | Ø4.0×44 | Ti |
| CanSFP | 132115046 | Cancellous Bone Screw, partially threaded | Ø4.0×46 | Ti |
| CanSFP | 132115048 | Cancellous Bone Screw, partially threaded | Ø4.0×48 | Ti |
| CanSFP | 132115050 | Cancellous Bone Screw, partially threaded | Ø4.0×50 | Ti |
| CanLFP | 133117050 | Cancellous Bone Screw, fully threaded | Ø6.5×50 | Ti |
| CanLFP | 133117055 | Cancellous Bone Screw, fully threaded | Ø6.5×55 | Ti |
| CanLFP | 133117060 | Cancellous Bone Screw, fully threaded | Ø6.5×60 | Ti |
| CanLFP | 133117065 | Cancellous Bone Screw, fully threaded | Ø6.5×65 | Ti |
| CanLFP | 133117070 | Cancellous Bone Screw, fully threaded | Ø6.5×70 | Ti |
| CanLFP | 133117075 | Cancellous Bone Screw, fully threaded | Ø6.5×75 | Ti |
| CanLFP | 133117080 | Cancellous Bone Screw, fully threaded | Ø6.5×80 | Ti |
| CanLFP | 133117085 | Cancellous Bone Screw, fully threaded | Ø6.5×85 | Ti |
| CanLFP | 133117090 | Cancellous Bone Screw, fully threaded | Ø6.5×90 | Ti |
| CanLFP | 133117095 | Cancellous Bone Screw, fully threaded | Ø6.5×95 | Ti |
| CanLFP | 133117100 | Cancellous Bone Screw, fully threaded | Ø6.5×100 | Ti |
| CanLFP | 133117105 | Cancellous Bone Screw, fully threaded | Ø6.5×105 | Ti |
| CanLFP | 133117110 | Cancellous Bone Screw, fully threaded | Ø6.5×110 | Ti |
| CanLFP | 133117115 | Cancellous Bone Screw, fully threaded | Ø6.5×115 | Ti |
| CanLFP | 133117120 | Cancellous Bone Screw, fully threaded | Ø6.5×120 | Ti |
| CanLFP | 133115050 | Cancellous Bone Screw, partially threaded | Ø6.5×50 | Ti |
| CanLFP | 133115055 | Cancellous Bone Screw, partially threaded | Ø6.5×55 | Ti |
| CanLFP | 133115060 | Cancellous Bone Screw, partially threaded | Ø6.5×60 | Ti |
| CanLFP | 133115065 | Cancellous Bone Screw, partially threaded | Ø6.5×65 | Ti |
| CanLFP | 133115070 | Cancellous Bone Screw, partially threaded | Ø6.5×70 | Ti |
| CanLFP | 133115075 | Cancellous Bone Screw, partially threaded | Ø6.5×75 | Ti |
| CanLFP | 133115080 | Cancellous Bone Screw, partially threaded | Ø6.5×80 | Ti |
| CanLFP | 133115085 | Cancellous Bone Screw, partially threaded | Ø6.5×85 | Ti |
| CanLFP | 133115090 | Cancellous Bone Screw, partially threaded | Ø6.5×90 | Ti |
| CanLFP | 133115095 | Cancellous Bone Screw, partially threaded | Ø6.5×95 | Ti |
| CanLFP | 133115100 | Cancellous Bone Screw, partially threaded | Ø6.5×100 | Ti |
| CanLFP | 133115105 | Cancellous Bone Screw, partially threaded | Ø6.5×105 | Ti |
| CanLFP | 133115110 | Cancellous Bone Screw, partially threaded | Ø6.5×110 | Ti |
| CanLFP | 133115115 | Cancellous Bone Screw, partially threaded | Ø6.5×115 | Ti |
| CanLFP | 133115120 | Cancellous Bone Screw, partially threaded | Ø6.5×120 | Ti |
| CanSLP | 122245103 | Distal Medial Humeral Locking Plate | 3 Holes, Left | Ti |
| CanSLP | 122245105 | Distal Medial Humeral Locking Plate | 5 Holes, Left | Ti |
| CanSLP | 122245107 | Distal Medial Humeral Locking Plate | 7 Holes, Left | Ti |
| CanSLP | 122245109 | Distal Medial Humeral Locking Plate | 9 Holes, Left | Ti |
| CanSLP | 122245114 | Distal Medial Humeral Locking Plate | 14 Holes, Left | Ti |
| CanSLP | 122245203 | Distal Medial Humeral Locking Plate | 3 Holes, Right | Ti |
| CanSLP | 122245205 | Distal Medial Humeral Locking Plate | 5 Holes, Right | Ti |
| CanSLP | 122245207 | Distal Medial Humeral Locking Plate | 7 Holes, Right | Ti |
| CanSLP | 122245209 | Distal Medial Humeral Locking Plate | 9 Holes, Right | Ti |
| CanSLP | 122245214 | Distal Medial Humeral Locking Plate | 14 Holes, Right | Ti |
| CanSLP | 122264103 | LCP Superior Anterior Clavicle with Lateral Extension Locking Plate | 3 Holes, Left | Ti |
| CanSLP | 122264104 | LCP Superior Anterior Clavicle with Lateral Extension Locking Plate | 4 Holes, Left | Ti |
| CanSLP | 122264105 | LCP Superior Anterior Clavicle with Lateral Extension Locking Plate | 5 Holes, Left | Ti |
| CanSLP | 122264106 | LCP Superior Anterior Clavicle with Lateral Extension Locking Plate | 6 Holes, Left | Ti |
| CanSLP | 122264107 | LCP Superior Anterior Clavicle with Lateral Extension Locking Plate | 7 Holes, Left | Ti |
| CanSLP | 122264108 | LCP Superior Anterior Clavicle with Lateral Extension Locking Plate | 8 Holes, Left | Ti |
| CanSLP | 122264203 | LCP Superior Anterior Clavicle with Lateral Extension Locking Plate | 3 Holes, Right | Ti |
| CanSLP | 122264204 | LCP Superior Anterior Clavicle with Lateral Extension Locking Plate | 4 Holes, Right | Ti |
| CanSLP | 122264205 | LCP Superior Anterior Clavicle with Lateral Extension Locking Plate | 5 Holes, Right | Ti |
| CanSLP | 122264206 | LCP Superior Anterior Clavicle with Lateral Extension Locking Plate | 6 Holes, Right | Ti |
| CanSLP | 122264207 | LCP Superior Anterior Clavicle with Lateral Extension Locking Plate | 7 Holes, Right | Ti |
| CanSLP | 122264208 | LCP Superior Anterior Clavicle with Lateral Extension Locking Plate | 8 Holes, Right | Ti |
| CanCCS | 134713008 | Headless Compression Screw | Ф2.5×8 | Ti |
| CanCCS | 134713009 | Headless Compression Screw | Ф2.5×9 | Ti |
| CanCCS | 134713010 | Headless Compression Screw | Ф2.5×10 | Ti |
| CanCCS | 134713011 | Headless Compression Screw | Ф2.5×11 | Ti |
| CanCCS | 134713012 | Headless Compression Screw | Ф2.5×12 | Ti |
| CanCCS | 134713013 | Headless Compression Screw | Ф2.5×13 | Ti |
| CanCCS | 134713014 | Headless Compression Screw | Ф2.5×14 | Ti |
| CanCCS | 134713016 | Headless Compression Screw | Ф2.5×16 | Ti |
| CanCCS | 134713018 | Headless Compression Screw | Ф2.5×18 | Ti |
| CanCCS | 134713020 | Headless Compression Screw | Ф2.5×20 | Ti |
| CanCCS | 134713022 | Headless Compression Screw | Ф2.5×22 | Ti |
| CanCCS | 134713024 | Headless Compression Screw | Ф2.5×24 | Ti |
| CanCCS | 134713026 | Headless Compression Screw | Ф2.5×26 | Ti |
| CanCCS | 134713028 | Headless Compression Screw | Ф2.5×28 | Ti |
| CanCCS | 134713030 | Headless Compression Screw | Ф2.5×30 | Ti |
| CanLLP | 123221005 | 4.5mm Locking Compression Plate(broad,LC-LCP） | 5 Holes | Ti |
| CanLLP | 123221006 | 4.5mm Locking Compression Plate(broad,LC-LCP） | 6 Holes | Ti |
| CanLLP | 123221007 | 4.5mm Locking Compression Plate(broad,LC-LCP） | 7 Holes | Ti |
| CanLLP | 123221008 | 4.5mm Locking Compression Plate(broad,LC-LCP） | 8 Holes | Ti |
| CanLLP | 123221009 | 4.5mm Locking Compression Plate(broad,LC-LCP） | 9 Holes | Ti |
| CanLLP | 123221010 | 4.5mm Locking Compression Plate(broad,LC-LCP） | 10 Holes | Ti |
| CanLLP | 123221011 | 4.5mm Locking Compression Plate(broad,LC-LCP） | 11 Holes | Ti |
| CanLLP | 123221012 | 4.5mm Locking Compression Plate(broad,LC-LCP） | 12 Holes | Ti |
| CanLLP | 123221013 | 4.5mm Locking Compression Plate(broad,LC-LCP） | 13 Holes | Ti |
| CanLLP | 123221014 | 4.5mm Locking Compression Plate(broad,LC-LCP） | 14 Holes | Ti |
| CanLLP | 123221015 | 4.5mm Locking Compression Plate(broad,LC-LCP） | 15 Holes | Ti |
| CanLLP | 123221016 | 4.5mm Locking Compression Plate(broad,LC-LCP） | 16 Holes | Ti |
| CanLLP | 123221017 | 4.5mm Locking Compression Plate(broad,LC-LCP） | 17 Holes | Ti |
| CanLLP | 123221018 | 4.5mm Locking Compression Plate(broad,LC-LCP） | 18 Holes | Ti |
| CanSLP | 122261008 | LCP Distal Radius Locking Plate | 8 Holes | Ti |
| CanSLP | 122261010 | LCP Distal Radius Locking Plate | 10 Holes | Ti |
| CanSLP | 122261012 | LCP Distal Radius Locking Plate | 12 Holes | Ti |
