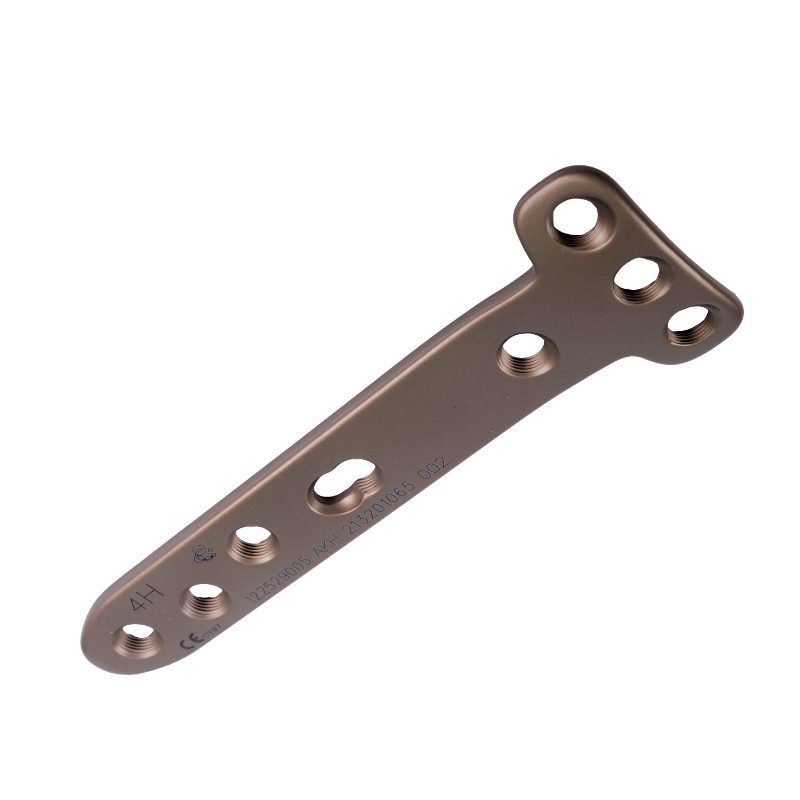

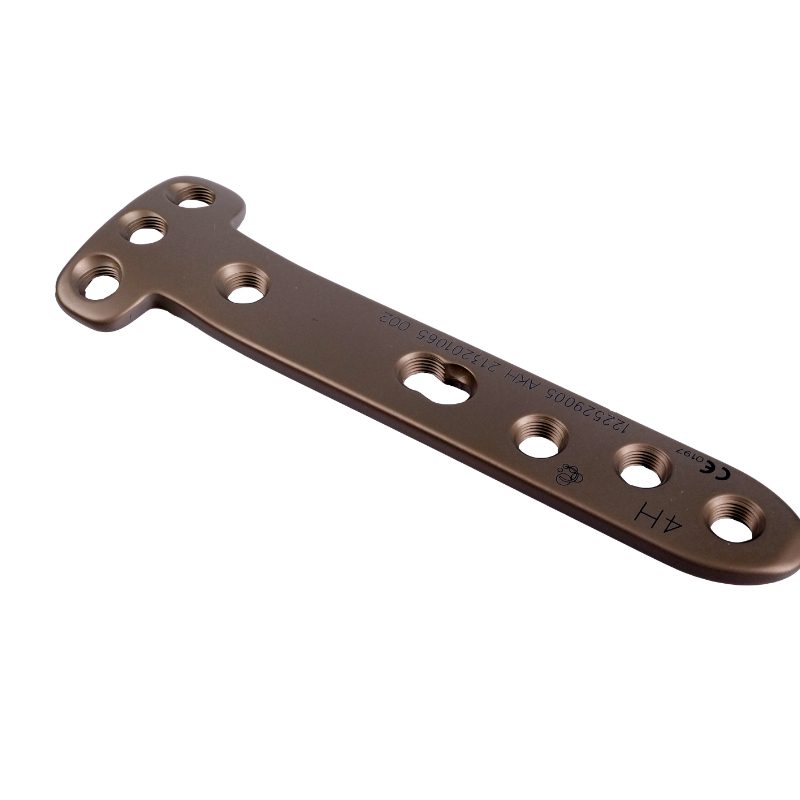

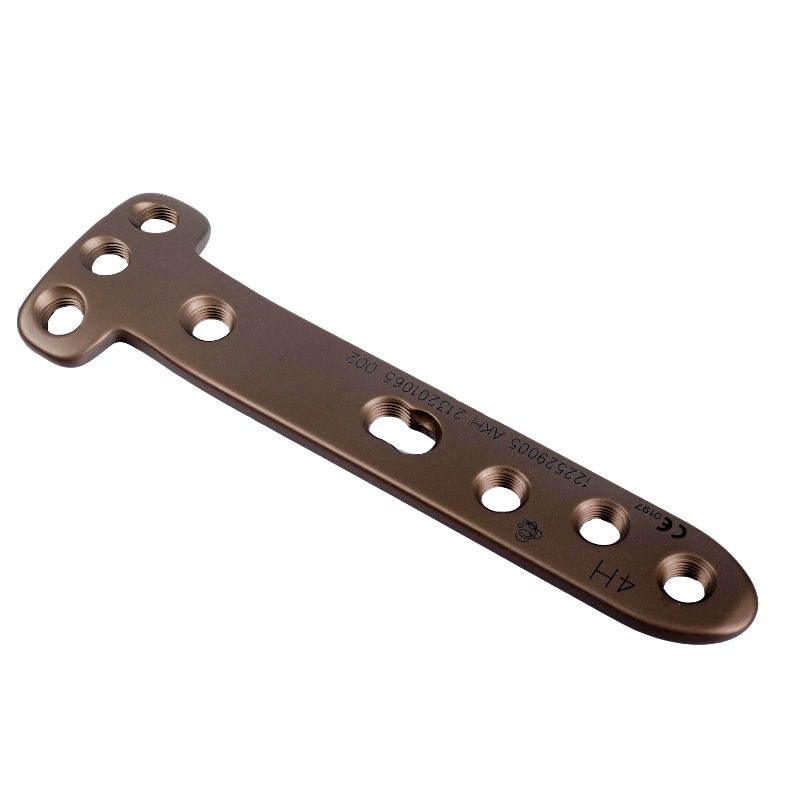

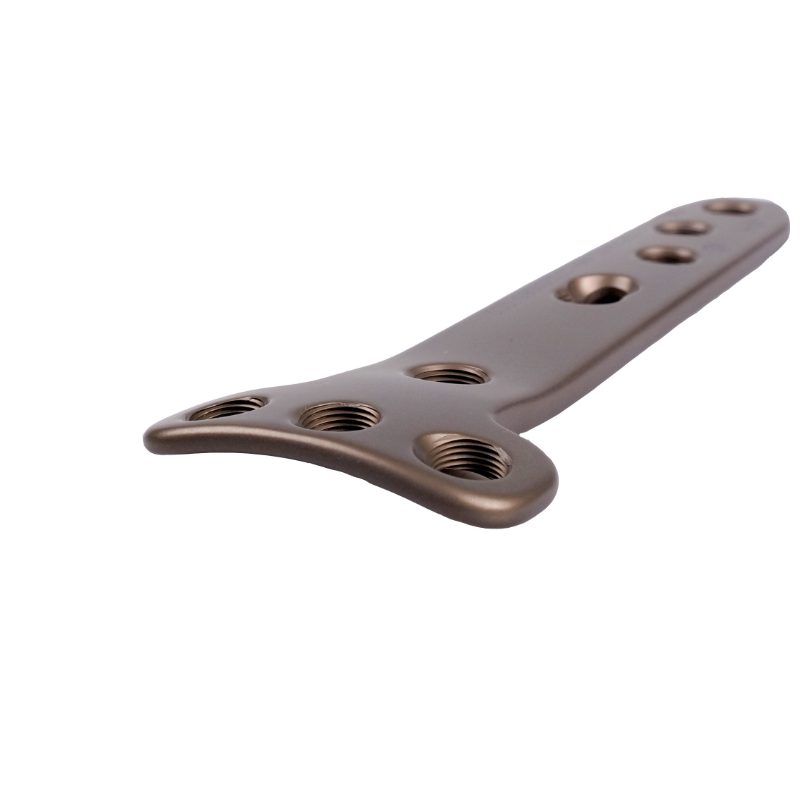

The LCP Proximal Medial Tibia Locking Plate is a bone plate that is used for the treatment of fractures and other injuries to the proximal medial tibia. It is designed to fit as closely as possible to the bone surface, minimizing irritation to soft tissues. The plate features multiple Kirschner pinholes, which can be used to fixate the plate in place during surgery, as well as for snacks or meniscus suture repair.
One of the key design features of the LCP Proximal Medial Tibia Locking Plate is the design of the head nail hole. This ensures that the subchondral nail creates a raft effect to support and maintain the articular surface repair. Additionally, the stem standard pressure hole design allows for the application of axial pressure, making the bone plate more closely fit the bone surface.
The 3.5mm locking design of the LCP Proximal Medial Tibia Locking Plate allows for better grasp of the fracture pieces. This feature, combined with the plate’s profile model, make it an effective solution for the treatment of metaphyseal fractures of the medial tibial plateau, split or compression fractures of the medial tibial plateau, and splitting of the medial tibial plateau with compression fracture.
The LCP Proximal Medial Tibia Locking Plate is manufactured from high-quality titanium alloy, which is both strong and lightweight. This allows for easier handling during surgery, while still providing the necessary stability and support for the injured bone.
During surgery, the LCP Proximal Medial Tibia Locking Plate is fixed in place using screws that are inserted through the combi-holes on the plate. These screws can be inserted at a variety of angles to provide optimal support for the injured bone. The non-locking portion of the distal LCP combi-holes can be implanted with cortical or 4.0mm cancellous screws without protrusion and with good compression of the fracture mass.
Another advantage of the LCP Proximal Medial Tibia Locking Plate is its shield-shaped low-profile design at the distal end. This design minimizes the bulge of the plate on the medial malleolus and reduces irritation to soft tissues.
In conclusion, the LCP Proximal Medial Tibia Locking Plate is a versatile and effective bone plate that can be used to treat a variety of fractures and injuries to the proximal medial tibia. Its unique design features, such as the head nail hole and stem standard pressure hole, make it an ideal choice for surgeons looking for a high-quality, reliable solution for their patients. Additionally, the plate’s profile model and shield-shaped low-profile design ensure minimal irritation to soft tissues during surgery and recovery.
| CanLLP | Proximal Tibial Locking Plate | 11Holes | 265mm | Right | Ti | PC | 123233211 |
| CanLLP | Proximal Tibial Locking Plate | 13Holes | 305mm | Right | Ti | PC | 123233213 |
