CanSLP Distal Lateral Tibial Locking Plate

Get In Touch With a Sales Consultant
Customized Products

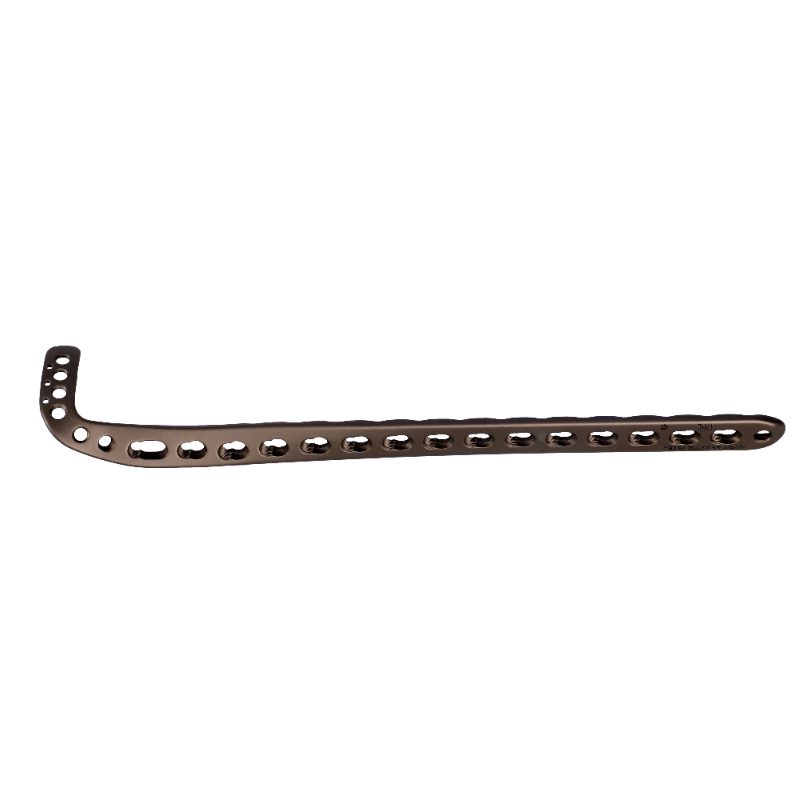

CanSLP Distal Lateral Tibial Locking Plate is a medical device designed to treat fractures in the distal (lower) part of the tibia bone on the lateral (outer) side. This locking plate is made of high-quality materials and has a specific design that allows for optimal fixation and alignment of the broken bone.

CanSLP Distal Lateral Tibial Locking Plate is available in various sizes and hole configurations to suit individual patient needs. For example, the plate comes in a 3-hole configuration with a length of 47mm for the proximal end and a 5-hole configuration with a length of 72mm for the distal end. This variability ensures that the plate can be customized to fit different patient anatomies and fractures.

CanSLP Distal Lateral Tibial Locking Plate is anatomically shaped to closely match the contour of the bone and is designed to be placed on the posterior (back) aspect of the distal tibia. This placement allows for a posterior approach and minimizes soft tissue irritation, which can improve patient outcomes.

In addition, the plate has two Kirschner wire holes that can be used to temporarily fixate the plate during surgery. The plate also has a low profile design that reduces soft tissue irritation and conforms to the four-column theory of the distal tibia.

The distal end of CanSLP plate has a unique leaf-shaped design that allows for independent placement of a tension screw without interfering with the plate. This feature enables a stable fixation of the bone fragment while also allowing for compression of the fracture site, which promotes healing.

CanSLP Distal Lateral Tibial Locking Plate is indicated for fractures of the distal tibia on the posterior column. It is an excellent option for patients who need surgical fixation of their fractures and may benefit from a posterior approach.

In conclusion, CanSLP Distal Lateral Tibial Locking Plate is a high-quality medical device designed to provide stable fixation and alignment of fractures in the distal tibia on the lateral side. Its unique design and anatomical shape make it an excellent choice for surgeons who want to achieve optimal outcomes for their patients. CanSLP plate is a reliable and versatile solution for treating distal tibial fractures, offering superior fixation and promoting faster healing times.

CanSLP Distal Lateral Tibial Locking Plate 5Holes 80mm Left Ti PC 122235105
CanSLP Distal Lateral Tibial Locking Plate 7Holes 106mm Left Ti PC 122235107
CanSLP Distal Lateral Tibial Locking Plate 9Holes 132mm Left Ti PC 122235109
CanSLP Distal Lateral Tibial Locking Plate 11Holes 158mm Left Ti PC 122235111
CanSLP Distal Lateral Tibial Locking Plate 13Holes 184mm Left Ti PC 122235113
CanSLP Distal Lateral Tibial Locking Plate 15Holes 210mm Left Ti PC 122235115
CanSLP Distal Lateral Tibial Locking Plate 17Holes 236mm Left Ti PC 122235117
CanSLP Distal Lateral Tibial Locking Plate 19Holes 262mm Left Ti PC 122235119
CanSLP Distal Lateral Tibial Locking Plate 21Holes 288mm Left Ti PC 122235121
CanSLP Distal Lateral Tibial Locking Plate 5Holes 80mm Right Ti PC 122235205
CanSLP Distal Lateral Tibial Locking Plate 7Holes 106mm Right Ti PC 122235207
CanSLP Distal Lateral Tibial Locking Plate 9Holes 132mm Right Ti PC 122235209
CanSLP Distal Lateral Tibial Locking Plate 11Holes 158mm Right Ti PC 122235211
CanSLP Distal Lateral Tibial Locking Plate 13Holes 184mm Right Ti PC 122235213
CanSLP Distal Lateral Tibial Locking Plate 15Holes 210mm Right Ti PC 122235215
CanSLP Distal Lateral Tibial Locking Plate 17Holes 236mm Right Ti PC 122235217
CanSLP Distal Lateral Tibial Locking Plate 19Holes 262mm Right Ti PC 122235219
CanSLP Distal Lateral Tibial Locking Plate 21Holes 288mm Right Ti PC 122235221
Material

Titanium

FAQ

Q: Are you trading company or manufacturer?
A: We are manufacturer since 1994. Our location is in Jinhua, Zhejiang Province, East China. 2 hours by high-speed train from Shanghai.

Q: Do you have training course for your product?
A: Yes, we have monthly training workshop held by our product specialist for our distributor, also we welcome our distributor to held workshop locally.

Q: What is your product range?
A: We mainly produce orthopedic implants and instrument for trauma and spine, we also involve in sports medicine. Currently our R&D team is developing
implants for oral and maxillofacial surgery, will be available soon.

Q: How is the product quality? Do you have any Certificate? What is your regions of sales?
A: Our products are approved by CE/ISO13485/US FDA. At present our main overseas markets are in Asia, South America and Europe

Q: Are your seeking for regional distribution?
A: Yes we are looking for and welcome distribution. Please contact us for discussion if you are interested to become our distributor.

Q: How do you transport the goods? How long is delivery time?
A: We use DHL/FedEx for the delivery. Generally 7-15 days if stock available and 30-45 days if regular production needed.
Shipping time depending on order quantity, product type, and other order factors and requirements.

Q: It’s samples available? Free or extra?
A: We can accept sample order. With an extra price.

Q: Do you have any OEM service?
A: We can offer OEM service. Products can be made-to-order and with special requirements.

Q: Does your company has Quality Assurance System?
A:Canwell has established a complete Quality Assurance System to continuously fulfill the requirements according to ISO9001, 13485, QSR820, CE.
Ranging from material procurement to design development and automated production processes.
