2.4/2.7 Locking Fragment Plating System Distal Radius Volar Locking Plate

Categories: , ,
Get In Touch With a Sales Consultant
Customized Products

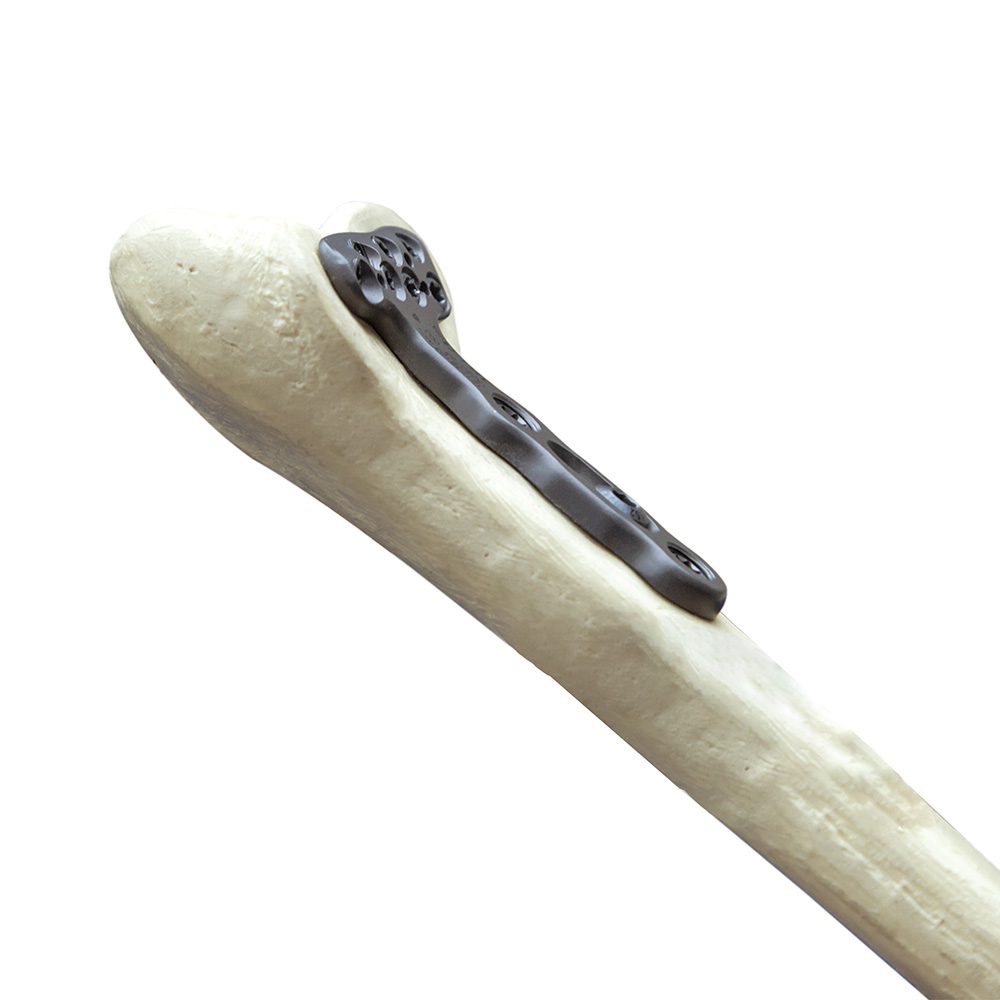

Canwell’s 2.4/2.7 Locking Fragment Plating System Distal Radius Volar Locking Plate is a specially designed bone plate used to treat intra-articular and extra-articular fractures of the distal radius, distal radius osteotomy, and distal radius combined with radial shaft fracture.

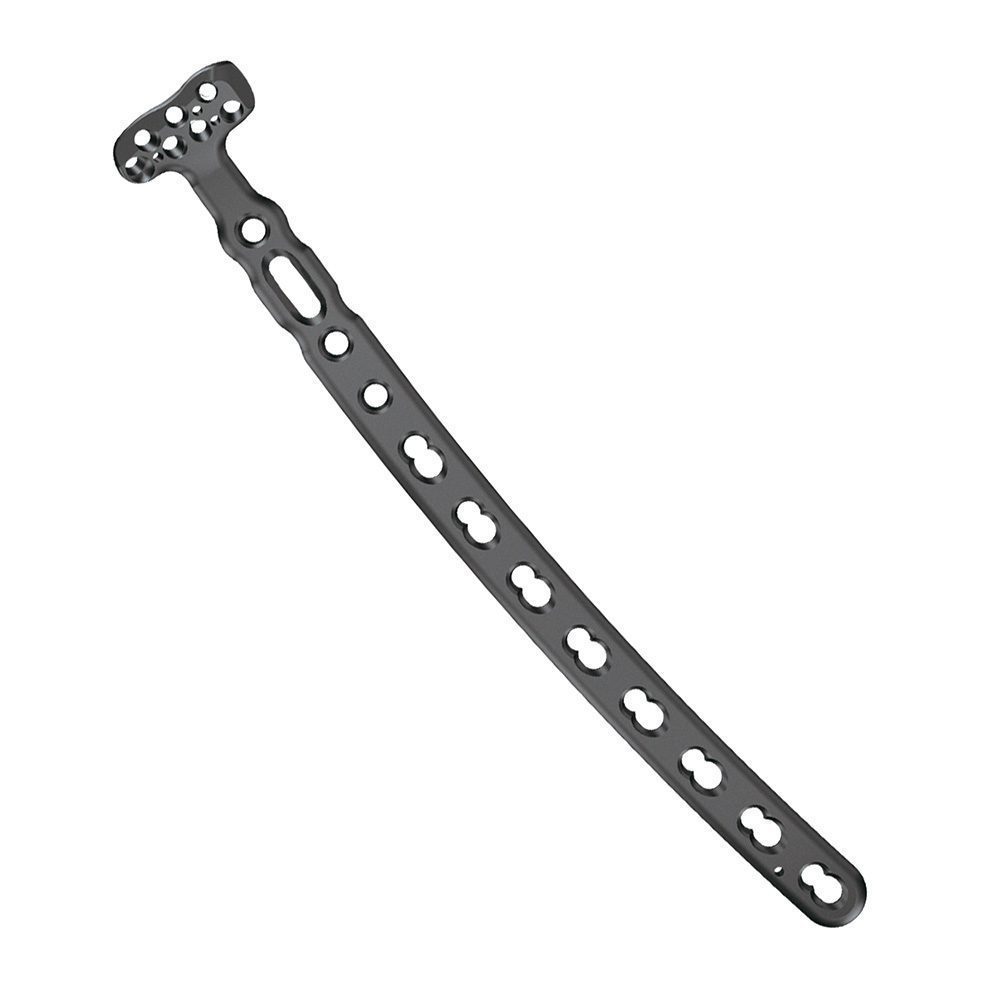

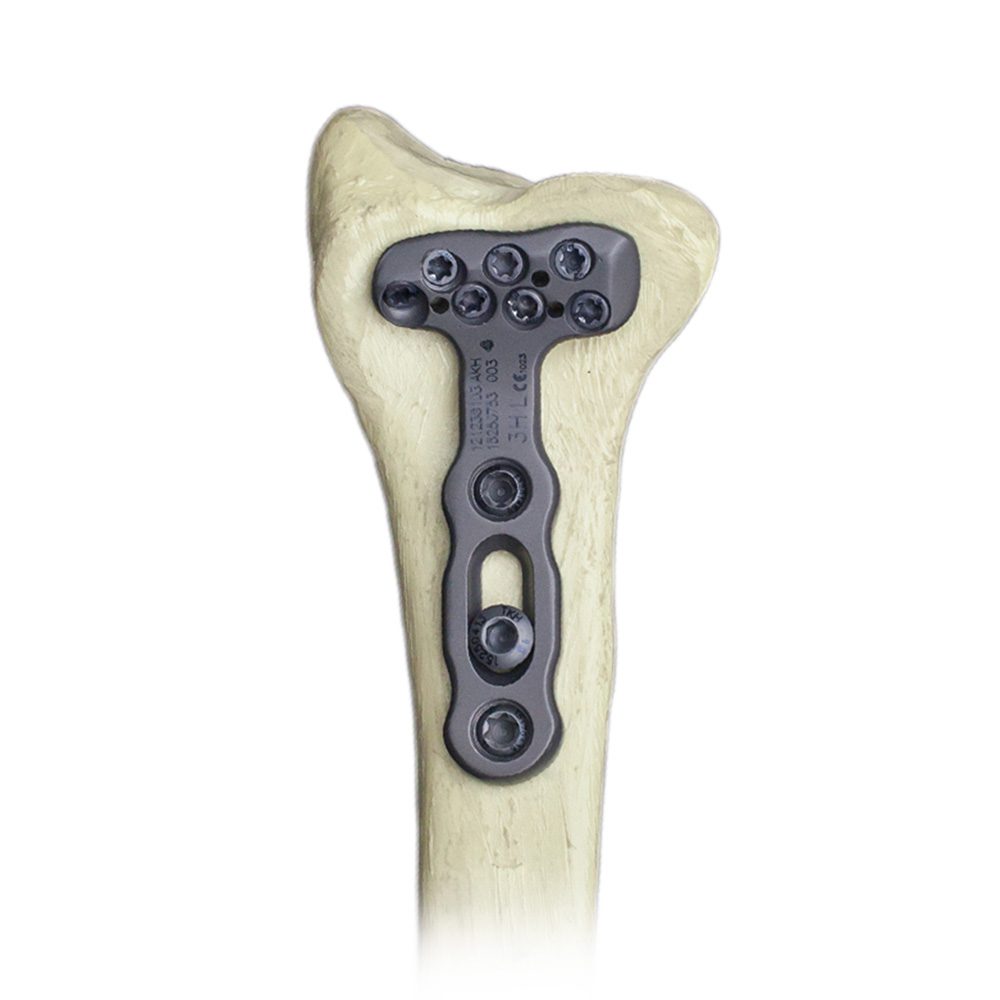

The plate’s anatomical design is highly matched to the anatomy of the distal radius, fitting the “watershed” of the distal radius of the volar to provide the strongest support for the volar. Additionally, the extra-long design of the plate allows it to be used in cases of distal radius combined with radial shaft fracture.

The oval shape of the shaft and the design of the combined hole make the plate convenient for compression and adjustment. The plate is suitable for 2.4/2.7mm locking screws and 3.5mm locking or cortical bone screws. Multiple K-wire holes at the distal end can be used to determine the position of the bone plate and the distribution of screws.

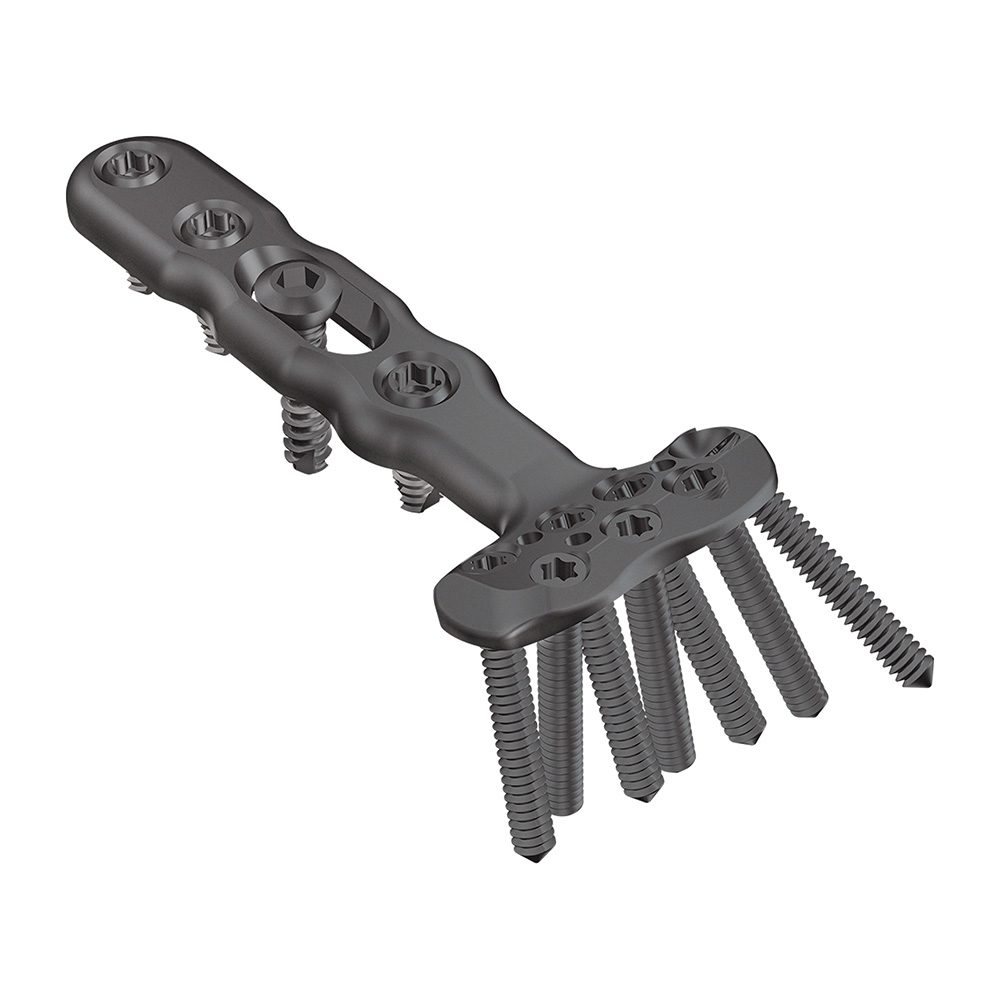

The plate features a distal cross-polymerized screw row that constitutes a three-dimensional scaffold, providing excellent support for the subchondral bone. Additionally, the design of the plate allows for the specific screw orientation needed to grasp the radial styloid.

Overall, Canwell’s 2.4/2.7 Locking Fragment Plating System Distal Radius Volar Locking Plate offers numerous features and advantages for the treatment of distal radius fractures. Its anatomical design, combined hole, and extra-long size make it a versatile and convenient option for orthopedic surgeons.

Anatomic Distal Radius Volar Locking Plate 3 Holes 51mm Left Ti PC 121238103
Anatomic Distal Radius Volar Locking Plate 4 Holes 56.6mm Left Ti PC 121238104
Anatomic Distal Radius Volar Locking Plate 7 Holes 59mm Left Ti PC 121238107
Anatomic Distal Radius Volar Locking Plate 10 Holes 140mm Left Ti PC 121238110
Anatomic Distal Radius Volar Locking Plate 12 Holes 175mm Left Ti PC 121238112
Anatomic Distal Radius Volar Locking Plate 3 Holes 51mm Right Ti PC 121238203
Anatomic Distal Radius Volar Locking Plate 4 Holes 56.6mm Right Ti PC 121238204
Anatomic Distal Radius Volar Locking Plate 7 Holes 59mm Right Ti PC 121238207
Anatomic Distal Radius Volar Locking Plate 10 Holes 140mm Right Ti PC 121238210
Material

Titanium

FAQ

Q: Are you trading company or manufacturer?
A: We are manufacturer since 1994. Our location is in Jinhua, Zhejiang Province, East China. 2 hours by high-speed train from Shanghai.

Q: Do you have training course for your product?
A: Yes, we have monthly training workshop held by our product specialist for our distributor, also we welcome our distributor to held workshop locally.

Q: What is your product range?
A: We mainly produce orthopedic implants and instrument for trauma and spine, we also involve in sports medicine. Currently our R&D team is developing
implants for oral and maxillofacial surgery, will be available soon.

Q: How is the product quality? Do you have any Certificate? What is your regions of sales?
A: Our products are approved by CE/ISO13485/US FDA. At present our main overseas markets are in Asia, South America and Europe

Q: Are your seeking for regional distribution?
A: Yes we are looking for and welcome distribution. Please contact us for discussion if you are interested to become our distributor.

Q: How do you transport the goods? How long is delivery time?
A: We use DHL/FedEx for the delivery. Generally 7-15 days if stock available and 30-45 days if regular production needed.
Shipping time depending on order quantity, product type, and other order factors and requirements.

Q: It’s samples available? Free or extra?
A: We can accept sample order. With an extra price.

Q: Do you have any OEM service?
A: We can offer OEM service. Products can be made-to-order and with special requirements.

Q: Does your company has Quality Assurance System？
A：Canwell has established a complete Quality Assurance System to continuously fulfill the requirements according to ISO9001, 13485, QSR820, CE.
Ranging from material procurement to design development and automated production processes.
